Sharp 32SF56B User Manual

PWB-D: DUNTKB572WEV0
2 LINE Y/C UNIT
RESISTORS
[M-Ox.··· Metal Oxide, M-Film ··· Metal Film]
CAPACITORS
[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]
MISCELLANEOUS PARTS
MISCELLANEOUS PARTS
SUPPLIED ACCESSORIES
Ref. No. Part No.  Description Code
C1408 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C1409 VCEA0A1CW476M+ X 47 16V EL. AA
C1410 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C1411 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C1412 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C1413 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C1414 VCE9GA1HW105M+ X 1 50V EL. AB
C1415 VCCCCY1HH120JY X 12p 50V Ceramic AA
C1416 VCCCCY1HH3R0CY X 3p 50V Ceramic AA
C1417 VCCCCY1HH270JY X 27p 50V Ceramic AA
C1418 VCCCCY1HH120JY X 12p 50V Ceramic AA
C1419 VCCCCY1HH3R0CY X 3p 50V Ceramic AA
C1420 VCCCCY1HH270JY X 27p 50V Ceramic AA
C1423 VCFYFA1HA474J+ X 0.47 50V Mylar AB
C1424 VCEA0A1CW107M+ X 100 16V EL. AA
C1425 VCCCCY1HH820JY X 82p 50V Ceramic AA
C1429 VCEA0A1CW107M+ X 100 16V EL. AA
C1430 VCKYCY1CB104KY X 0.1 16V Ceramic AA
C1431 VCKYCY1HB103KY X 0.01 50V Ceramic AA
C1432 VCKYCY1HB103KY X 0.01 50V Ceramic AA
R1401 VRS-CY1JF821JY X 820 1/16W M-Ox. AA
R1402 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R1403 VRS-CY1JF361JY X 360 1/16W M-Ox. AA
R1415 VRS-CY1JF391JY X 390 1/16W M-Ox. AA
R1416 VRS-CY1JF102JY X 1k 1/16W M-Ox. AA
R1417 VRS-CY1JF152JY X 1.5k 1/16W M-Ox. AA
R1421 VRS-CY1JF152FY X 1.5k 1/16W M-Ox. AA
R1423 VRS-CY1JF102FY X 1k 1/16W M-Ox. AA
R1427 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R1428 VRD-RA2BE332JY X 3.3k 1/8W Carbon AA
R1429 VRS-CY1JF000JY X 00 1/16W M-Ox. AA
R1430 VRS-CY1JF151JY X 150 1/16W M-Ox. AA
P1401 QPLGZ0810CEZZ X plug 32" AD
SP1 VSP1206PB708A X speaker AL
SP2 VSP1206PB708A X speaker AL
QCNW-B174WJZZ X Wire (SPEAKER) AF
QCNW-B175WJZZ X Wire (CJ) AE
QCNW-B176WJZZ X Wire (N) AE
TINS-C432WJZZ X OPERATION MANUAL AG
RRMCGA447WJSA X Infrared R-C Unit AT
TGAN-A216WJN1 X WARRANTY CARD AC
Ref. No. Part No.  Description Code
SPAKCC632WJZZ X Packing Case BC
SPAKP0110GJZZ X Buffer Material AG
SPAKXA190WJZZ X Wrapping Sheet AY
SSAKA0101GJZZ X Wrapping Sack AC

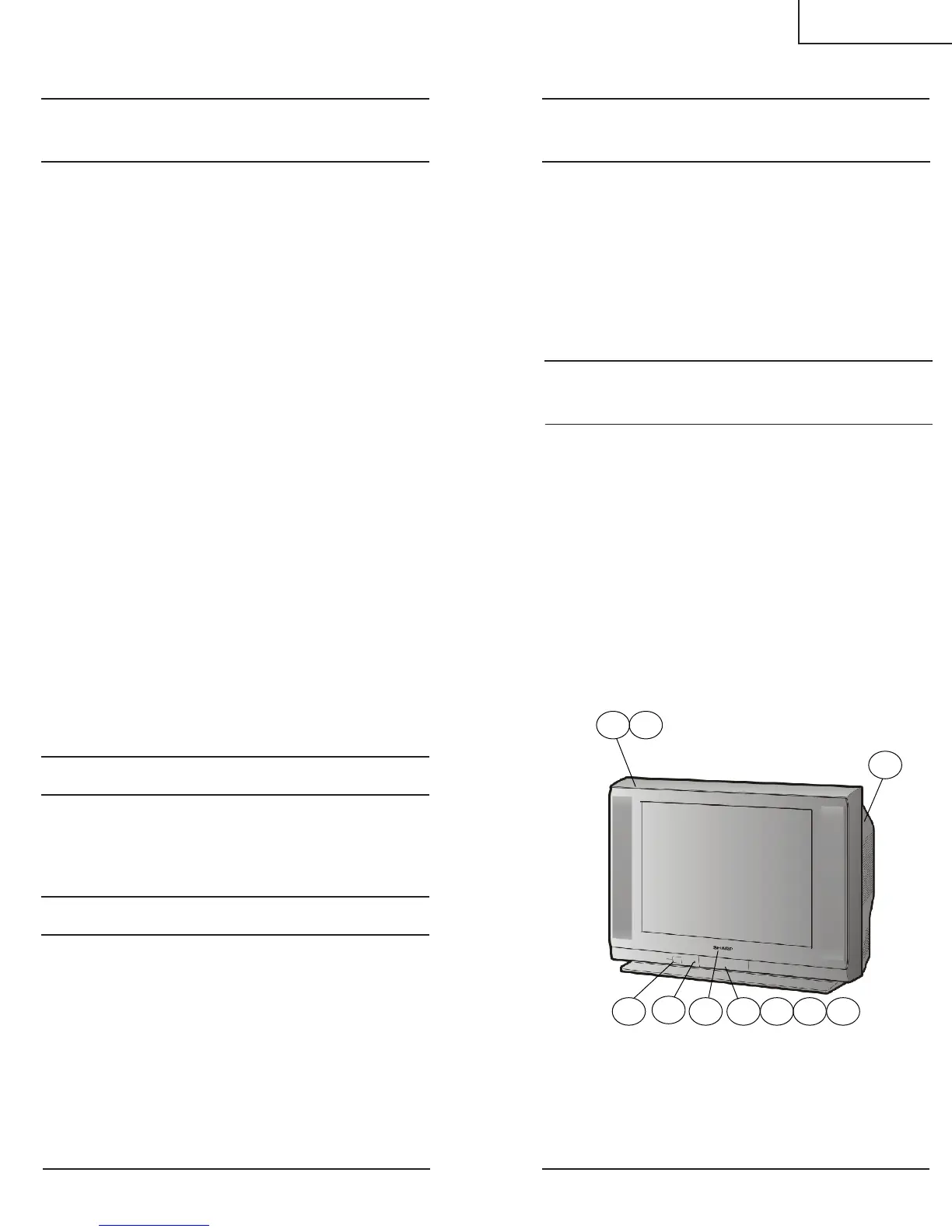

1 CCABAB401WEH0 X Front Cabinet Ass'y BN
1-1 Not Available Front Cabinet
1-3 GCOVAA343WJSA X R/C COVER AE
1-4 GCOVHA017WJKZ X COVER AE
1-5 GDORFA034WJKB X DOOR (LM315 COLOR)
1-6 MSPRPA012WJFW X SPRING (DOOR) AB
1-7 HINDPA311WJSA X INDICATION PLATE AE
1-8 JBTN-A119WJKB X BUTTON (LM315 COLOR)
2 GCABBA836WJKA X REAR CABINET BM
1-2 HBDGB3141CESA X BADGE AF
PACKING PARTS
(NOT REPLACEMENT ITEM)
CABINET PARTS
1 1-1
2
1-8 1-71-2 1-4 1-5 1-6
1-3
35
32SF56B
