Sharp ER-A310 Installation Manual

2. ER-A330

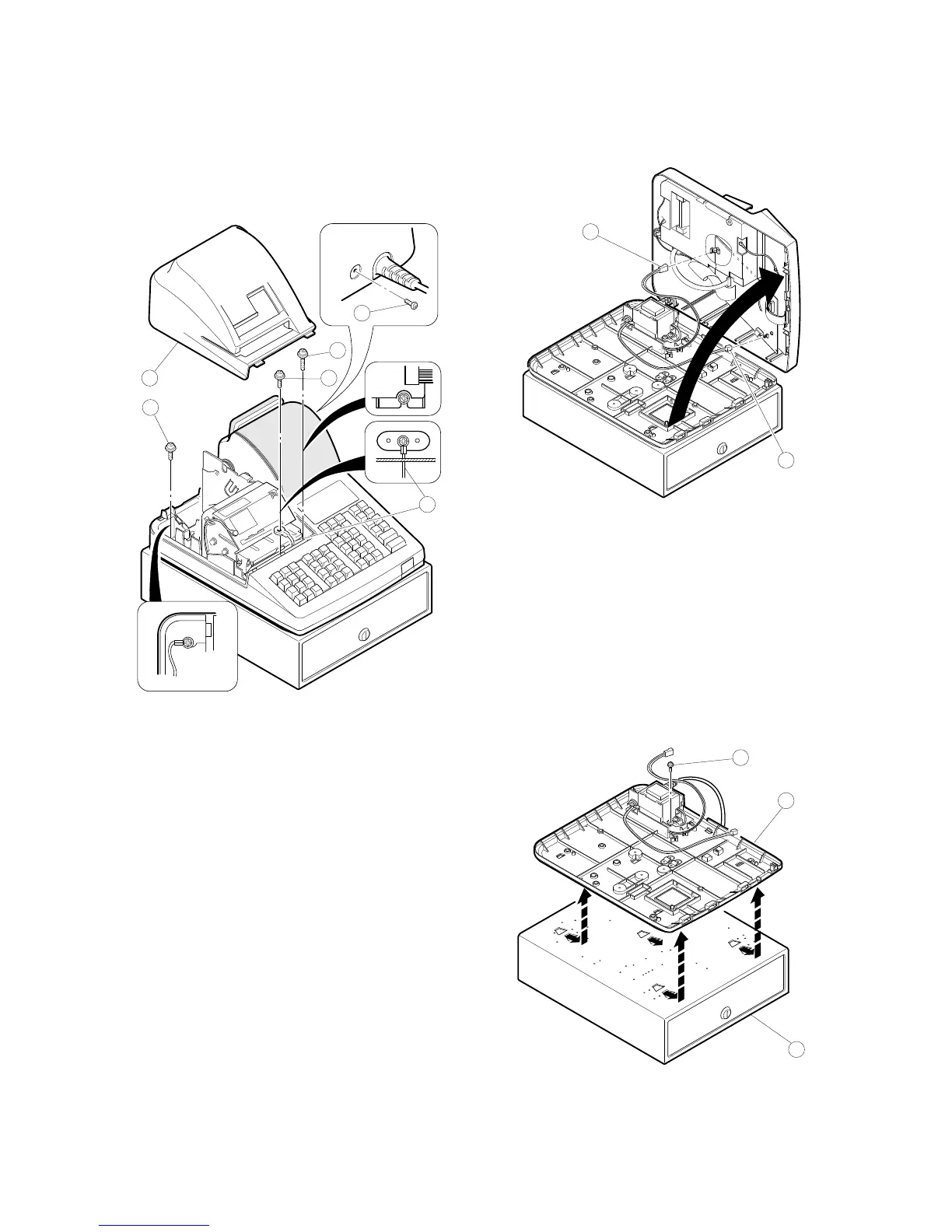

1) Remove the printer cover 1 .
2) Remove the three screws 2 .
3) Remove the screw 3 and grounding wire 4 .
4) Separate the top cabinet and the bottom cabinet.
Note: Transformer cable 5 and the drawer cable on the bottom
cabinet are connected to the main PWB on the top cabinet.
Be careful when separating them from the bottom cabinet.
5) Remove transformer cable 5 and drawer cable 6 from the main
PWB.
CHAPTER 4. REMOVING THE
BOTTOM CABINET
(Only for ER-A330)
1. ER-A330
1) Remove the top cabinet.
2) Remove the bottom cabinet 1 from the drawer unit 2 .
13
4
2
2
2
5
6
1
2
A
B
B
A
A
B
3
– 3 –

Sharp ER-A310 Specifications

General

Brand	Sharp
Model	ER-A310
Category	Cash Register
Language	English
