Sharp ER-A310 Installation Manual

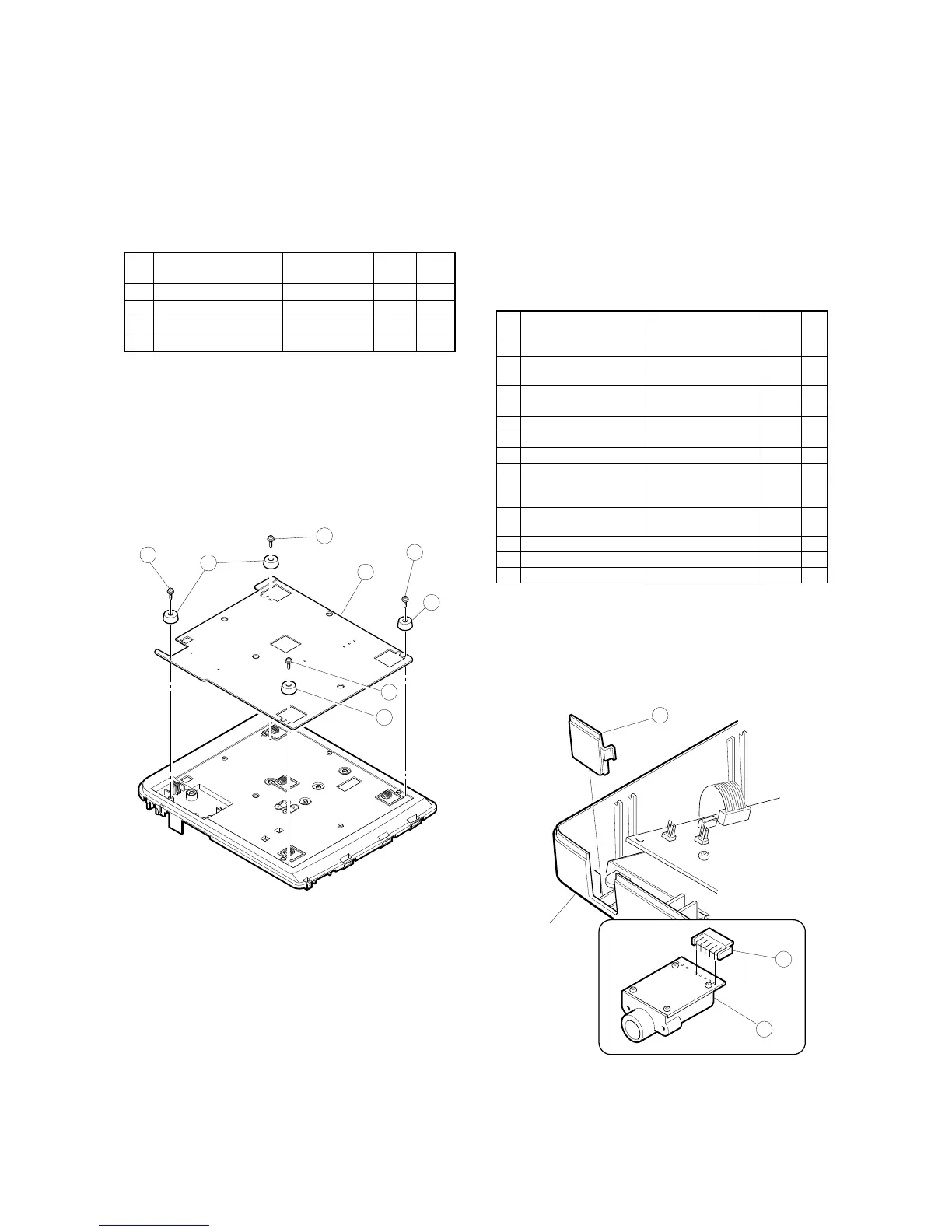

CHAPTER 9. SHIELD PLATE KIT:
DKIT-8666BHZZ (Only
for ER-A330)
1. Component list
No. PARTS CODE DESCRIPTION
PRICE
RANK
Q’TY
1 LCHSM6705BHZZ MAIN SHASSIS BG 1
2 TLABH7006BHZA CAUTION CARD AD 4
3 PGUMM6696BHZZ GUM LEG AE 4
4 XUPSD30P12X00 SCREW AA 4
2. Installation procedure
1) Remove the top cabinet.
2) Remove the bottom cabinet.
3) Install the shield plate 1 and attach four gum legs 3 to the
shield plate and fix them with screws 2 .
4) Replace the top cabinet.
CHAPTER 10. ONE HOLE CASHIER
KEY KIT:
DKIT-8669BHZZ
(For ER-A310 & 330)
* Standard provision for the TQ, TR, and TS versions of the ER-
A330.
1. Parts list
No. PARTS CODE DESCRIPTION
PRICE
RANK
Q’ty
1 LKGIW7375BHZZ CASHIER KEY BODY BG 1
2 QCNCW2423BH0E CASHIER KEY
CONNECTOR (5P)
AE 1
3 LKGIM7377BH01 CASHIER KEY No.1 AV 2
4 LKGIM7377BH02 CASHIER KEY No.2 AV 2
5 LKGIM7377BH03 CASHIER KEY No.3 AV 2
6 LKGIM7377BH04 CASHIER KEY No.4 AV 2
7 LKGIM7377BH05 CASHIER KEY No.5 AV 2
8 LKGIM7377BH06 CASHIER KEY No.6 AV 2
9 QCNW-7818BHZZ CASHIER KEY
CABLE (5P)
AN 1
10 LANGT7602BHZZ CASHIER KEY
SWITCH ANGLE
AM 1
11 XJSSD26P08000 SCREW AA 2
12 XEBSD30P08000 SCREW AA 2
13 GFTAF6922BHZZ CLERK COVER "B" AG 1
2. Installation procedure
1) Remove the top cabinet.
2) Remove the clerk cover "A" 1 from the top cabinet.
3) Solder the clerk connector (5P) 2 to the clerk switch body 3 .
1
2
3
3
3
2
2
2
1
Top cabinet
2
3
– 7 –
