LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
153

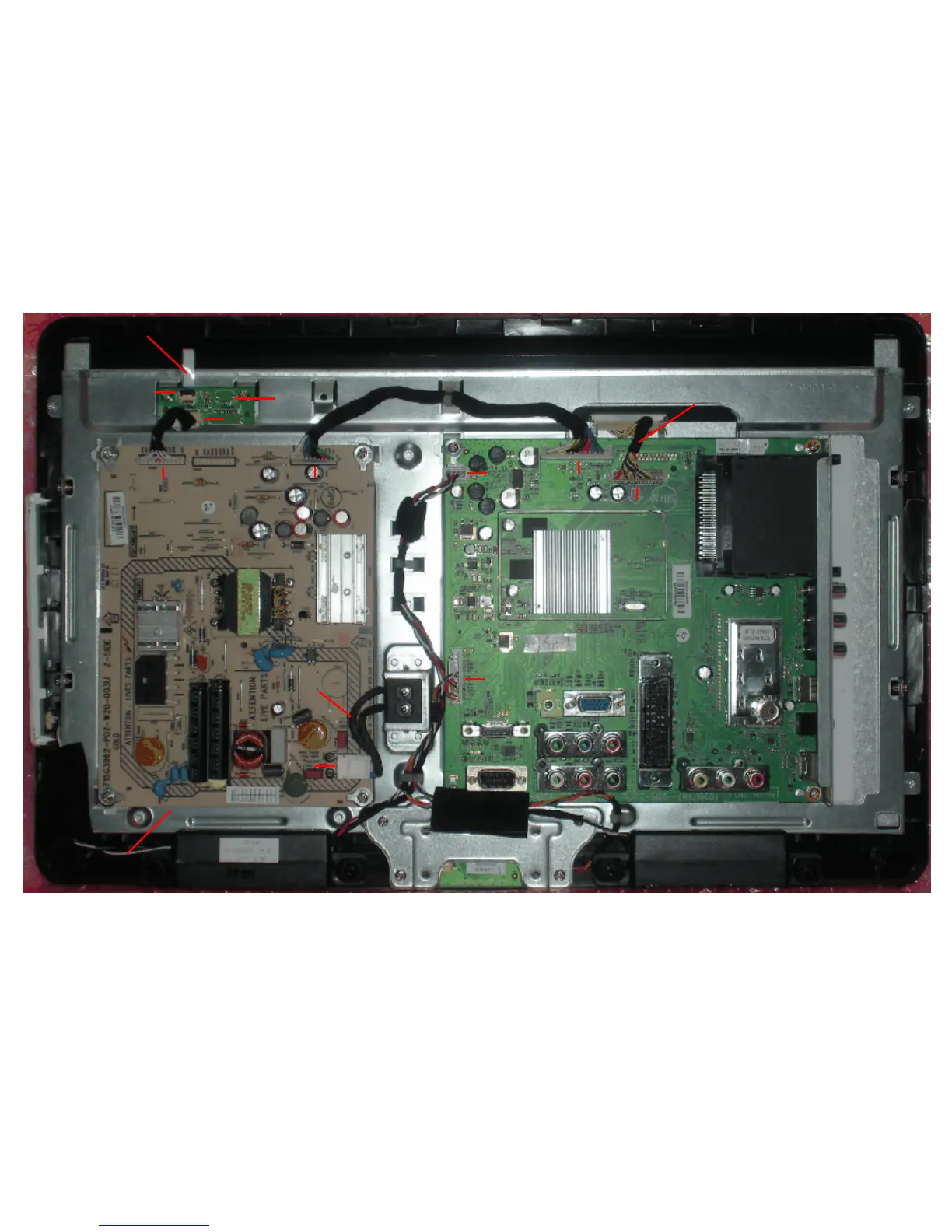

[3] 19” WIRING DIAGRAM(LC_19LE320)
MAIN BOARD POWER BOARD
CN601
CN805
CN408
CN401
095G801840F923
095G801413F948
095G8021 3F905
CN804
CN802
095G176J 10919
Convert BOARD
CN902
CN901
CN701
