LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
156

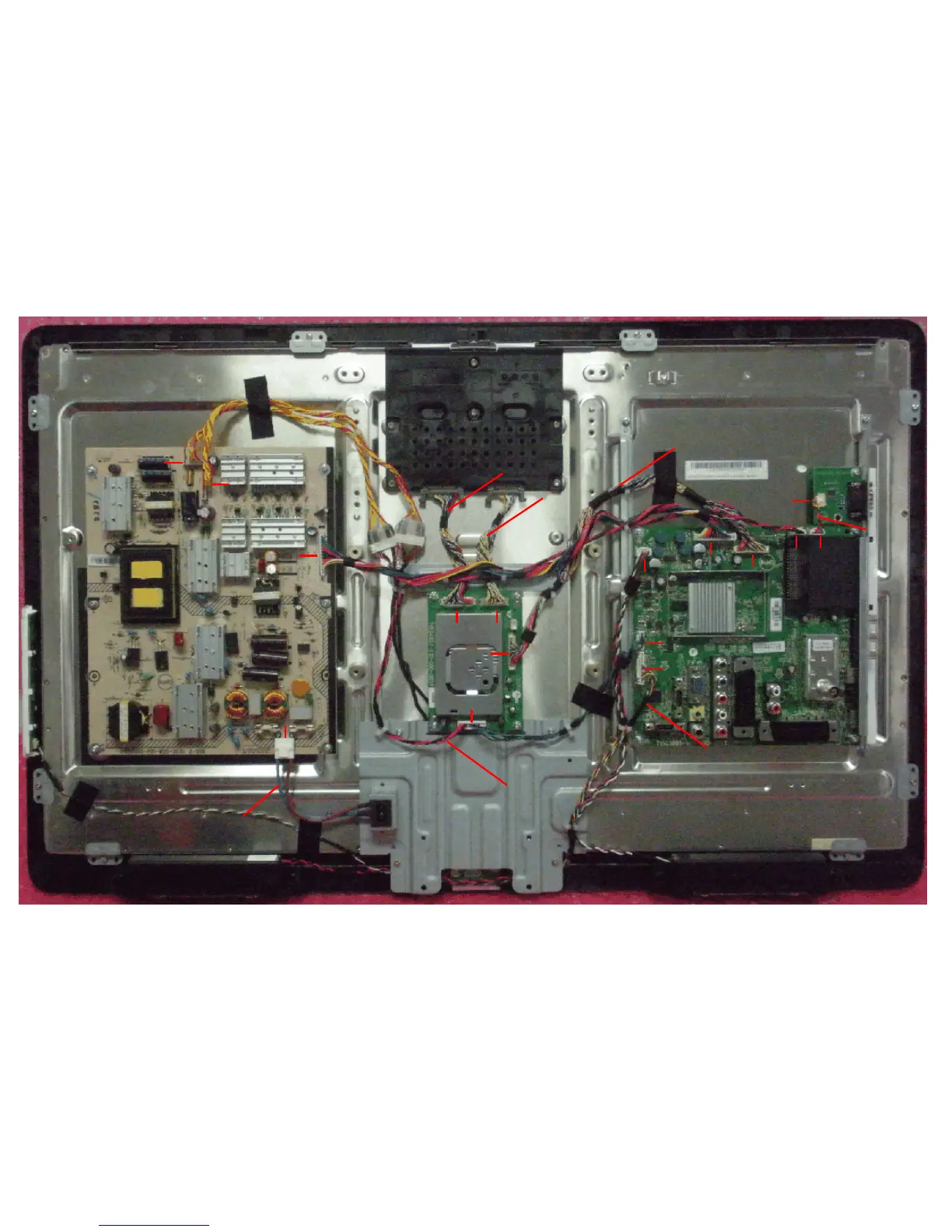

32” WIRING DIAGRAM(LC_32LE320)
095G801851F923
MAIN BOARD
POWER BOARD
CN701
CN601
CN901
CN412
CN902
095G801411F913
095G8021 3F907
CN904
CN903
CN413 CN411
MEMC BOARD
RS232 BOARD
CN401
CN408
CN406 CN407
CN405
CN411
095G8014 5F926
095G801841F908
095G801840F917
CN403
095G801413F940
