53
LC-19LE510
LC-22LE510
LC-24LE510
13. SCALER AND LVDS SOCKETS

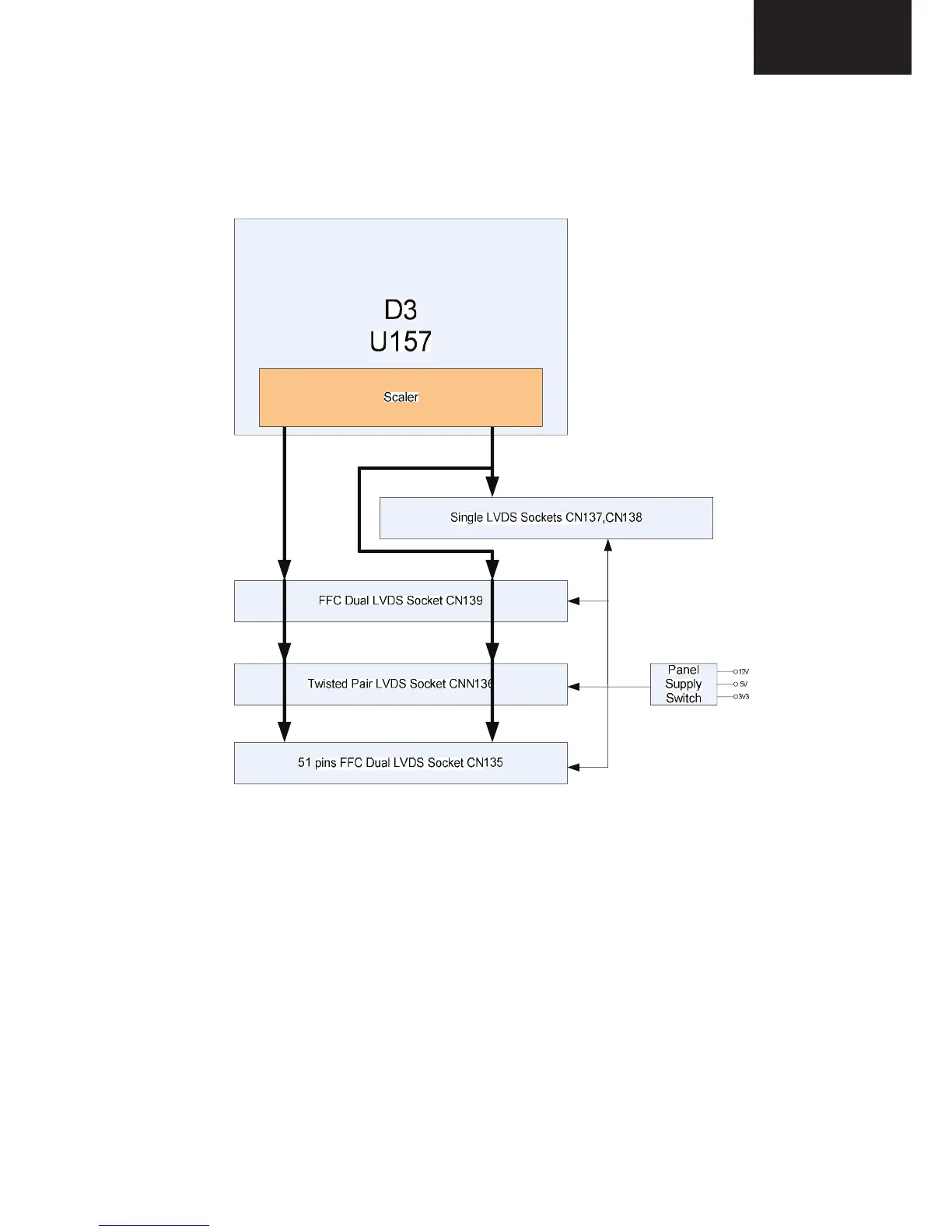

13.1. LVDS sockets Block Diagram
13.2. Panel Supply Switch Circuit
This switch is used to open and close panel supply of TCON. It is controlled by port of main μController.
Also with this circuit panel sequence could be adjusted correctly. 3 panel supplies are connected to this
circuit. All of them are optional according to panels.
12.
12.1
12.2
