LC-32/40/46LE600E/RU/S (1st Edition)
2 – 3

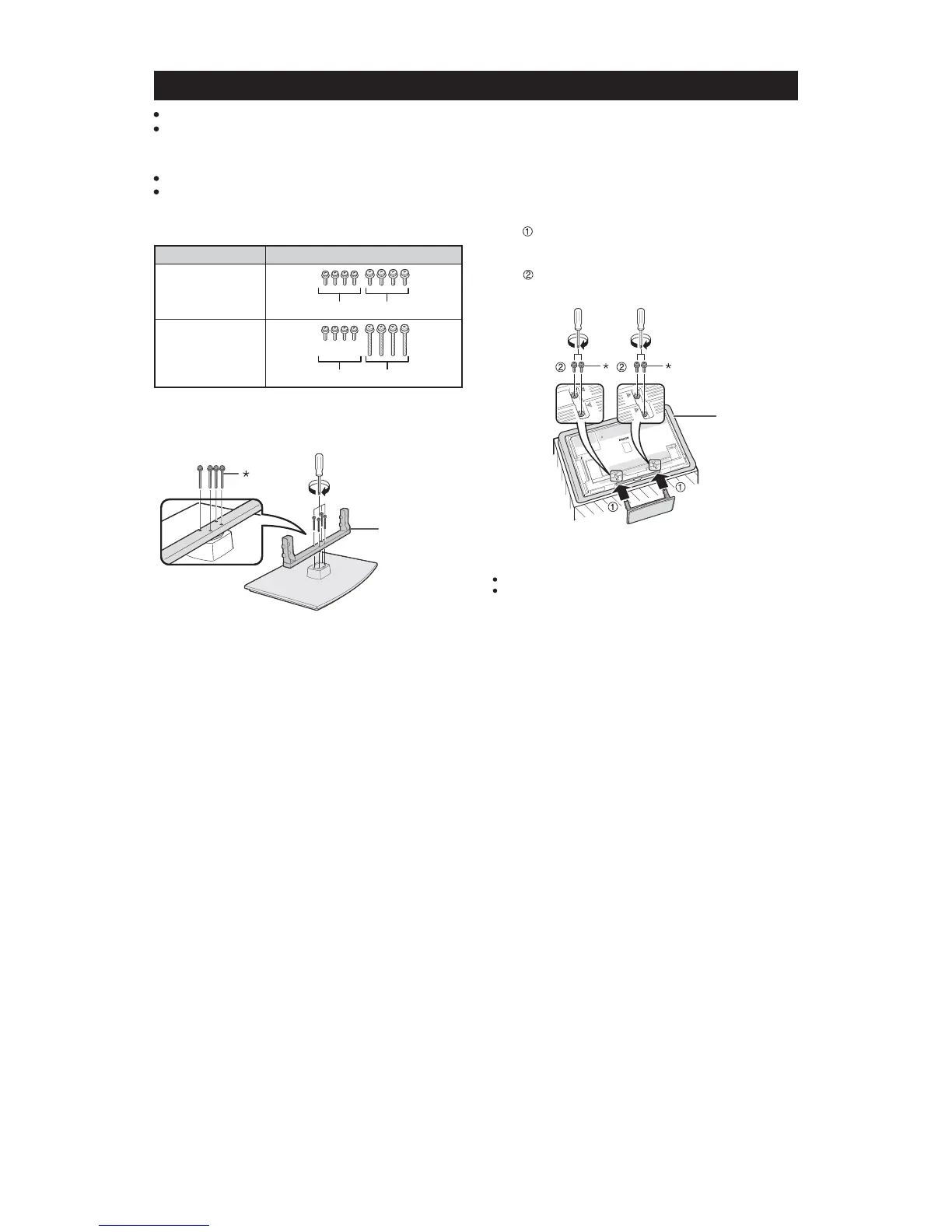

Attaching the stand unit
Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it
from being damaged.
CAUTION
Attach the stand in the correct direction.
Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Confirm that there are eight screws with the
stand unit.
Models Screws
32 inch models
AB
40/46 inch models
CD
Attach the supporting post for the stand unit
onto the base using the four screws with the
screw driver as shown.
Supporting
post
32 inch models: Use Screws B in the table in step 1.
40/46 inch models: Use Screws D in the table in step 1.
1
2
*
*
Inserting the stand.
Insert the stand into the openings on the
bottom of the TV (Hold the stand so it will not
drop from the edge of the base area).
Insert and tighten the four screws into the four
holes on the rear of the TV.
Soft cushion
32 inch models: Use Screws A in the table in step 1.
40/46 inch models: UseScrewsCin the table in step 1.
NOTE
To detach the stand unit, perform the steps in reverse order.
A screw driver is not supplied with this product.
3
*
*
To Next Page
