Sharp LC-40LX630E User Manual

54
LC-32LE63x
LC-40LE63x
LC-46LE63x

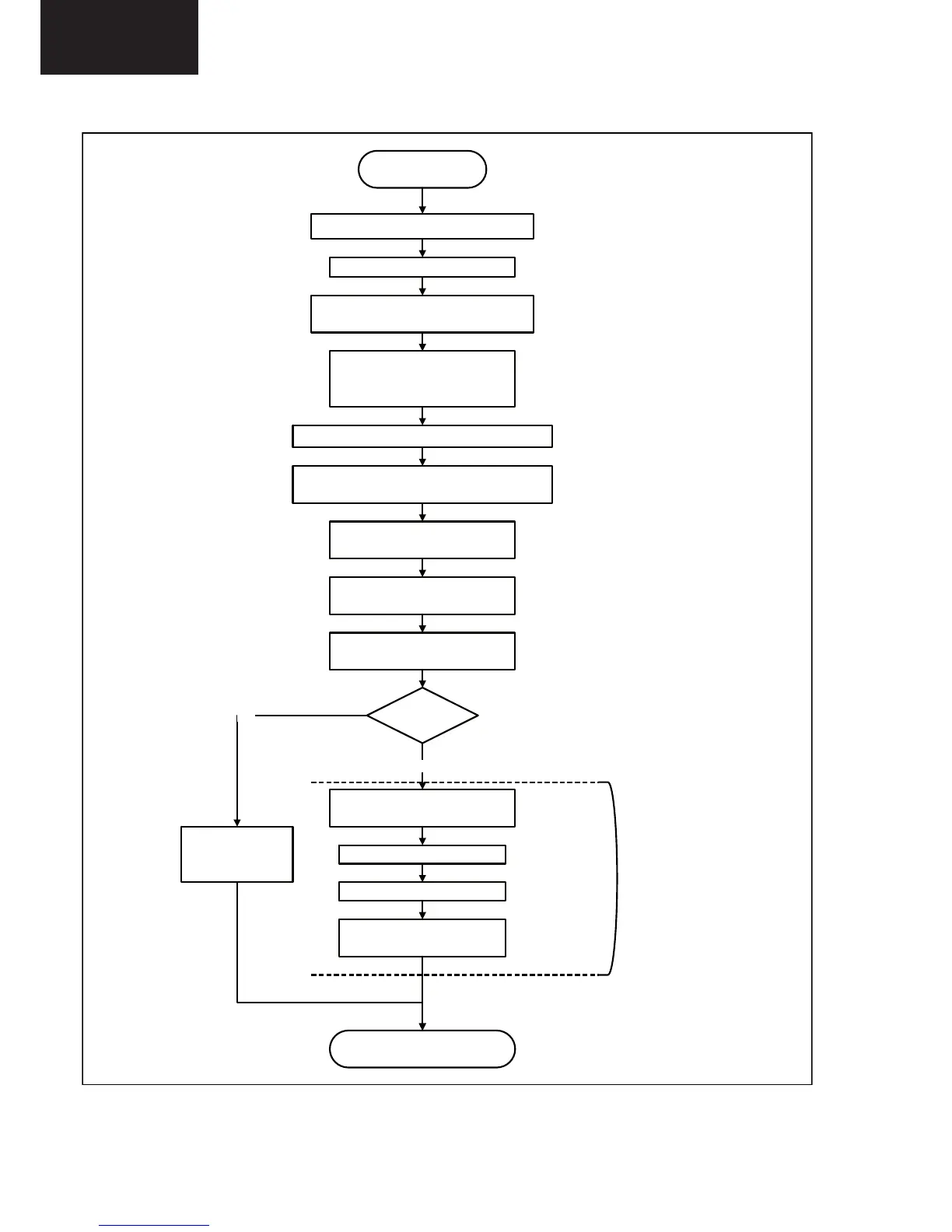

Figure 5-8 “Active” to “Semi Stand-by” flowchart
18770_255_100216.eps
100216
Semi Standby
Active
Wait x ms (display file)
Mute all sound outputs via softmute
Mute all video outputs
switch off LCD backlight
(I/O or I²C)
Force ext audio outputs to ground
(I/O: audio reset)
And wait 5ms
switch off Ambilight
Set main amplifier mute (I/O: audio-mute)
Wait 100ms
Wait until Ambilight has faded out: Output power
Observer should be zero
Switch off the displaypowerby
switching LCD-PWR-ON high
Wait x ms
Switch off LVDS output in 85500
The exact timings to
switch off the
display(LVDS
delay, lamp delay)
are defined in the
display file.
Switch off POK line
detection algorithm
200Hz set?
No
Yes
Instruct 200Hz
Tcon to turn off
the display
Service Modes, Error Codes, and Fault Finding (continued)

Sharp LC-40LX630E Specifications

General

Response time	6 ms
Display diagonal	40 \
Display brightness	450 cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Annual energy consumption	70 kWh
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-T
RMS rated power	10 W
Number of speakers	2
HDMI version	1.4
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Video formats supported	H.264, MPEG4
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.15 W
Power consumption (typical)	48 W

Weight and Dimensions

Depth (with stand)	242 mm
Height (with stand)	630 mm
Weight (with stand)	14700 g
Depth (without stand)	40 mm
Width (without stand)	947 mm
Height (without stand)	560 mm
