7.1.1 Implementation
Key components of this chassis are:
• PNX855xx System-On-Chip (SOC) TV Processor
• TX26xx Hybrid Tuner (DVB-T/C, analogue)
• STV6110AT DVB-S Satellite Tuner
• SII9x87 HDMI Switch
• TPA312xD2PWP Class D Power Amplifier
• LAN8710 Dual Port Gigabit Ethernet media access
controller.

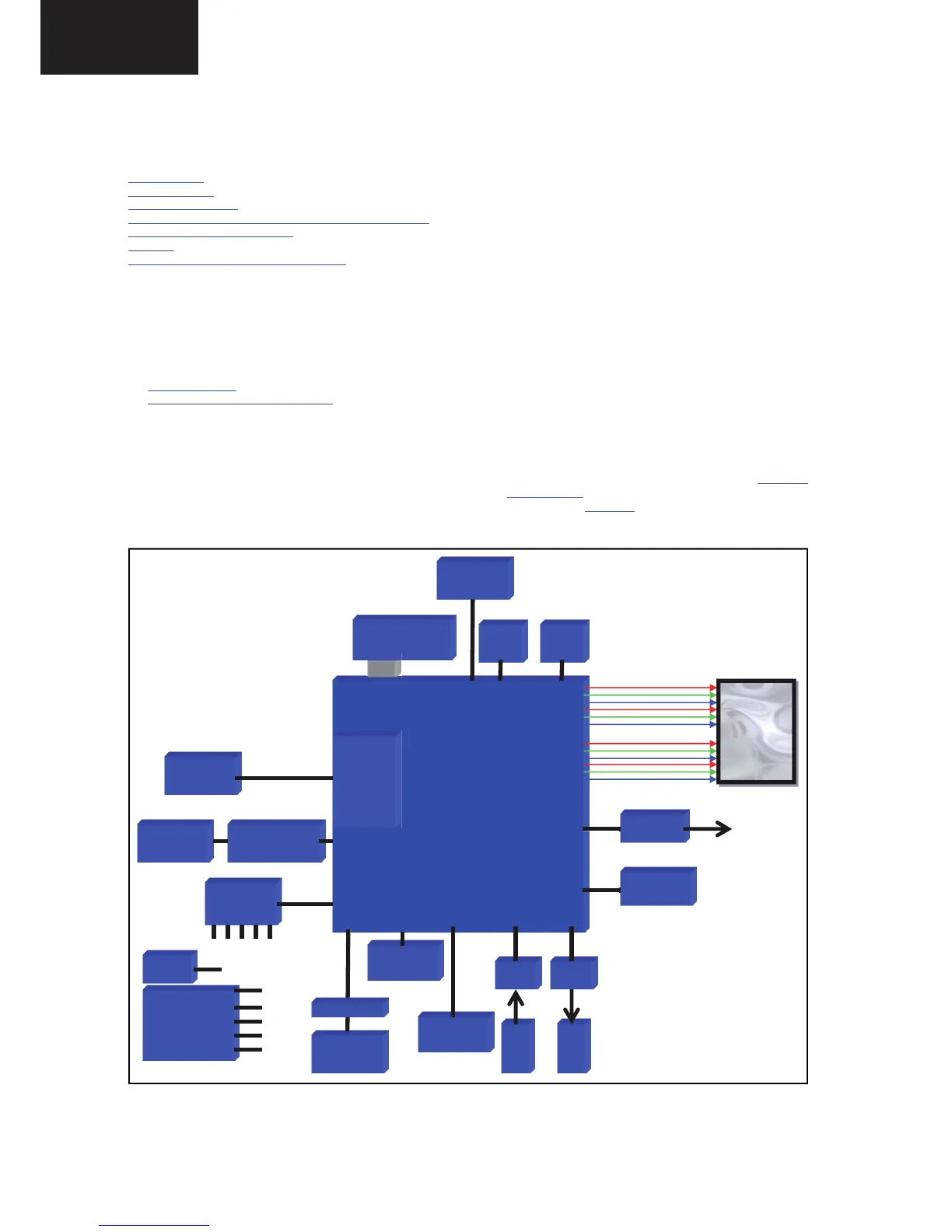

7.1.2 TV550 Architecture Overview
For details about the chassis block diagrams refer to chapter 9.
Block Diagrams. An overview of the TV550 2011 architecture
can be found in Figure 7-1
.
Index of this chapter:
7.1 Introduction
7.2 Power Supply
7.3 DC/DC Converters
7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception
7.5 Front-End DVB-S(2) reception
7.6 HDMI
7.7 Video and Audio Processing - PNX855xx
Notes:
•Only new circuits (circuits that are not published recently)
are described.
• Figures can deviate slightly from the actual situation, due
to different set executions.
• For a good understanding of the following circuit
descriptions, please use the wiring-, block- (see chapter
9. Block Diagrams
) and circuit diagrams (see chapter
10. Circuit Diagrams and PWB Layouts
).Where necessary,
you will find a separate drawing for clarification.
7.1 Introduction
• implementation of “passive” 3D
• removal of TCON from the SSB (comes with the display)
• changed power architecture
The LE63x chassis uses the PNX855xx chipset. The major
deltas S551 are:
•support of DVB-T2 (“second generation” DVBT).
CIRCUIT DESCRIPTIONS
7. Circuit Descriptions
