Sharp LC-60LE450U/LC-60LE452U Service manual
34

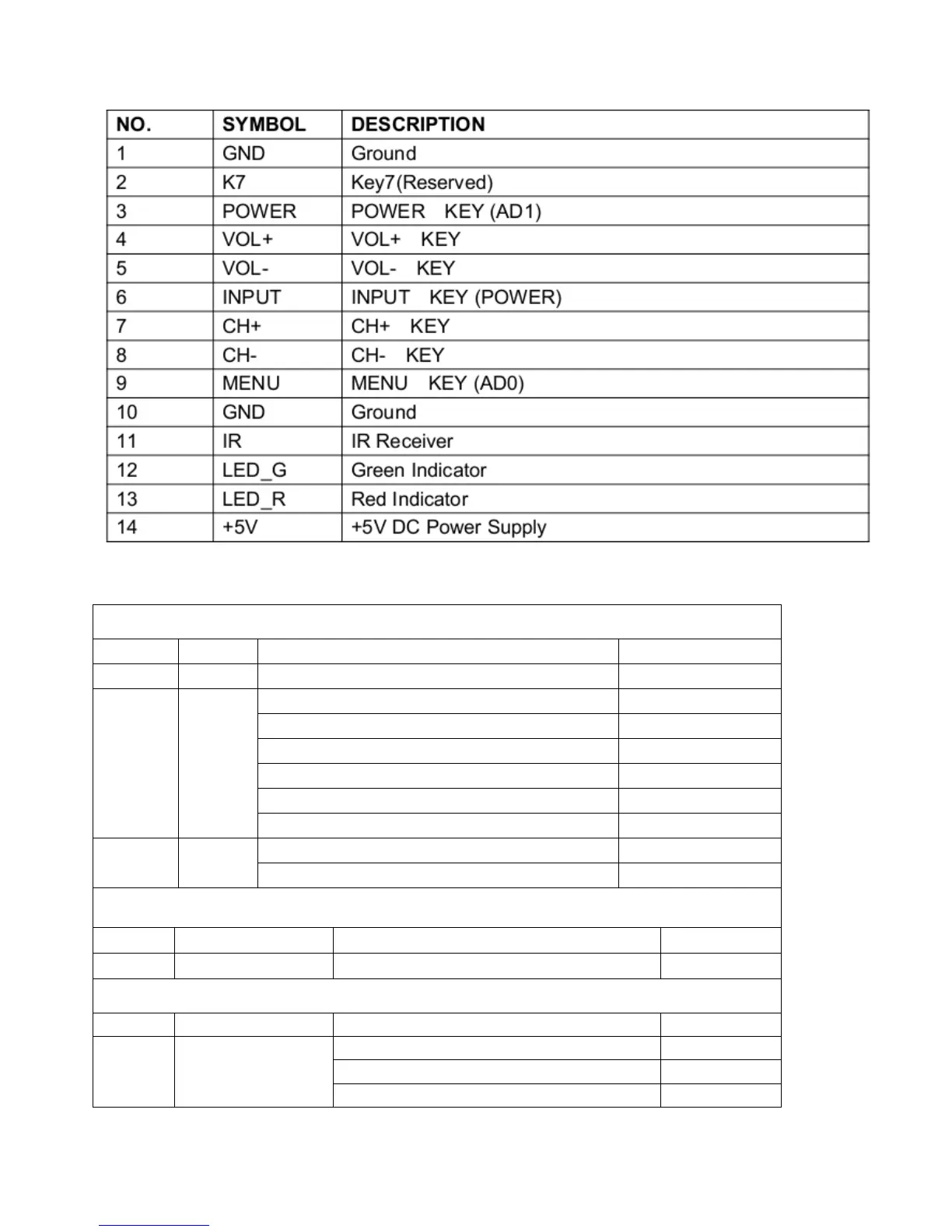

J12. KEY&IR BOARD CONNECTOR(14PIN/2.0)
8. Critical components list
8.1 Critical components list for Main Board
1、EMC list of key components
number
name
Material Specifications
Supplier
1
IC
MSD3393LU
MST
2
Crystal
24MHz +-20PPM 20PF HC 49US
RS
24MHz +-20PPM 20PF HC 49US
ZG
24MHz +-20PPM 20PF HC 49US
TJ
16MHz +-10PPM 20PF HC 49US
ZG
16MHz +-10PPM 20PF HC 49US
RS
16MHz +-10PPM 20PF HC 49US
TJ
3
Tuner
TDA-18274
NXP
SI2158
SILICONLABS
2、requirements of safety specifications
number
name
Material Specifications
Supplier
1
PCB
CV3393BH-C-11
/
3、Other key components
number
name
Material Specifications
Supplier
1
FLASH
W25Q32
Winbond
GD25Q32
GD
EN25Q32
EON
