3.5 Tearing off the LVDS cable with silicon
Step 1 Put the art knife aside the LVDS’s connector, and cut the silicon apart. As photo 3.4.
Note：Don’t damage the main board and cable when cut the silicon apart with art knife.
Step 2 Pull the LVDS cable from the main board, as photo 3.5.
Note：To avoid the damage of the pins of LVDS connector, please be care and should
be vertical force when pull off the LVDS cable
Step 3 Put the art knife aside the main board and cut the silicon apart between the main board
and silicon. Remove the silicon. As photo 3.6.
Note：Don’t damage the main board and the pin of the connector when cut the silicon
apart with art knife. Meantime, don’t leave the foreign substance inside the machine.

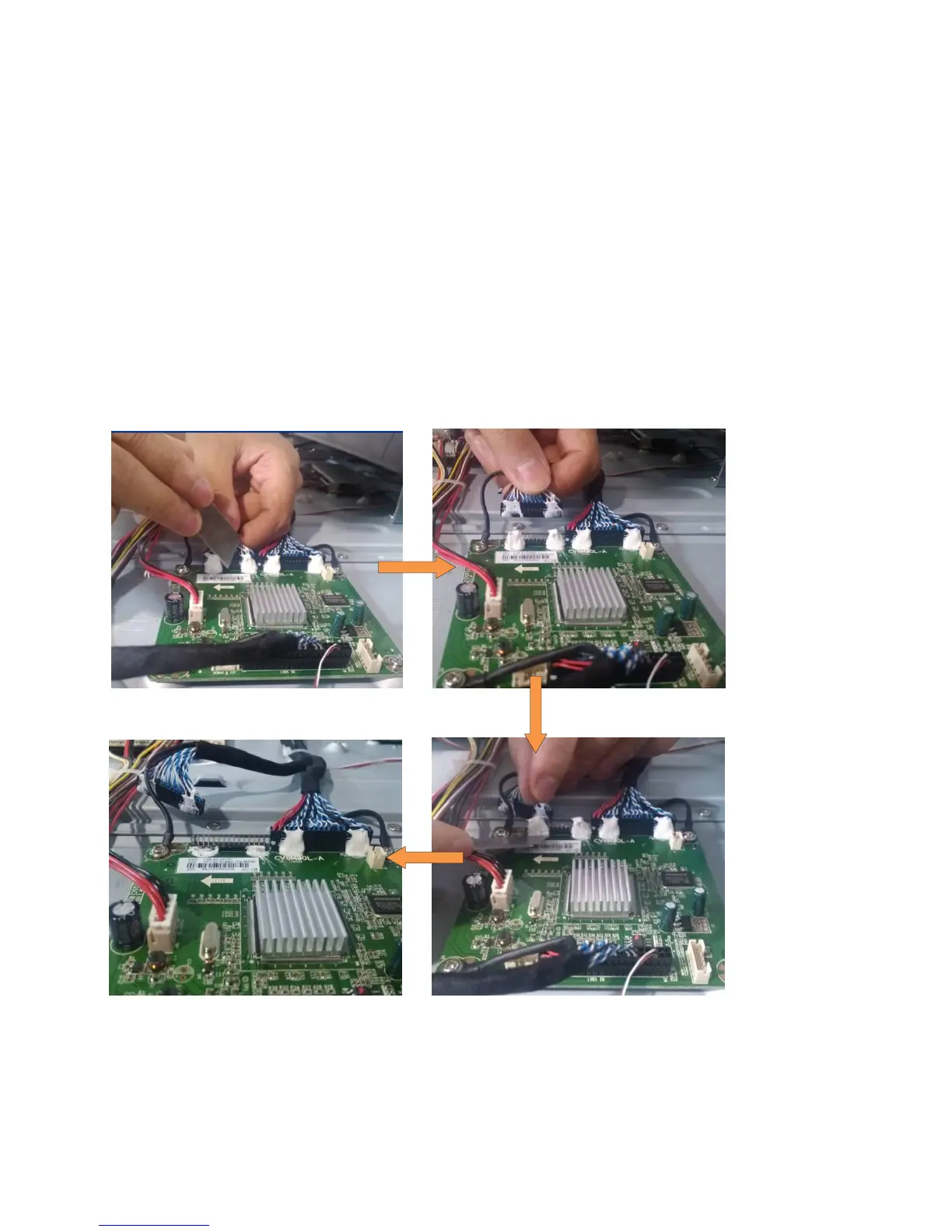

Photo 3.4 Photo 3.5
Photo 3.7 Photo 3.6
