Sharp LC-60LE450U/LC-60LE452U Service manual
7
3.2 Disassembly the metal parts and attached Ass’y.
Removing the screen bridge piece L/R, Bracket of base, Speaker Bracket L/R, Speaker,
IR Board, Presses key module, Hanging bracket, Front Cabinet Assembly.
Step 1 Remove 5 pcs lock screws ① and detach the screen bridge piece L/R ②/③
Step 2 Remove 6 pcs lock screws ④, 2 pcs lock screws ⑤ and detach the bracket of base ⑥
Step 3 Remove 16 pcs lock screws ⑦ and detach the hanging bracket ⑧
Step 4 Remove 4 pcs lock screws ⑨ and detach the Speaker bracket L/R
○
11 /
○
12
Remove 4 pcs lock screws ⑩ and detach the speaker
○
13
Step 5 Remove 5 pcs lock screws
○
14; Remove the IR Board cable
○
15 , Presses key module
○
16
and detach the Front Cabinet Assembly
○
17

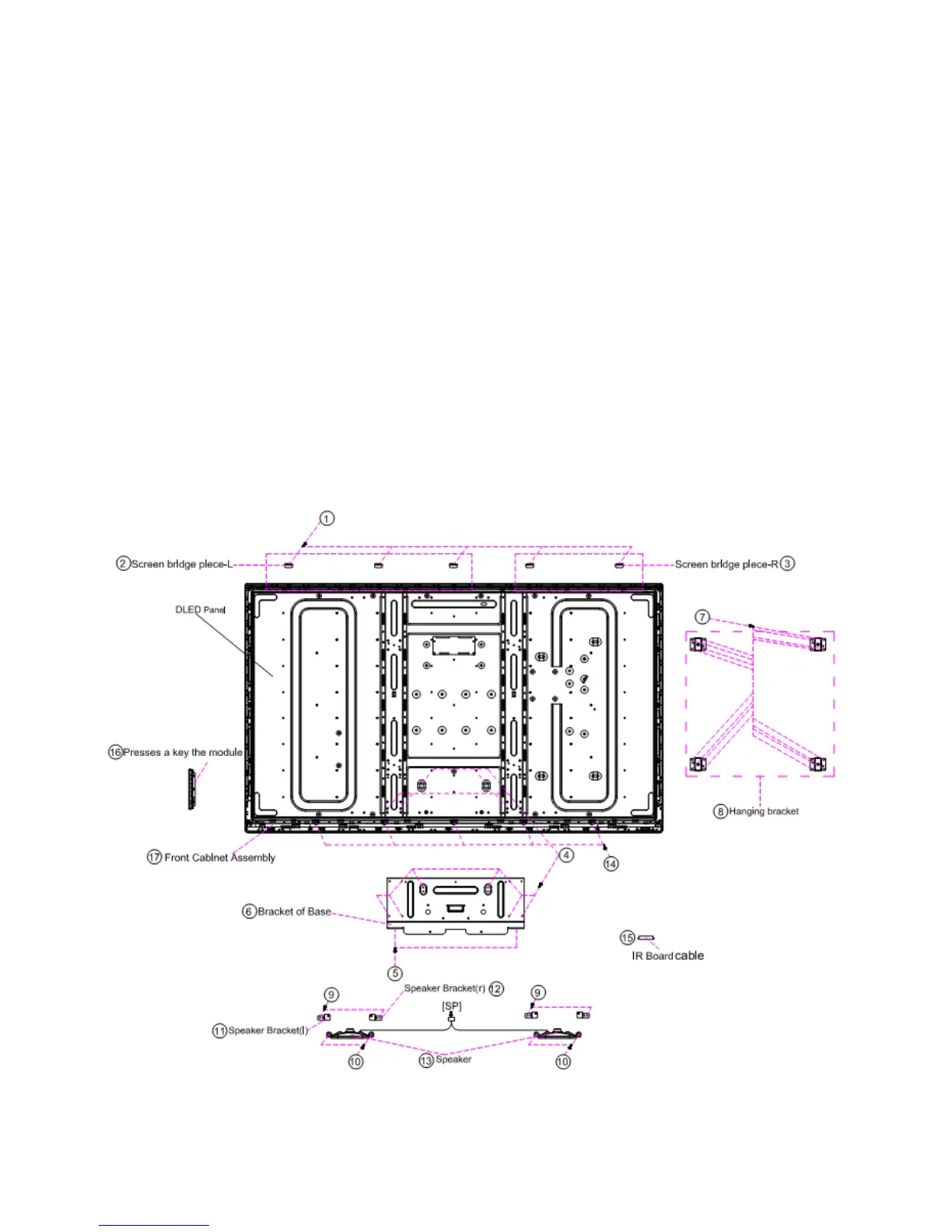

The detail screws and parts sign as following picture3.2
Picture 3.2
