3. Disassembly the TV set method
3.1 Disassembly stand unit and Rear cabinet Ass’y.
Step 1 Remove 6 pcs lock screws ① and detach the Plastic Base Stand Componet ②
Step 2 Remove 15 pcs lock screws ③ , 1 pcs lock screw ④ , 6 pcs lock screws ⑤ ,
4 pcs lock screws ⑥ , 6 pcs lock screws ⑦ and detach the Rear Cabinet Ass’y⑧

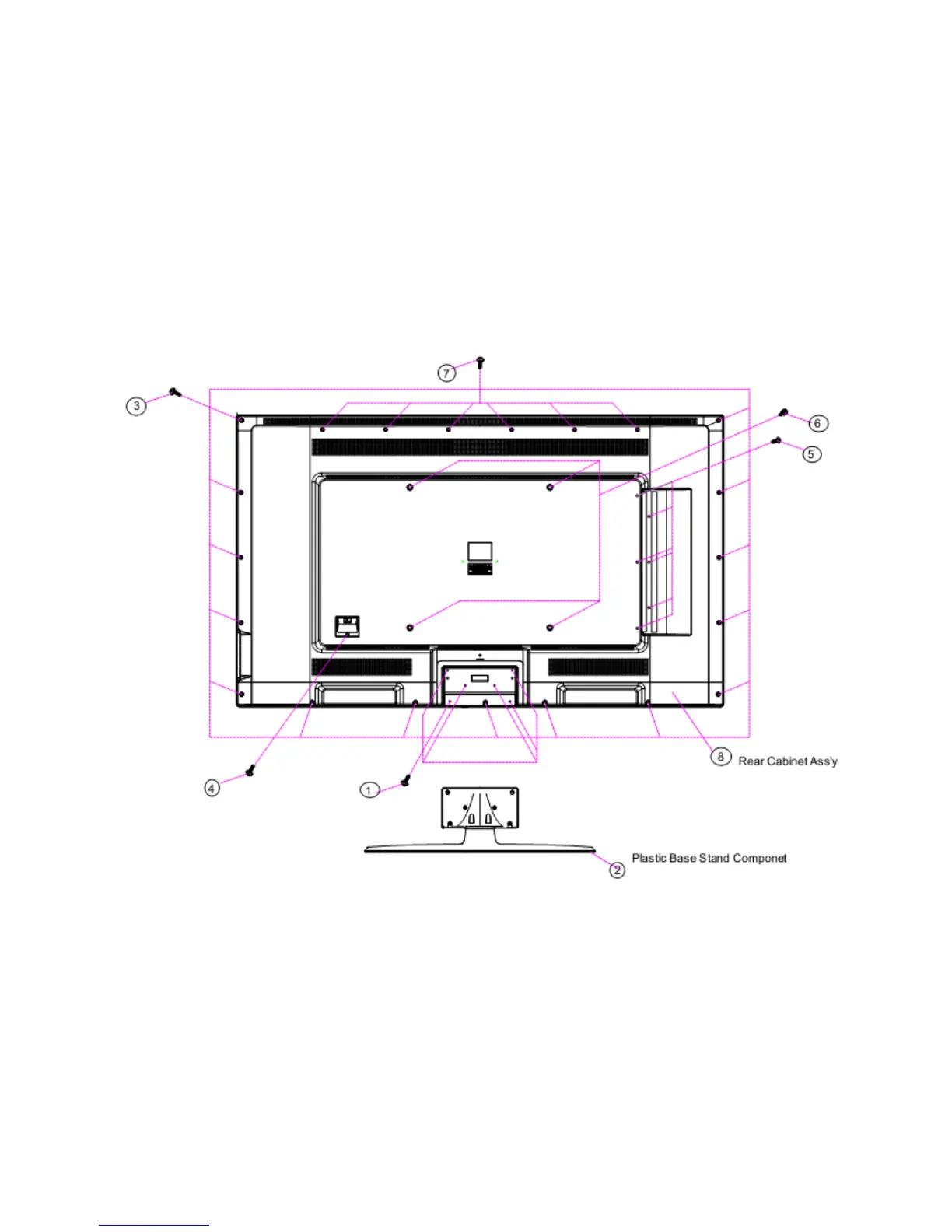

The detail screws sign as following picture3.1
Picture 3.1
