34
AQUOS LINK connection
First connect the AQUOS AUDIO speaker system or an AQUOS BD player/AQUOS recorder that supports the HDMI
CEC protocol.
NOTE
• Refer to the operation manual of the device to be connected for further details.
• After unplugging connection cables or changing the connection pattern, turn on the power of the TV after all relevant devices’
power have been turned on. Change the external input source by pressing b, select the appropriate external source and verify
the audiovisual output.

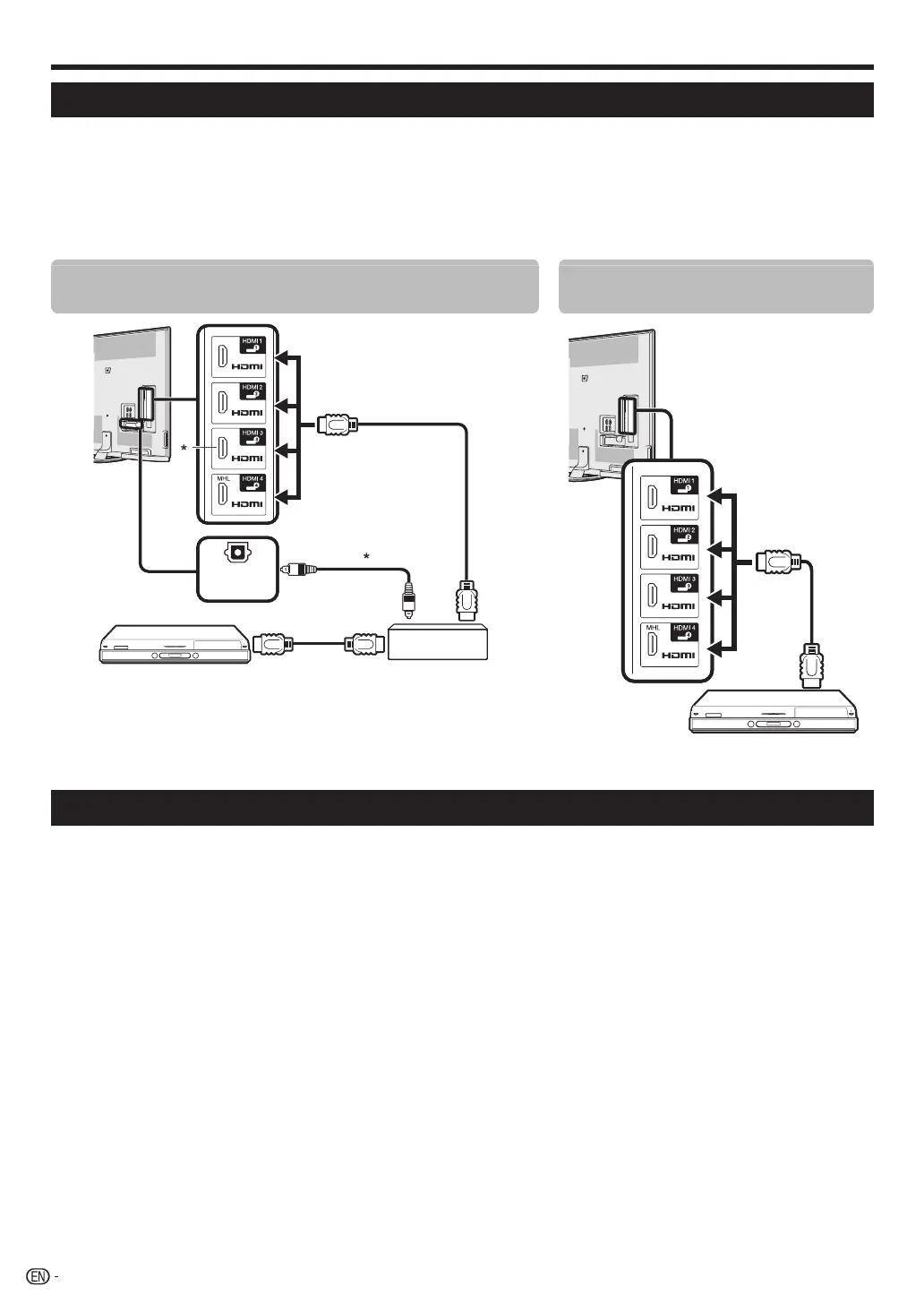

Connecting an AQUOS BD player/AQUOS recorder
via the AQUOS AUDIO speaker system
n
n
o
2
1
DIGITAL
AUDIO
OUTPUT
(DC 5V 900mA)
ARC
AQUOS BD player/AQUOS recorder AQUOS AUDIO speaker system
HDMI-certified cable
(commercially available)
Optical audio cable
(commercially available)
*1
The ARC (Audio Return Channel) function works only when using the HDMI3 terminal.
*2
When you use an audio system compatible with the ARC function of the TV, you do not
need to connect an optical audio cable to the TV.
Connecting an AQUOS BD
player/AQUOS recorder only
n
(DC 5V 900mA)
ARC
AQUOS BD player/AQUOS recorder
Regarding “Select recording device”
Select the device for recording from connected devices.
NOTE
• This function enables you to select either the USB HDD for USB-recording use or the HDMI device with CEC protocol.
1 Go to “HOME” > “TV Menu” > “Setup” > “View setting” > “Select recording device”.
2 Select the device for recording using the REC E on the remote control unit.
• Select “USB-HDD” when using the REC E for USB recording.
• Select “HDMI device” when using the REC E for recording to the HDMI device.
3 Press RETURN to end the operation.
AQUOS LINK
LC80LE960X_EN_book.indb 34LC80LE960X_EN_book.indb 34 4/4/2014 1:08:11 PM4/4/2014 1:08:11 PM
