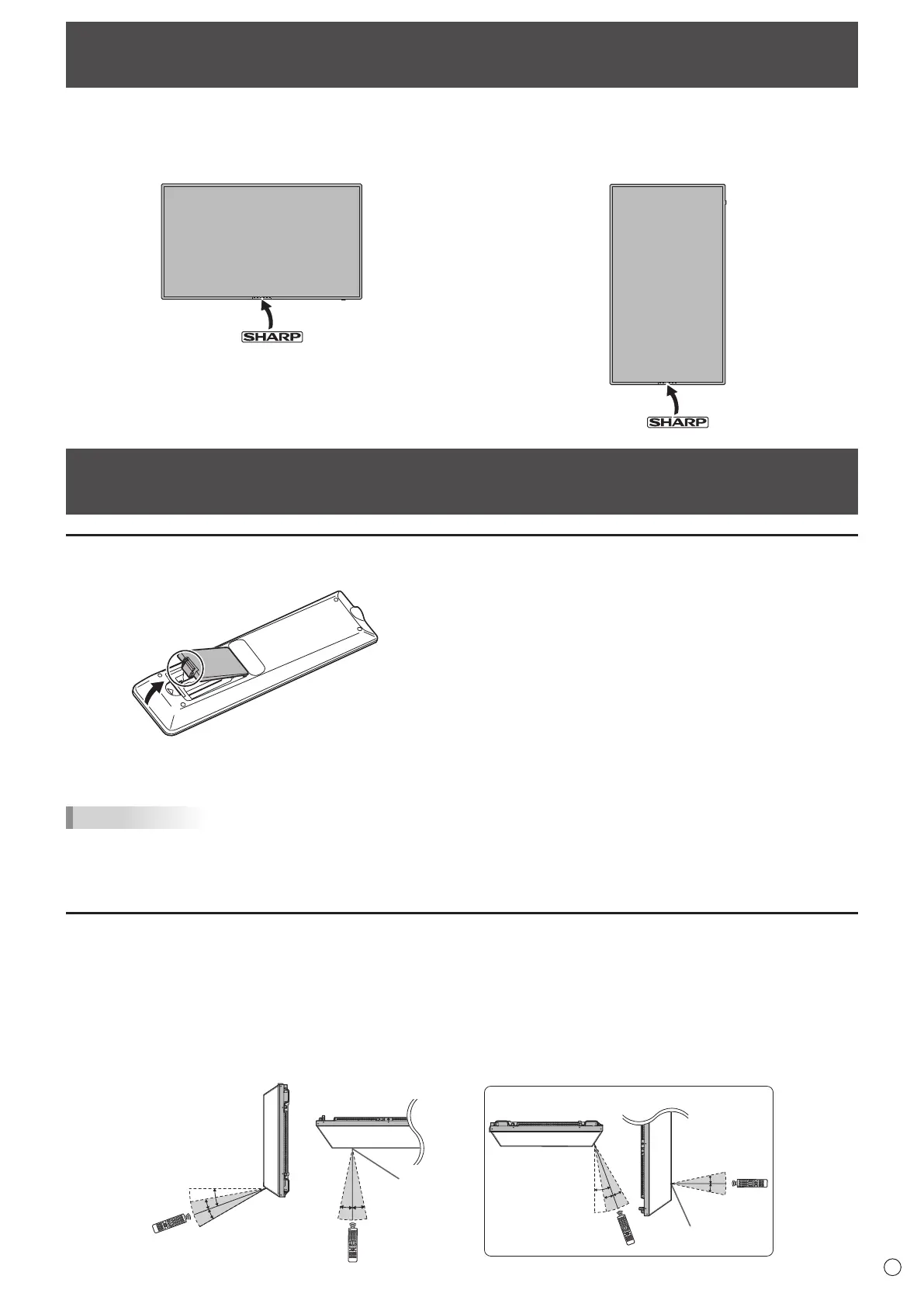

Attaching the logo sticker
Installing the batteries
1. Place your nger on the part marked with the ▲, and then pull the cover off.
2. See the instructions in the compartment and put in the supplied batteries (R-03 (“AAA” size) x 2) with their plus (+)
and minus (-) sides oriented correctly.
3. Close the cover.
TIPS
• When the batteries become exhausted, replace them with new (commercially available) batteries.
• The supplied batteries (R-03 (“AAA” size) x 2) may become exhausted quickly depending on how they are stored.
• If you will not be using the remote control for a long time, remove the batteries.
• Use manganese or alkaline batteries only.
Remote control operation range
Remote control sensor in
The remote control can be operated even when the remote control sensor is stored inside the monitor.
Point the remote control toward the remote control sensor on the bottom of the monitor (or the right side of the monitor if using
portrait orientation).
[PN-R706/PN-R606]
For the monitor in landscape orientation For the monitor in portrait orientation
9.8 feet (3m)
20º
10º
10º
9.8 feet
(3m)
20º
10º
10º
Remote control
sensor
Remote control
sensor
9.8 feet
(3m)
10º10º
9.8 feet
(3m)
10º
10º
You can attach the supplied logo sticker on the monitor.
Refer to the following example to attach the sticker as necessary.
Example for portrait orientationExample for landscape orientation
