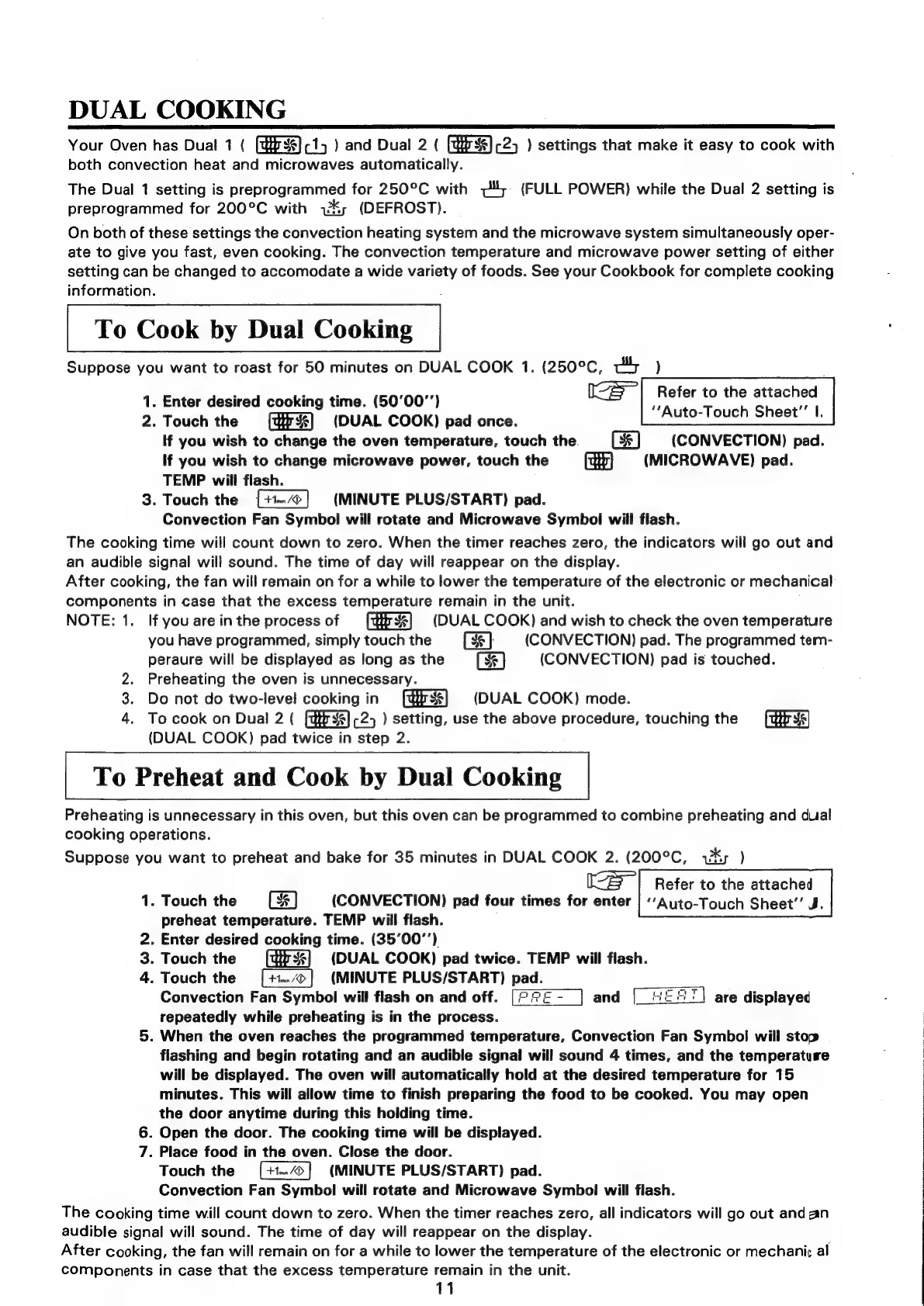

DUAL COOKING
Your Oven has Dual 1 ( (f3$)c13 ) and Dual 2 ( (GPS§) 2) ) settings that make it easy to cook with
both convection heat and microwaves automatically.
The Dual 1 setting is preprogrammed for 250°C with iH; (FULL POWER) while the Dual 2 setting is
preprogrammed for 200°C with wv; (DEFROST).
On both of these settings the convection heating system and the microwave system simultaneously oper-
ate to give you fast, even cooking. The convection temperature and microwave power setting of either
setting can be changed to accomodate a wide variety of foods. See your Cookbook for complete cooking
information.
To Cook by Dual Cooking
Suppose you want to roast for 50 minutes on DUAL COOK 1. (250°C, fh)
1.
Enter
desired
cooking
time.
(50‘00'’)
La
ses
is
usual
2.
Touch
the
[@ff3s)
(DUAL
COOK)
pad
once.
uto-Touch
sheet”
I.
If you wish to change the oven temperature, touch the. (CONVECTION) pad.
If you wish to change microwave power, touch the (ah) (MICROWAVE) pad.
TEMP will flash.
3. Touch the {+-/] (MINUTE PLUS/START) pad.
Convection Fan Symbol will rotate and Microwave Symbol will flash.
The cooking time will count down to zero. When the timer reaches zero, the indicators will go out and
an audible signal will sound. The time of day will reappear on the display.
After cooking, the fan will remain on for a while to lower the temperature of the electronic or mechanical
components in case that the excess temperature remain in the unit.
NOTE: 1. If youareinthe process of (tirs¢]_ (DUAL COOK) and wish to check the oven temperature
you have programmed, simply touch the (s&} (CONVECTION) pad. The programmed tem-
peraure will be displayed as long as the (CONVECTION) pad is touched.
2. Preheating the oven is unnecessary.
3. Do not do two-level cooking in [uss] (DUAL COOK) mode.
4. To cook on Dual 2 ( {fF¥)°23 ) setting, use the above procedure, touching the [diss]
(DUAL COOK) pad twice in step 2.
To Preheat and Cook by Dual Cooking
Preheating is unnecessary in this oven, but this oven can be programmed to combine preheating and dual
cooking operations.
Suppose you want to preheat and bake for 35 minutes in DUAL COOK 2. (200°C, vV&Kr )
= a Refer to the attached
1. Touch the (CONVECTION) pad four times for enter | ‘“Auto-Touch Sheet’ J.
preheat temperature. TEMP will flash.
. Enter desired cooking time. (35’00°’)
. Touch the tip ss] (DUAL COOK) pad twice. TEMP will flash.
. Touch the (MINUTE PLUS/START) pad.
Convection Fan Symbol will flash on and off. and [_ 447) are displayed
repeatedly while preheating is in the process.
5. When the oven reaches the programmed temperature, Convection Fan Symbol will stop
flashing and begin rotating and an audible signal will sound 4 times, and the temperature
will be displayed. The oven will automatically hold at the desired temperature for 15
minutes. This will allow time to finish preparing the food to be cooked. You may open
the door anytime during this holding time.
6. Open the door. The cooking time will be displayed.
7. Place food in the oven. Close the door.
Touch the (MINUTE PLUS/START) pad.
Convection Fan Symbol will rotate and Microwave Symbol will flash.
The cooking time will count down to zero. When the timer reaches zero, all indicators will go out andan
audible signal will sound. The time of day will reappear on the display.
PWN
After cooking, the fan will remain on for a while to lower the temperature of the electronic or mechani: al
components in case that the excess temperature remain in the unit.
11

Sharp R-8680(B) Specifications

Power

AC line voltage	220V, 50Hz
microwave power required	1.3 kW
dual power required	2.8 kW
convection power required	1.6 kW
grill power required	2.6 kW

Output Power

microwave output power	650 W
convection heating element output power	1500 W
grill heating element output power	1000 W

Frequency

microwave frequency	2450 MHz

Capacity

oven capacity	36 litres (1.3 cu.ft.)
turntable tray size	365mm

Weight and Dimensions

outside dimensions	555mm(W) x 380mm(H) x 516mm(D)
cavity dimensions	375mm(W) x 254mm(H) x 385mm(D)
weight	30 kg
