Sharp R-8680(B) User Manual

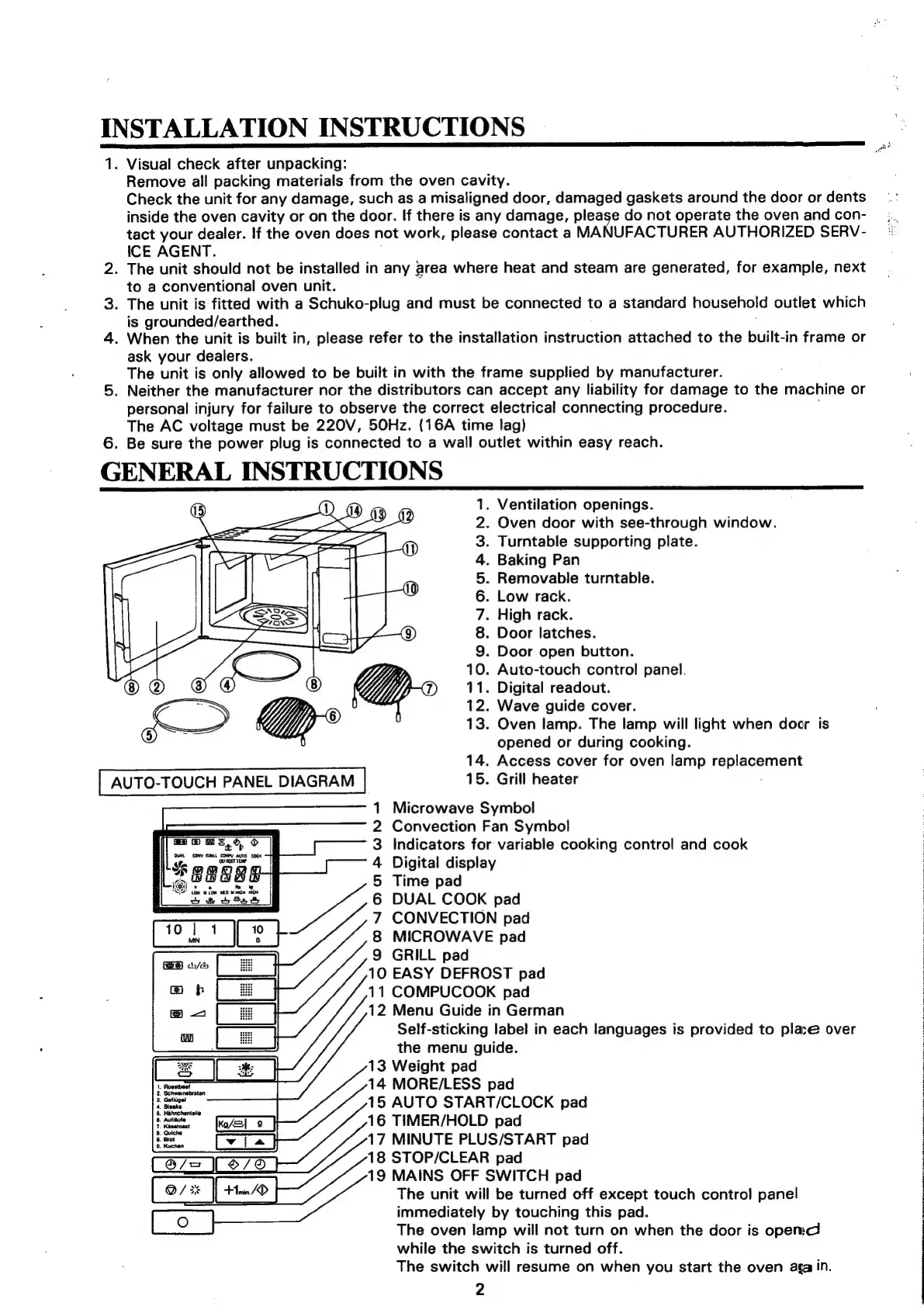

INSTALLATION INSTRUCTIONS
1. Visual check after unpacking:
Remove all packing materials from the oven cavity.
Check the unit for any damage, such as a misaligned door, damaged gaskets around the door or dents
inside the oven cavity or on the door. If there is any damage, nee e do not operate the oven and con-
tact your dealer. If the oven does not work, please contact a MANUFACTURER AUTHORIZED SERV-
ICE AGENT.
2. The unit should not be installed in any area where heat and steam are generated, for example, next
to a conventional oven unit.
3. The unit is fitted with a Schuko-plug and must be connected to a standard household outlet which
is grounded/earthed.
4. When the unit is built in, please refer to the installation instruction attached to the built-in frame or
ask your dealers.
The unit is only allowed to be built in with the frame supplied by manufacturer.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or
personal injury for failure to observe the correct electrical connecting procedure.
The AC voltage must be 220V, 50Hz. (16A time lag)
6. Be sure the power plug is connected to a wall outlet within easy reach.
GENERAL INSTRUCTIONS
. Ventilation openings.
. Oven door with see-through window.
. Turntable supporting plate.
. Baking Pan
. Removable turntable.
. Low rack.
. High rack.
. Door latches.
. Door open button.
10. Auto-touch control panel.
11. Digital readout.
12. Wave guide cover.
13. Oven lamp. The lamp will light when door is
opened or during cooking.
14. Access cover for oven lamp peplacemer't
15. Grill heater
Microwave Symbol
Convection Fan Symbol
Indicators for variable cooking control and cook
Digital display
Time pad
DUAL COOK pad
CONVECTION pad
MICROWAVE pad
GRILL pad
10 EASY DEFROST pad
11 COMPUCOOK pad
12 Menu Guide in German
Self-sticking label in each languages is provided to place over
the menu guide.
13 Weight pad
14 MORE/LESS pad
15 AUTO START/CLOCK pad
16 TIMER/HOLD pad
17 MINUTE PLUS/START pad
18 STOP/CLEAR pad
19 MAINS OFF SWITCH pad
The unit will be turned off except touch control panel
immediately by touching this pad.
The oven lamp will not turn on when the door is opemcd
while the switch is turned off.
The switch will resume on when you start the oven aga in.
2
OANOAARWNH
to
TS ow w tow men wa recn
ch one
OBONOAHPWNH

Sharp R-8680(B) Specifications

Power

AC line voltage	220V, 50Hz
microwave power required	1.3 kW
dual power required	2.8 kW
convection power required	1.6 kW
grill power required	2.6 kW

Output Power

microwave output power	650 W
convection heating element output power	1500 W
grill heating element output power	1000 W

Frequency

microwave frequency	2450 MHz

Capacity

oven capacity	36 litres (1.3 cu.ft.)
turntable tray size	365mm

Weight and Dimensions

outside dimensions	555mm(W) x 380mm(H) x 516mm(D)
cavity dimensions	375mm(W) x 254mm(H) x 385mm(D)
weight	30 kg
