Shure MVI User Manual

Shure Incorporated
3/14
•
•
•
•
•
•

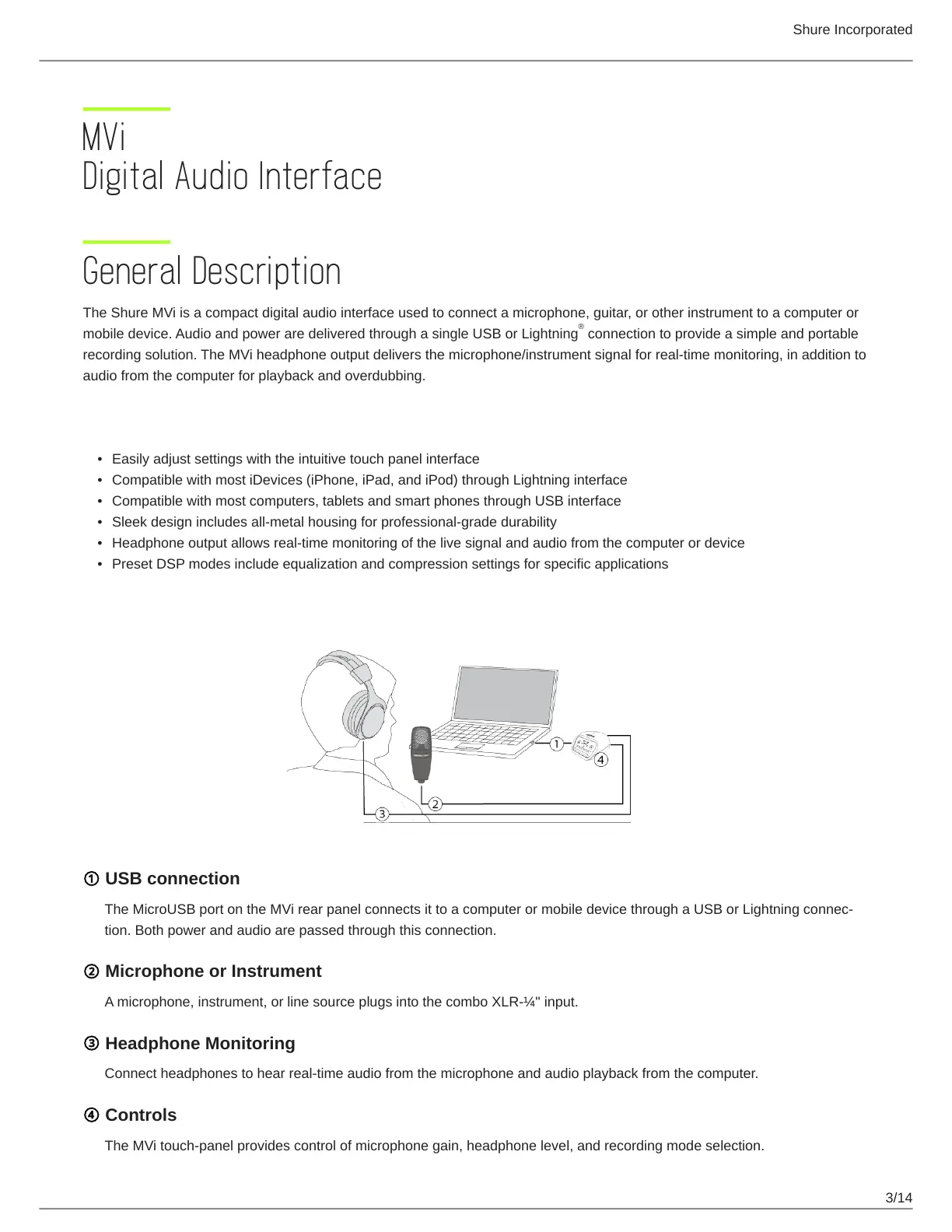

MVi 
Digital Audio Interface
General Description
The Shure MVi is a compact digital audio interface used to connect a microphone, guitar, or other instrument to a computer or
mobile device. Audio and power are delivered through a single USB or Lightning connection to provide a simple and portable
recording solution. The MVi headphone output delivers the microphone/instrument signal for real-time monitoring, in addition to
audio from the computer for playback and overdubbing.
Features
Easily adjust settings with the intuitive touch panel interface
Compatible with most iDevices (iPhone, iPad, and iPod) through Lightning interface
Compatible with most computers, tablets and smart phones through USB interface
Sleek design includes all-metal housing for professional-grade durability
Headphone output allows real-time monitoring of the live signal and audio from the computer or device
Preset DSP modes include equalization and compression settings for specific applications
Overview
① USB connection
TheMicroUSBportontheMVirearpanelconnectsittoacomputerormobiledevicethroughaUSBorLightningconnec
tion. Both power and audio are passed through this connection.
② Microphone or Instrument
A microphone, instrument, or line source plugs into the combo XLR-¼" input.
③ Headphone Monitoring
Connect headphones to hear real-time audio from the microphone and audio playback from the computer.
④ Controls
The MVi touch-panel provides control of microphone gain, headphone level, and recording mode selection.
®

Shure MVI Specifications

General

DSP Modes	Speech, Singing, Flat, Acoustic Instrument, Loud
Bit Depth	24-bit
Sample Rate	48 kHz
Adjustable Gain Range	0 to +36 dB
Phantom Power Protection	Yes
Function	Digital audio interface
Material	Metal
Color	Black
Compatibility	iOS, Android, Mac
Frequency Response	20 Hz to 20 kHz
Power Requirements	USB-powered
Input	XLR
Output	3.5mm
