Commissioning
8.2 Scaling the analog output
NOTE!
The analog output function for Q2 is available only in the
DT35 and DL35 distance sensors.
NOTE!
If the "near" teach point is taught in at a distance greater
than the "far" teach point, the output behavior is inverted.
You can scale the analog output of the sensor within the specied measur-
ing range of the sensor. The measurement must be possible on the object
to be taught in at the time of the teach.
Factory setting:
• DT35: 4 mA / 0 V e 50 mm, 20 mA / 10 V e 10000 mm
• DL35: 4 mA / 0 V e 200 mm, 20 mA / 10 V e 50000 mm
• The resolution of the analog output is 12 bits.
Set the output behavior for the output Q2 (4 … 20 mA / 0 … 10 V / switch-
ing output 2) in expert mode. → See Chapter 8.5 on page 36
4.0
3.5
Min. Max.
10.0
0
Min. Max.
V
2
13 2

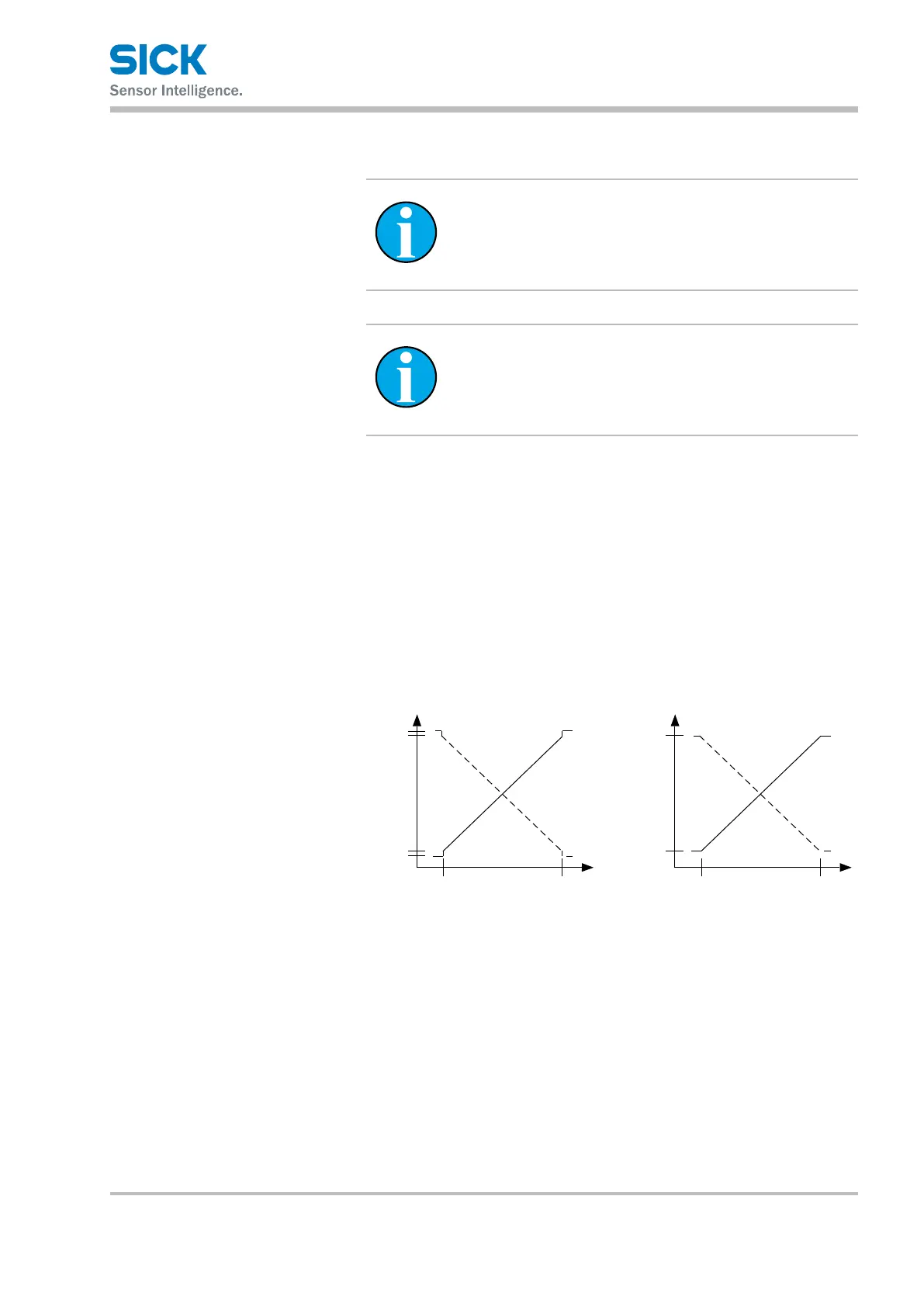

Fig. 15: Scaling the analog output
1 Teach point for distance near the sensor
2 Minimum span between the teach points of the distance near the sensor and
the distance far from the sensor: 50 mm
3 Teach point for distance far from the sensor
