Side-Power SE Series User Manual

4
2687
12 2020
-
SE80 & SE100 & SE120 & SE130 & SE150
MC_0124

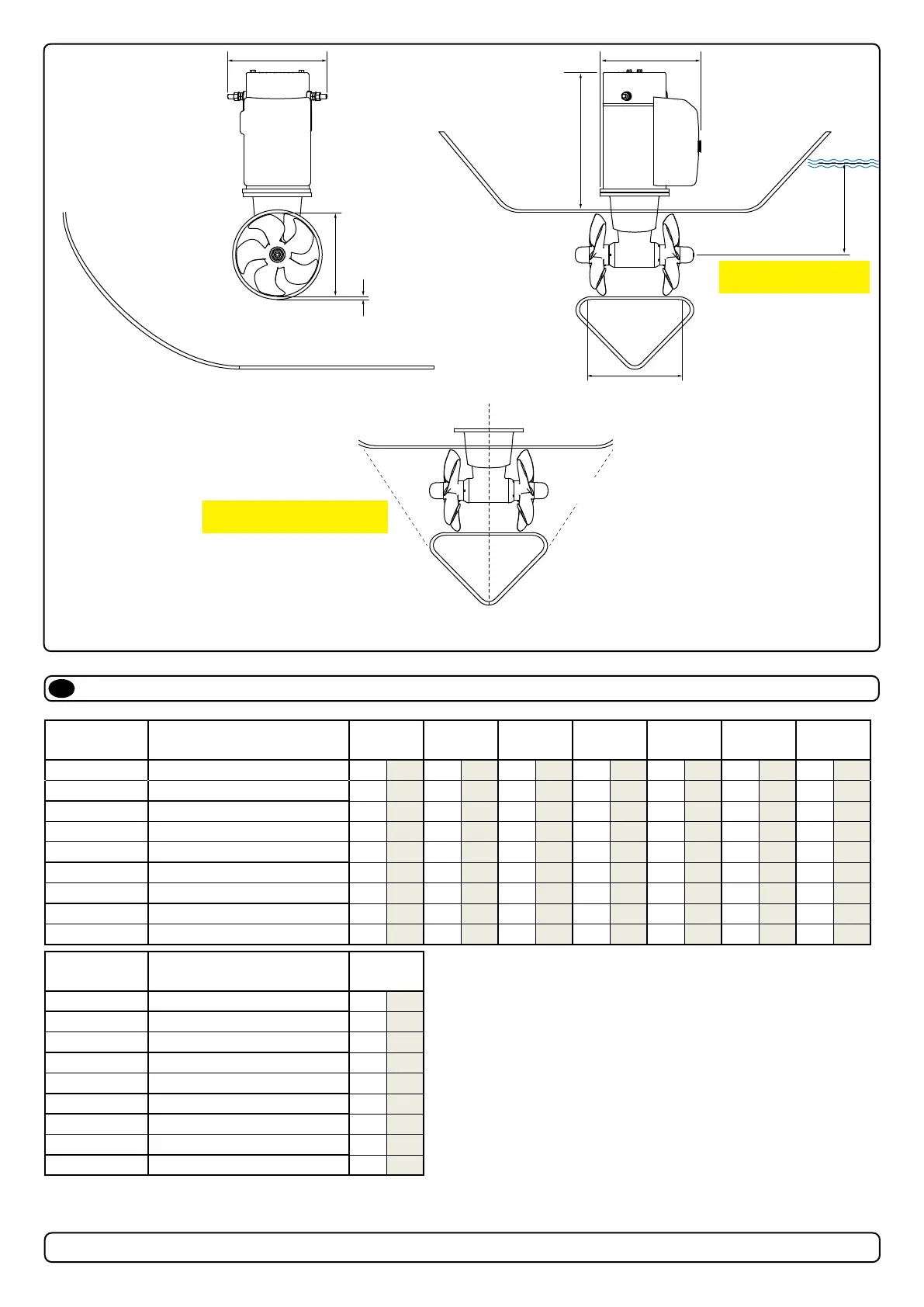

Thruster Measurements
EN
Measurement
code
Measurement description
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
ID Internal tunnel diameter 185 7,28 185 7,28 185 7,28 185 7,28 215 8,46 250 9,84 250 9,84
H Motor Height 352 13,86 344 13,54 393 15,47 393 15,47 394 15,51 398 15,67 398 15,67
W Width 252 9,92 261 10,28 292 11,50 272 10,71 266 10,47 296 11,65 277 10,91
L Length 206 8,11 206 8,11 240 9,45 240 9,45 243 9,57 250 9,84 249 9,80
WD Water Depth 185 7,28 185 7,28 185 7,28 185 7,28 215 8,46 250 9,84 250 9,84
TL Minimum tunnel length 179 7,05 179 7,05 179 7,05 179 7,05 233 9,17 253 9,96 253 9,96
TL (recommended) Recommended tunnel length 216 8,50 216 8,50 216 8,50 216 8,50 276 10,87 303 11,93 303 11,93
T (min) Minimum tunnel wall thickness 6 0,24 6 0,24 6 0,24 6 0,24 7 0,28 7 0,28 7 0,28
T (max) Maximum tunnel wall thickness 8 0,31 8 0,31 8 0,31 8 0,31 9 0,35 9 0,35 9 0,35
Measurement
code
Measurement description
mm inch
ID Internal tunnel diameter 215 8,46
H Motor Height 412 16,22
W Width 292 11,50
L Length 245 9,65
WD Water Depth 215 8,46
TL Minimum tunnel length 233 9,17
TL (recommended) Recommended tunnel length 276 10,87
T (min) Minimum tunnel wall thickness 7 0,28
T (max) Maximum tunnel wall thickness 9 0,35
*80
12v
*150
24v
*100
12v
*120
24v
*80
24v
*100
24v
*130
12v
*130
24v
*Valid for SE & SEP
MG_0075
TL
WD
H
WL
ID
T
Tunnel centre line
Twin Propeller
The gear leg/ propeller(s) must
never extend out of the tunnel
Propeller position will vary
with each thruster model
