Siemens Climatix HMI-TM User Manual

31 / 38
Siemens
Climatix HMI-TM CB1P3917en02
Building technologies 3BFunctions and operations 2015-07-02
4.11 Iconic mode
HMI-TM can show key information about HVAC equipment thanks to iconic mode
functionality. This function is available with BSP 10.xx or above.

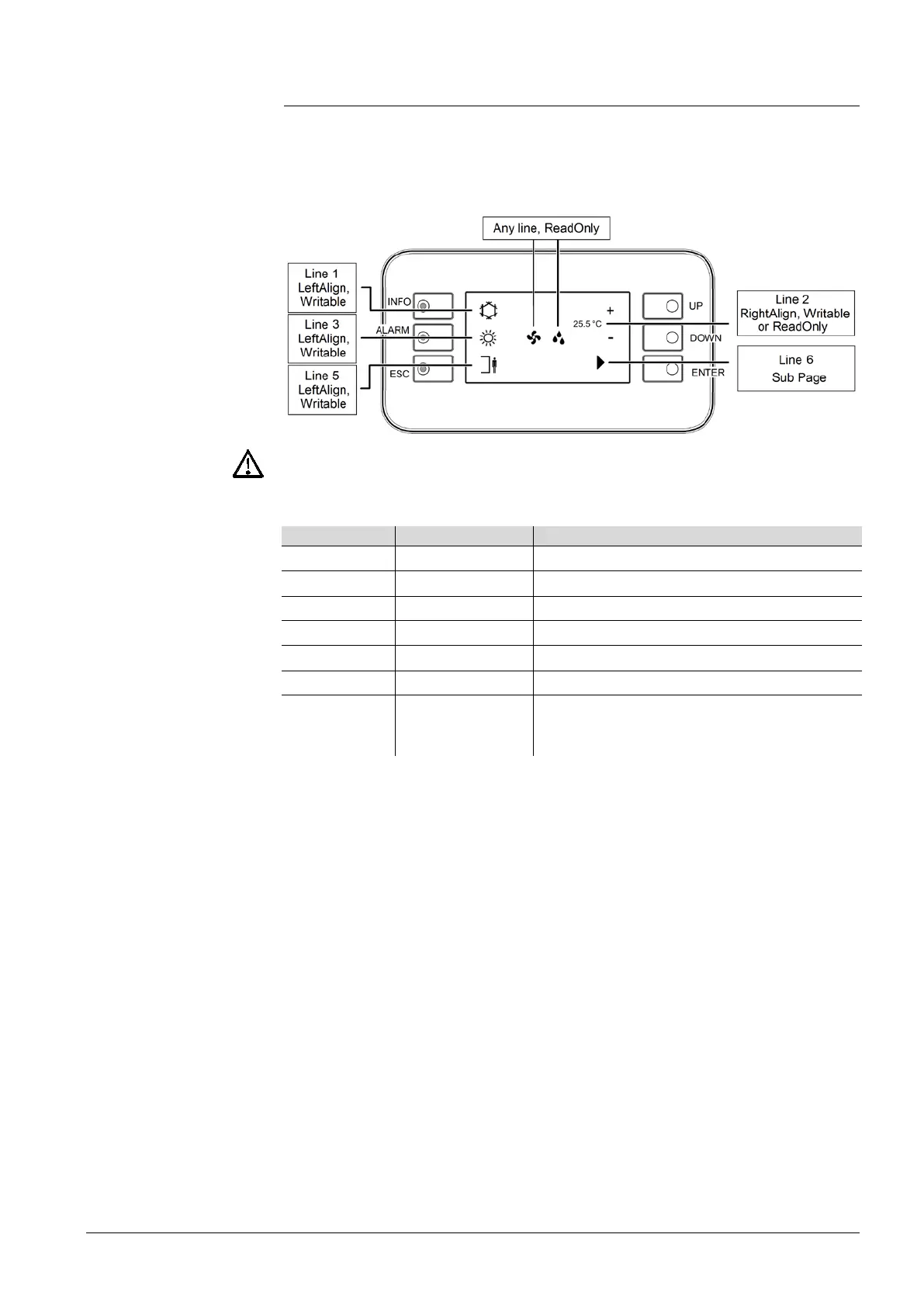

The screen layout of the iconic mode is shown as follows:
It is possible to display max 3 writeable icons and max 1 writeable value.
Key
Action
Description
INFO Press
To toggle the 1
st
enumeration icon on Line 1
ALARM Press
To toggle the 2
nd
enumeration icon on Line 3
ESC Press
To toggle the 3
rd
enumeration icon on Line 5
UP Press
To increase the value on Line 2
DOWN Press
To decrease the value on Line 2
ENTER Press
To go to the sub page defined on Line 6
Monkey Key
INFO &
ALARM
Press and hold
both keys for 5
seconds
To go to the defined target page of menu
mode
Key definition
