Siemens Climatix HMI-TM User Manual

8 / 38
Siemens Climatix HMI-TM CB1P3917en02
Building Technologies 2BHMI-TM overview 2015-07-02
3 HMI-TM overview
This section introduces the overview of Climatix HMI-TM.
3.1 Function keys

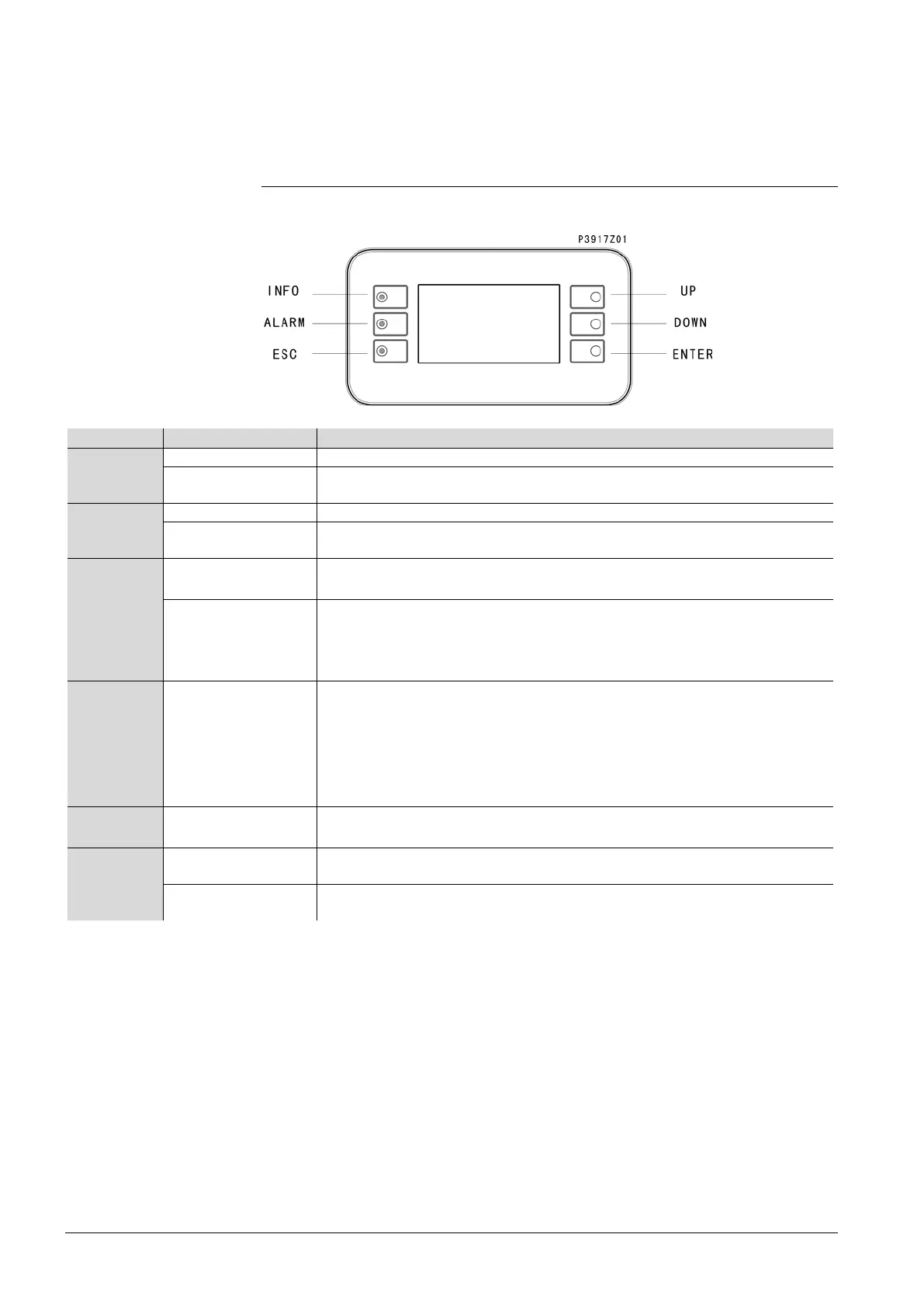

The function keys of HMI-TM are illustrated as follows:
* Hold the key for more than 2 seconds.
Key Name
Operation
Description
UP
Press
To increase the input value
Press and hold*
To enable the acceleration function to increase the value in a large
extent
DOWN
Press
To decrease the input value
Press and hold*
To enable the acceleration function to decrease the value in a large
extent
ENTER
Press
- To select one item;
- To confirm the selection
Press and hold*
- If logging in with one user level, press and hold key ENTER to
activate the log in/off page;
- If not, press and hold key ENTER to redirect to the password entering
page
INFO
Press
- If users have defined which page it redirects to and the current user
level has enough privileges, it will go to that page. Otherwise, it will
go to the home page (refer to Climatix SCOPE online help for detail
information about how to define the target page);
- In the password related page, the function of pressing key INFO
depends on the templates users defined (refer to
 Password Management for details)
ALARM
Press
To activate and switch among alarm related pages (refer to
 Alarm Management for details)
ESC
Press
- To cancel modification;
- To exit to the upper level of menu or back to previous page
Press and hold*
To redirect to the page displaying the menu of HMI settings and Local
connection

Siemens Climatix HMI-TM Specifications

General

Brand	Siemens
Model	Climatix HMI-TM
Category	Controller
Language	English
