Dimensioned
Drawings
B-2
P
L
C
S7-300, CPU Specifications CPU 312 IFM to CPU 318-2 DP
A5E001
1
1
190-01
CPU
313/314/315/315-2DP/316-2 DP

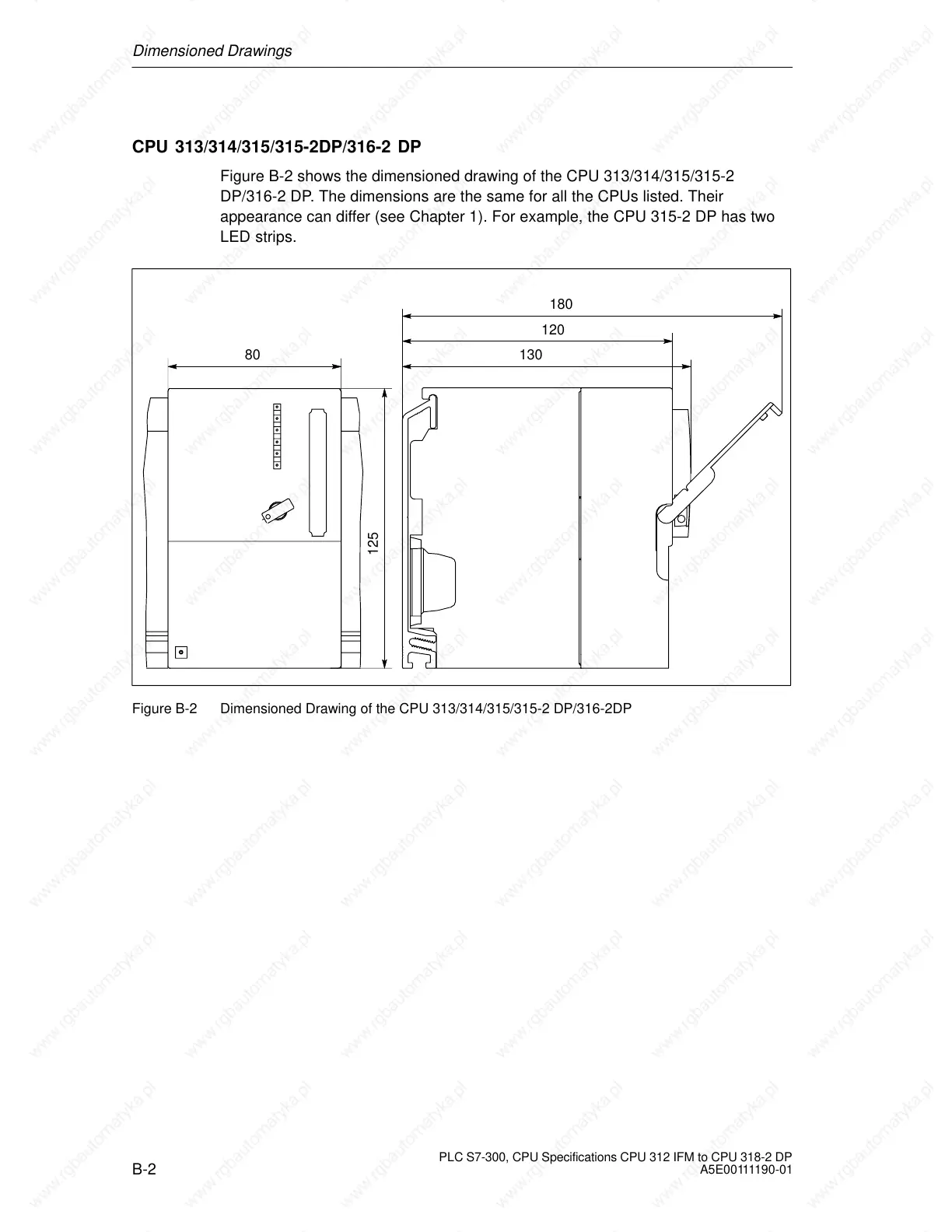

Figure B-2 shows the dimensioned drawing of the CPU 313/314/315/315-2
DP/316-2 DP
. The dimensions are the same for all the CPUs listed. Their
appearance
can
dif
fer (see Chapter 1). For example, the CPU 315-2 DP has two
LED strips.
125
130
120
180
80
Figure
B-2
Dimensioned Drawing of the CPU 313/314/315/315-2 DP/316-2DP
163
165
