Installation
2-26 SIMODRIVE base line A Start-Up
2.8. Grounding
General The ground connections must be implemented correctly in the cabinet.
The grounding terminal X131 is to be connected separately with the
protective conductor in NC.
PE2
X312
W2
V2
U2
M
3~
G
PE1
X311
W2
V2
U2
M
3~
G
X392
X391
X131
PE
W1
V1
U1
L1L2 L3 PE
SIMODRIVE base line A
NC
A1
A2
X3 X4
X1

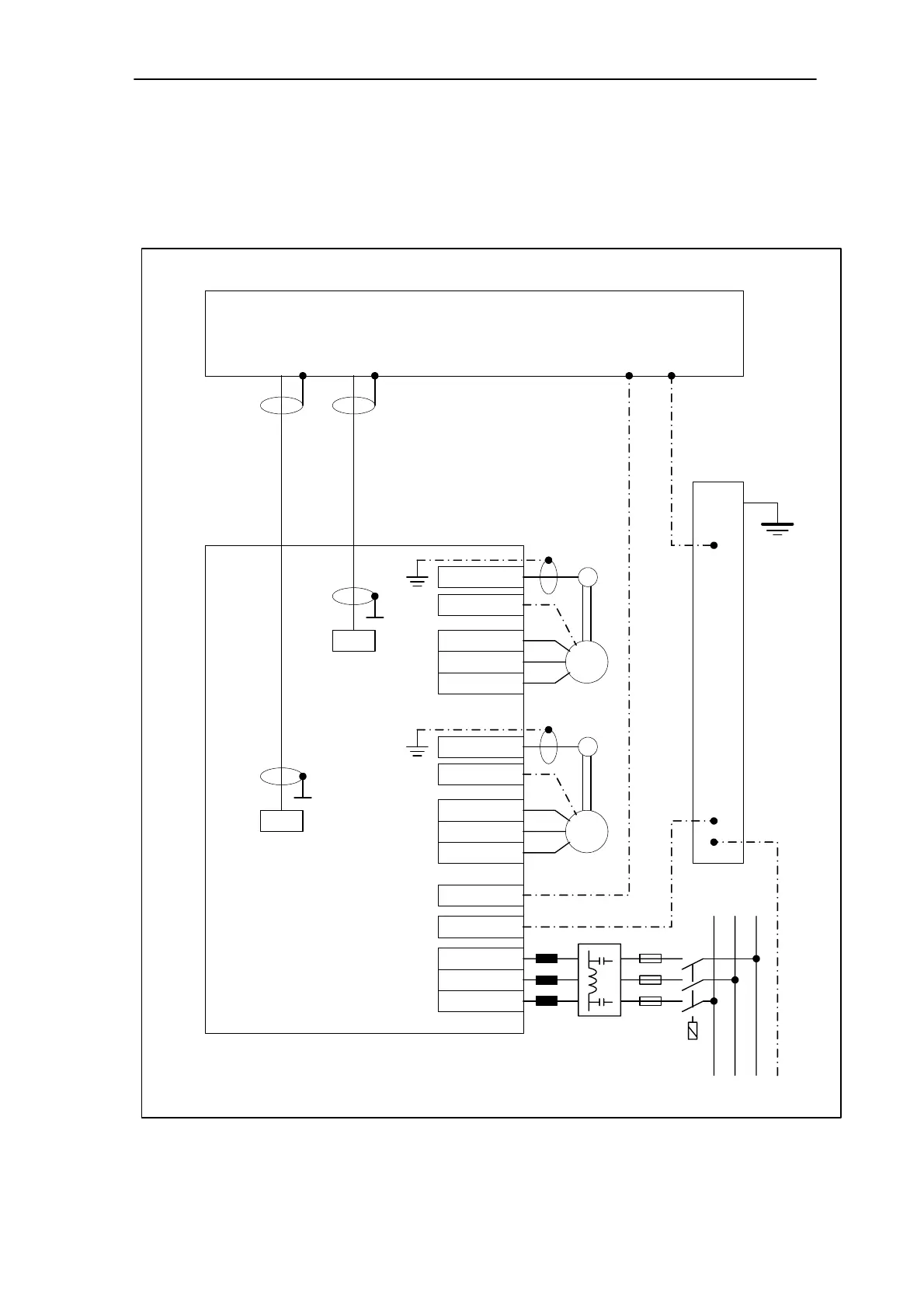

Fig. 2-15 Grounding diagram for SIMODRIVE base line A (2-axes)
