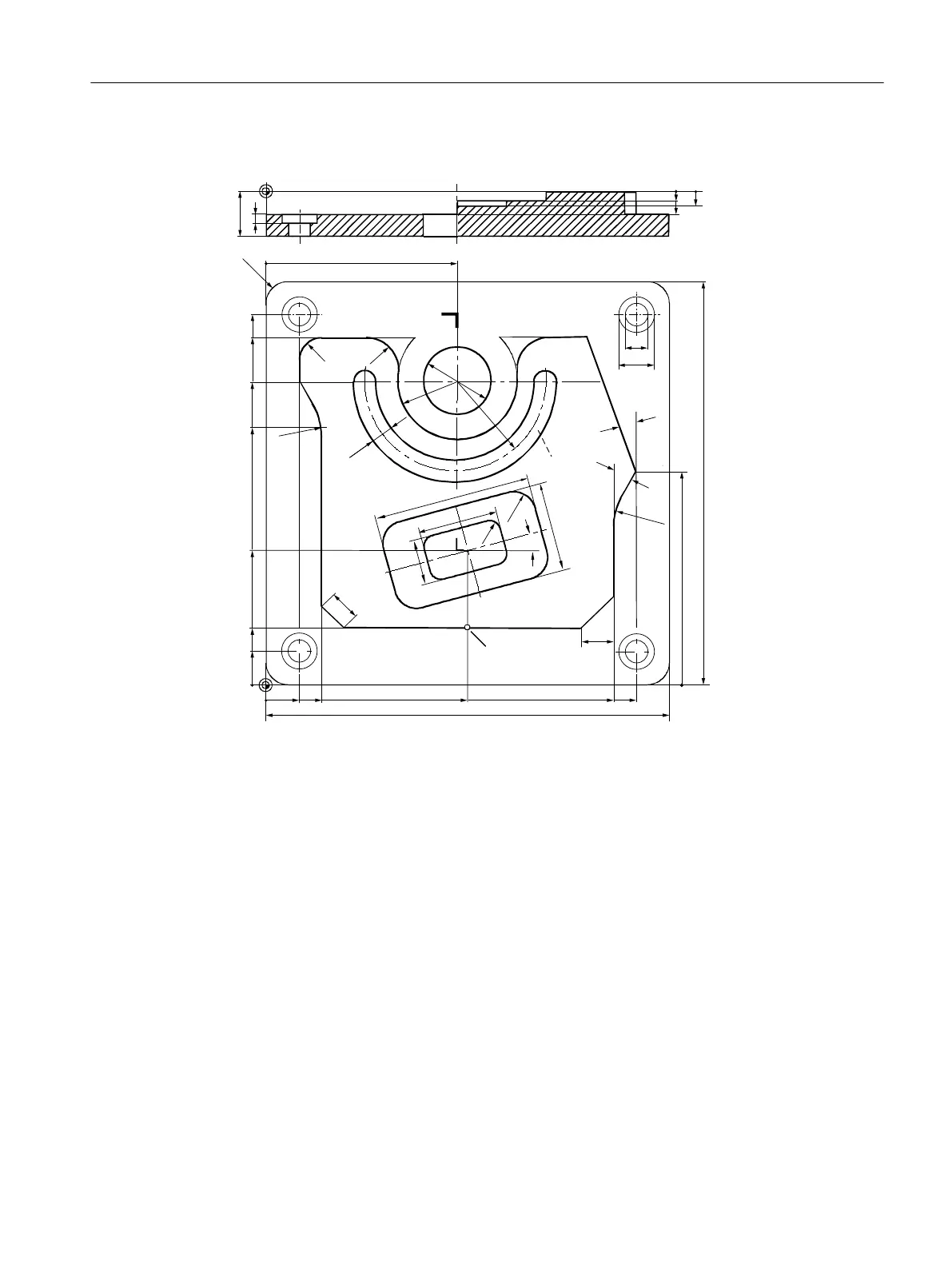

9.18.1 Workpiece drawing

5


5


5











R


5



r
5
r
5
5



5


5











;
<


















6WDUWSXQNW
7LHIH
9.18.2 Programming
1. Program header
1. Specify the blank.
Measurement unit mm
Work offset G54
Blank Cuboid
X0 -2.5abs
Y0 -2.5abs
X1 182.5abs
Y1 182.5abs
ZA 1abs
Creating a ShopMill program
9.18 Example, standard machining
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 355
