Siemens SINUMERIK 840DE SL Manual

Connecting
7.7 PROFINET
NCU 7x0.2
64 Manual, 02/2011, 6FC5397-0AP20-0BA0
7.7.4 Example PROFINET CBA configuration

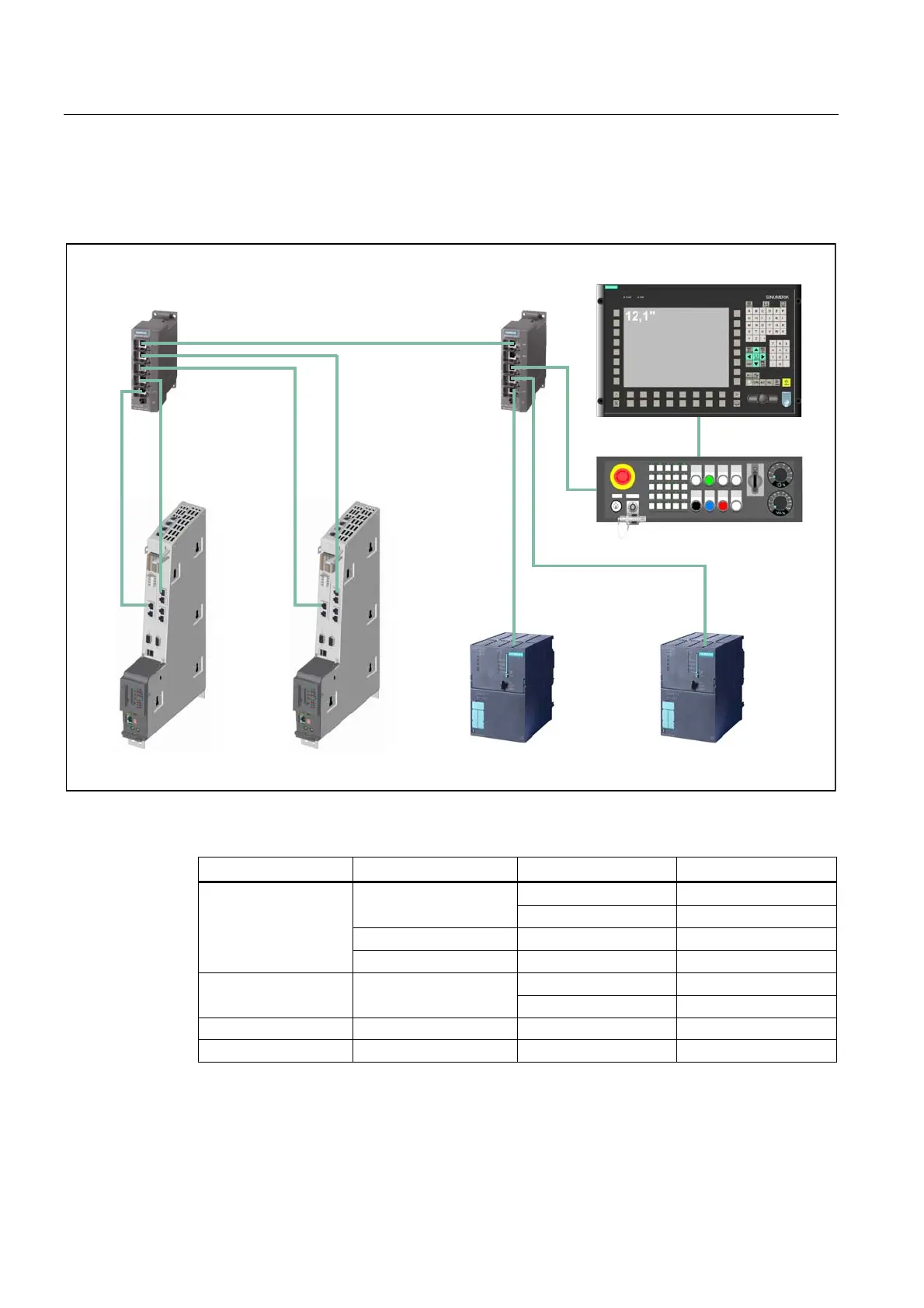

The following figure shows a typical system configuration with PROFINET CBA.
&HQWUDO 8QLW 8QLW 8QLW
6\VWHPQHWZRUN
6\VWHPQHWZRUN
6\VWHPQHWZRUN
6\VWHPQHWZRUN352),1(7&%$
6\VWHPQHWZRUN352),1(7&%$
6\VWHPQHWZRUN352),1(7&%$
1&831
6FDODQFH; 6FDODQFH;
;
1&831
&3831'3
033,(
3&823
&3831'3
3RUW
;
;
;
;
3RUW
352),1(7&%$
352),1(7&%$
Figure 7-10 Example PROFINET CBA configuration
Station name Module type Interface IP address
X120 192.168.200.1 NCU 730.2 PN
Port 1 192.168.200.2
PCU 50.3 X501 192.168.200.5
Central
MPP 483 IE X20 DHCP server 192.168.200.50
X120 192.168.200.11 Unit01 NCU 730.2 PN
Port 1 192.168.200.12
Unit02 CPU 319-3 PN/DP PN P1 192.168.200.22
Unit03 CPU 317-2 PN/DP PN P1 192.168.200.32
