PROFIBUS-DP - Parameterization in DIGSI
66
SIPROTEC PROFIBUS-DP - Communication profile
C53000-L1840-B001-03
4.2 Customization of the allocations
The identification whether an information is routed on system interface (PROFIBUS-
DP) is shown in the columns "Source system interface" and "Destination system inter-
face" in the DIGSI Configuration matrix.
A cross ('X') in this column indicates the associated information as "routed on system
interface".

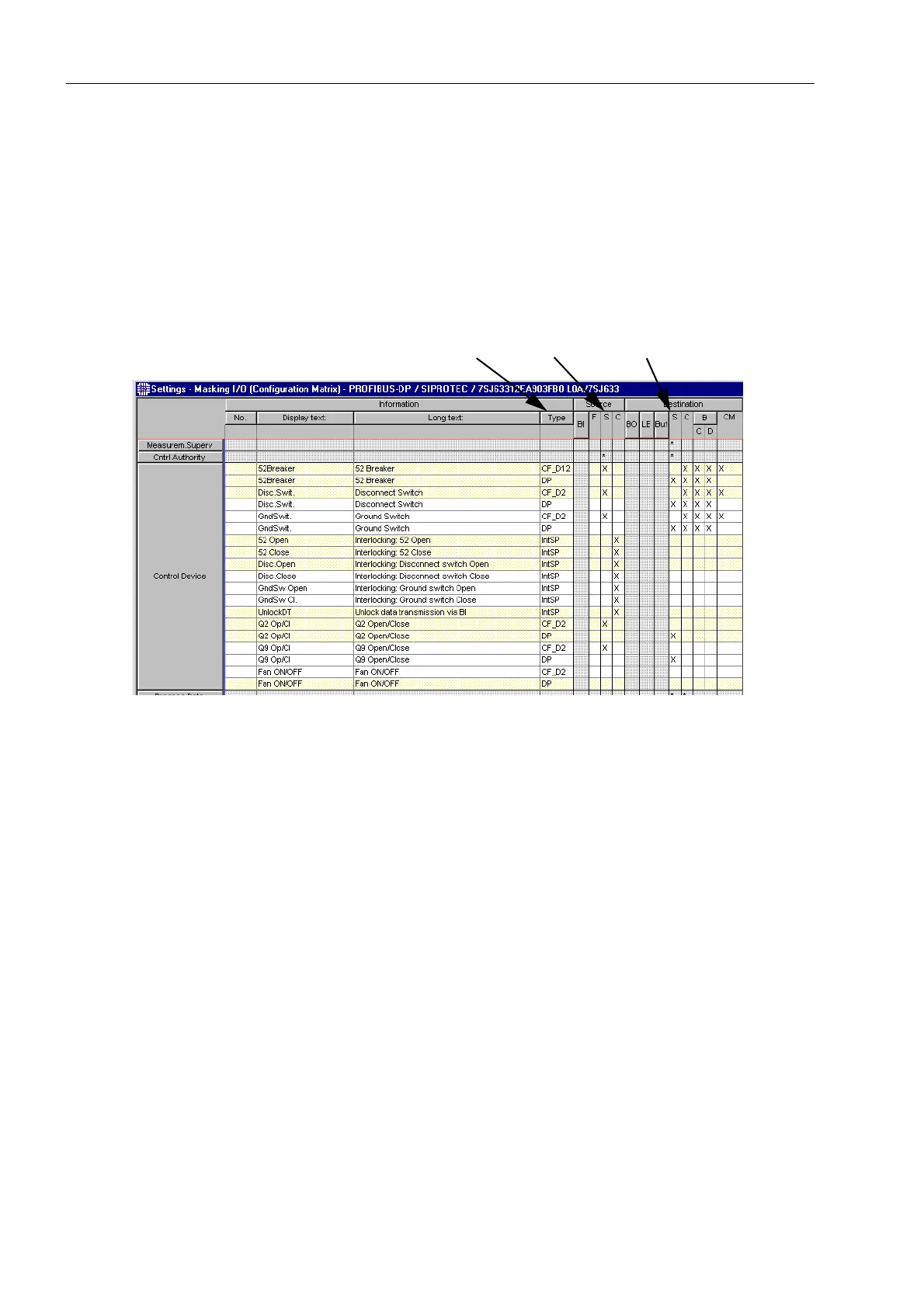

Figure 4-5 DIGSI Configuration matrix with columns for system interface routing
Source system
interface
The SIPROTEC object can be controlled via PROFIBUS-DP.
This is possible for the following information types:
Destination system
interface
The value of the SIPROTEC object is transmitted to the PROFIBUS-DP master.
This is possible for the following information types:
Destination
system interface
Source
system interfaceeInformation type
IntSP Internal single-point indication (tagging)
IntDP Internal double-point indication (tagging)
SC/DC Single control/Double control without feedback from process
SF/DF Single control/Double control with feedback from process
SP Single-point indication
DP Double-point indication
Out Output annunciation
IntSP Internal single-point indication (tagging)
IntDP Internal double-point indication (tagging)
MV Measured value
MVMV Power meter (metered measurand, source is a measured value)
PMV Pulse (metered measurand, source is a pulsed binary input)
TxTap Transformer tap position indication
