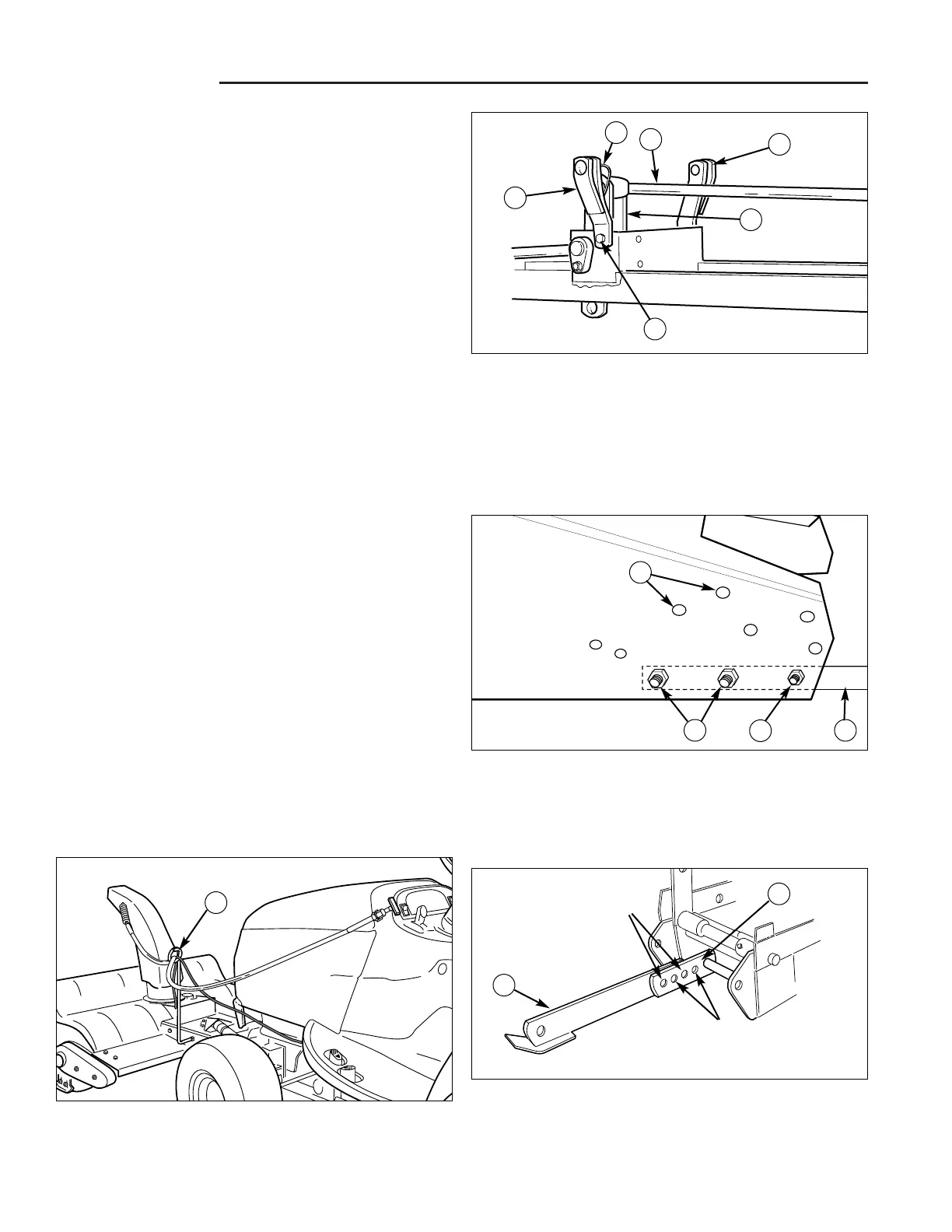

Initial Assembly
Assemble Ladder Hitch
1. Attach the hanger brackets (A, FIgure 17) using 5/16-
18 x 1” capscrews and nylock nuts (B). Do not
torque the nuts. The hanger brackets (A) should be
able to pivot freely.
2. Attach the lift rod (C, Figure 17) to the hitch lift arm
(D) using one 1/2” x 2” flat head clevis pin and safety
clip (E).
Figure 20. Assemble Snowthrower Lift Arm
A. Snowthrower Hitch
B. Snowthrower Lift Arm
A
B
Tractors
Equipped with 16-
1/2” Front TIres,
Use These Holes
Tractors Equipped with 18”
Front TIres, Use These Holes
Figure 18. Assembly Snowthrower Hitch
A. 7/16-14 x 1” Capscrew& Flange Nut
B. 3/8-16 x 1” Capscrew & Flange Nut
C. Snowthrower Hitch Arm
D. Deflector Cable Support Arm Mounting Holes
A
D
B
C
Figure 19. Deflector Control Cable Support Arm
A. Support Arm
A
Figure 17. Assemble Hitch
A. Hanger Bracket
B. 5/16-18 x 1 Capscrew & Nylock Nut
C. Lift Rod
D. Hitch Lift Arm
E. 1/2 x 2” Flat Head Clevis Pin & Safety Clip
A
E
C
D
B
A
Attach Snowthrower Hitch To Snowthrower
1 Attach the snowthrower hitch to the snowthrower and
secure with four 7/16-14 x 1” capscrews and flange
nuts & two 3/8-16 x 1 capscrews and flange nuts.
See Figure 18 for hardware locations.
Attach Deflector Control Cable Support Arm
1. Assemble the deflector control cable support arm (A,
Figure 19) to the left side of the snowthrower using
one 5/16-18 x 1” capscrew, lockwasher, and nut
using the holes (D) shown in Figure 18.
Attach Snowthrower Lift Arm
1. See Figure 20. Assemble the snowthrower lift arm
(A) to the snowthrower hitch (B) using two 1/2-13 x 1-
3/4” capscrews, lockwashers, and nuts. Insert the
capscrews from left to right in the holes shown.
