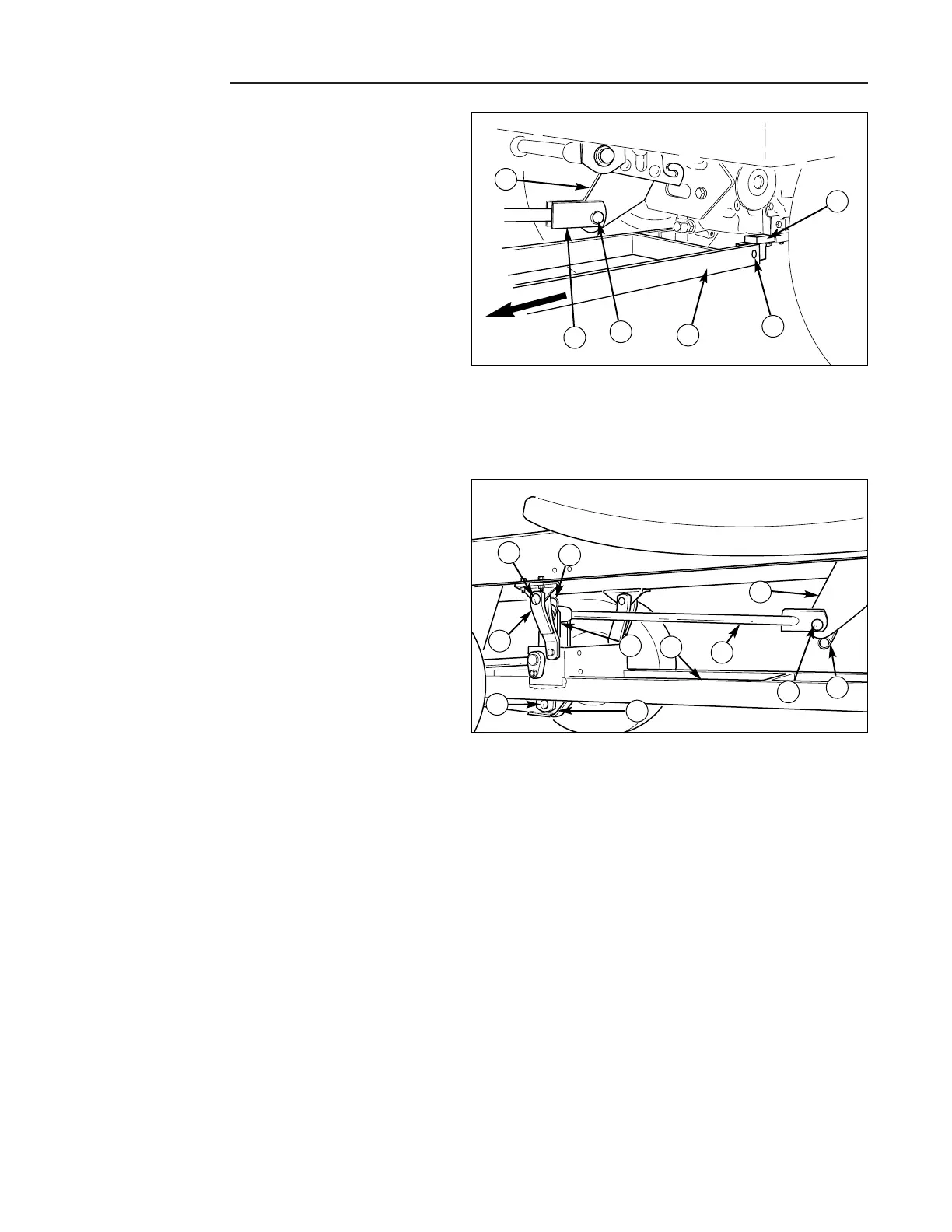

Hitch Installation
Figure 25. Lift Rod
A. 1/2 x 1-1/2” Round Head Clevis Pin
B. Snowthrower Lift Arm
C. Safety Clip
D. Ladder Hitch
E. Hitch Lift Arm
F. Lift Rod
G. Front Hitch Bracket
H. Lift Extension
I. 5/8 x 1-5/8” Flat Head Clevis Pin
J. 1/2 x 2” Flat Head Clevis Pin
I
C
D
E
F
G
H
B
J
A
C
Figure 24. Rear Brackets & Lift Extension
A. Rear Hitch Brackets D. Lift Rod
B. Ladder Hitch E. Lift Extension
C. 5/8x1-5/8” Flat Head Clevis Pin
A
E
D
C
B
Front
HITCH INSTALLATION
Install Hitch Onto Tractor
1. Slide the hitch and lift rod assembly under the tractor.
Use 4x4 wood blocks to support the hitch and help
align the mounting holes.
2. Attach the rear end of the ladder hitch (B, Figure 24)
the to the rear hitch brackets (A) using two 5/8 x 1-
5/8” flat head clevis pins (C) and safety clips.
3. Attach the front end of the ladder hitch (D, Figure 25)
to the front hitch brackets (G) using two 1/2 x 1-1/2”
round head clevis pins (A) and safety clips (B).
Install Lift Rod
1. If not already done, attach the lift rod (F, Figure 25) to
the hitch lift arm (E) using a 1/2 x 2” flat head clevis
pin and safety clip.
2. Attach the lift rod (F, Figure 25) to the attachment lift
extension (H) using a 5/8 x 1-5/8” flat head clevis pin
(I) and safety clip (C).
C
