Initial Assembly
Assemble Discharge Chute
1. Remove the three hold downs (B, Figure 21) and
plastite screws (A).
2. Lubricate the base of the discharge chute and ring
gear with automotive lithium grease.
3. Remove the plastic cover (B, FIgure 22) and loosen
the three taptite screws (A) securing the electric
spout rotator motor.
4. Install the discharge chute and secure to the chute
ring (C, Figure 21) using the three hold downs (B)
and plastite screws (A).
5. Adjust the motor so that it meshes with the discharge
chute ring gear and tighten the adjustment screws (A,
Figure 22).
Install Skid Shoes
1. Install the skid shoes using 3/8-16 x 3/4” carriage
bolts, washers, lockwashers, and nuts as shown in
Figure 23.
2. Adjust the skid shoes. See Adjustments section.

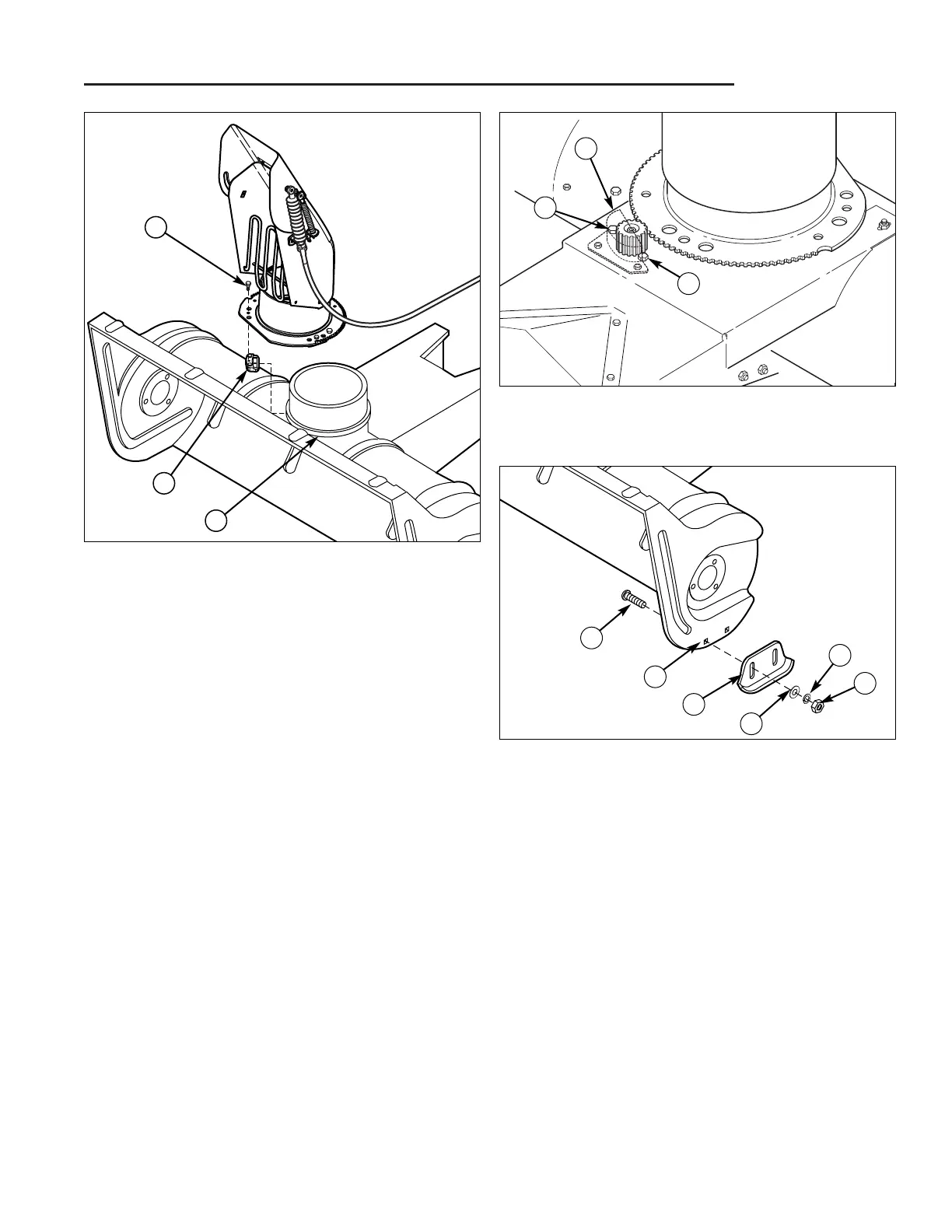

Figure 21. Assemble Discharge Chute
A. Plastite Screw
B. Hold-Down
C. Chute Ring
Figure 22. Discharge Chute Motor Adjustment
A. Adjustment Screws B. Plastic Cover
Figure 23. Skid Shoe Installation
A. Carriage Bolt, 3/8-16 x 3/4”
B. Snowthrower Housing
C. Skid Shoe
D. Washer
E. Lockwasher
F. Hex Nut
A
B
C
D
E
F
A
B
A
A
B
C
Connect Electric Chute
Rotator Wire Harness
1. Connect the electric discharge chute rotator motor
leads to the wire harness. Route the wire harness
through the control cable support arm (see Figure
19).
