16

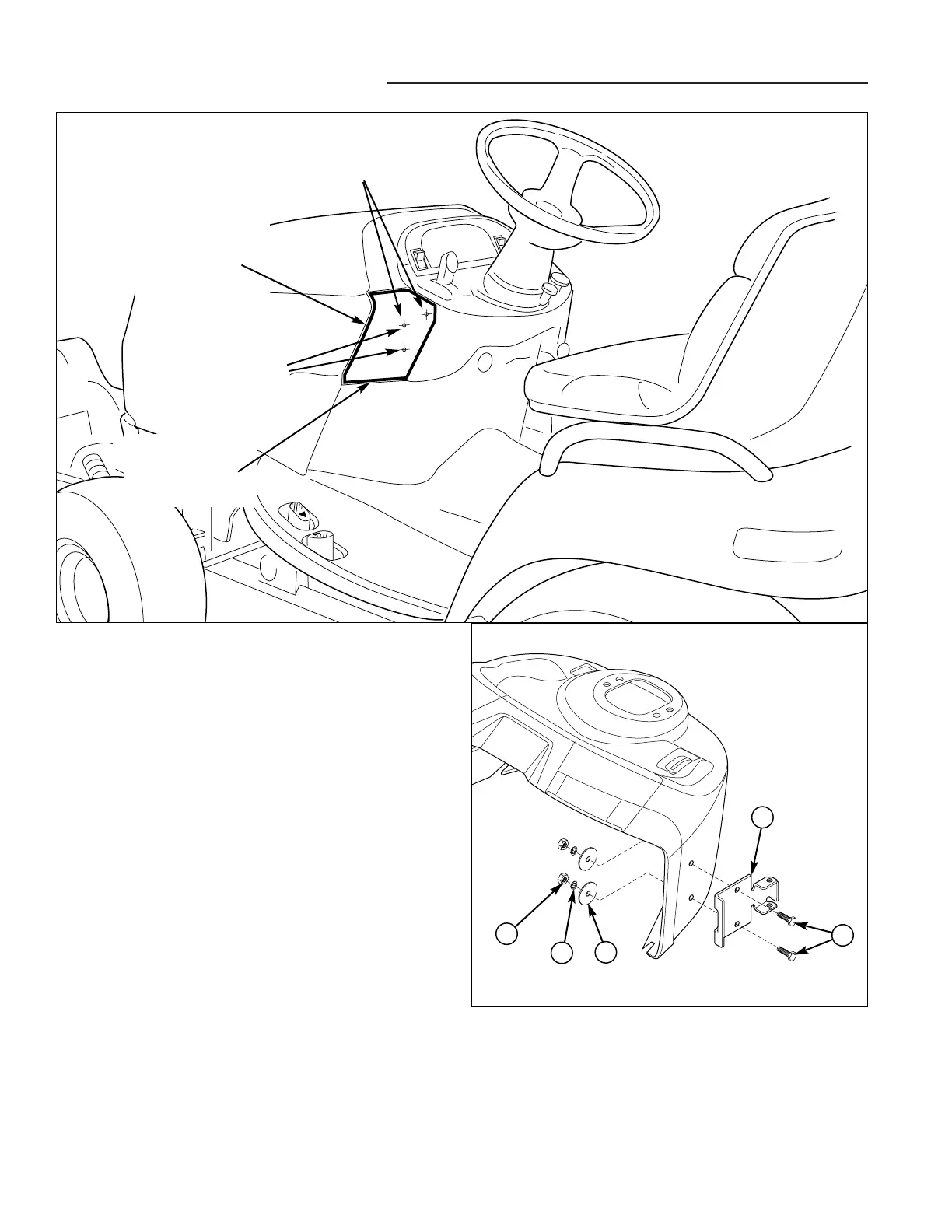

Mount Remote Deflector Control
Line Template Up
with Bottom of
Plastic
Dashboard
Line Template Up
with Edge of
Plastic
Dashboard
Early Models Mark
and Drill Two 9/32”
Holes
Current Models
Mark and Drill Two
9/32” Holes
DRILL HOLES TO MOUNT REMOTE
DEFLECTOR CONTROL
NOTE: Read through instructions before beginning.
Using the template provided on the back of this page,
drill two 9/32” holes used to mount the remote deflector
control.
1. Open the hood.
2. Cut out the template and place it on the lower left cor-
ner of the dashboard as shown above. Note that
early models used the upper set of holes, and current
models use the lower set of holes.
3. Mark and drill two 9/32” holes using the template to
locate the holes.
4. Mount the remote deflector mounting bracket (E,
Figure 38) control to the dashboard. Secure using
two 1/4-20 x 7/8” capscrews (A) through the bracket
(E) and dashboard.
5. Secure with 1/4 x 1-1/4 flatwashers (B), lockwashers
(C),.and nuts (D) on the BACKSIDE of the dash-
board.
DO NOT OVER-TORQUE. Over-torquing may
crack the dashboard.
Figure 38. Mount Control Bracket - Current Models
A. 1/4-20 x 7/8 Capscrews D. 1/4-20 Nuts
B. 1/4 x 1-1/4 Flatwashers E. Mounting Bracket
C. 1/4 Lockwashers
A
B
C
D
E
