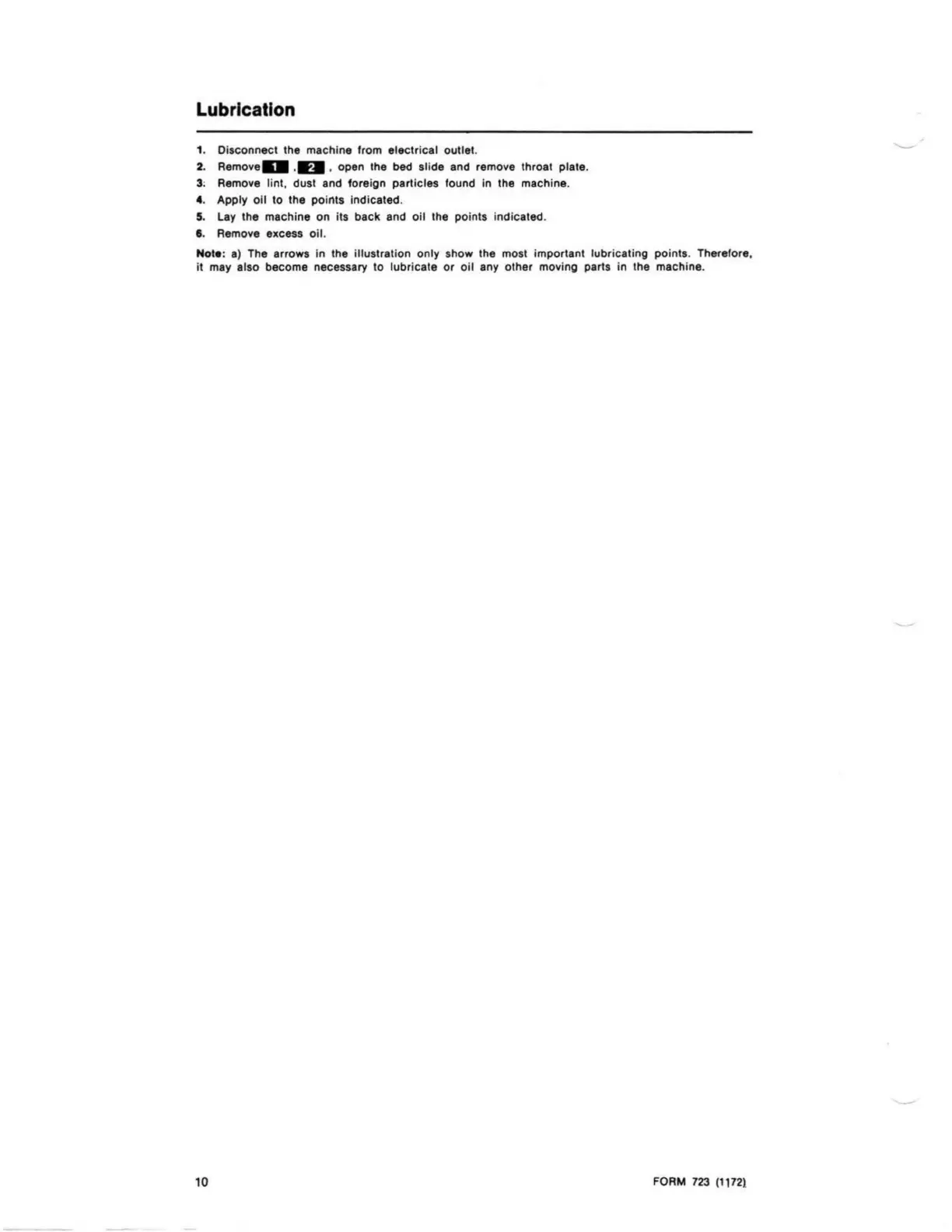

Lubrication
1.
Disconnect the machine from electrical outlet.
2.
Remove
D .g , open the bed slide and remove throat plate.
3; Remove lint, dust and foreign particles found in the machine.
4. Apply
oil
to the points indicated.
5. Lay the machine on its back and oil the points indicated.
I.
Remove excess oil.
Note:
a)
The arrows
In
the illustration only show the most important lubricating points. Therefore,
it may also become necessary to lubricate
or
oil
any other moving parts in the machine.
10
FORM 723
(11721
