Preparations – 11
English
Preparations – 11
English

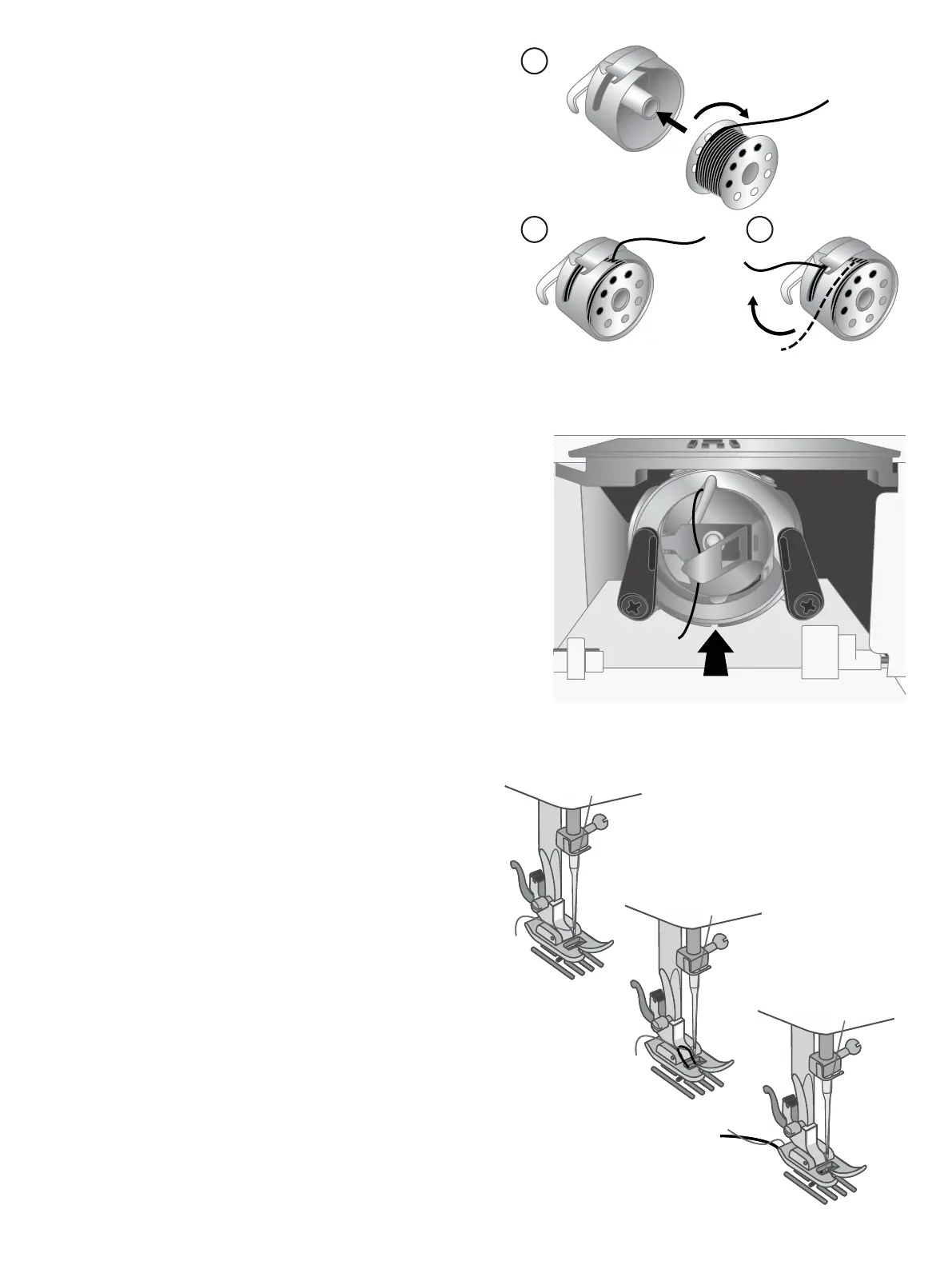

Inserting Bobbin Into Bobbin Case
Inserting Bobbin Case Into Shuttle
Picking Up Bobbin Thread
1. Hold the bobbin in your right hand with the thread running
clockwise, while holding the case in your left hand.
2. Insert the bobbin into the case with about 4” (10 cm) of
thread showing outside of the case.
3. While holding the bobbin securely down in the case, pull
the thread through the slit in the case and then underneath
the at tension spring. It will click when the thread is seat-
ed correctly in the tension.
4. Keep about 4 “ (10 cm) tail of thread trailing outside of the
case.
1. Hold the latch open, with locating pin straight up.
2. Slide the bobbin case onto the center spindle of the shuttle,
keeping the thread toward you.
3. Release the latch to lock the bobbin case in place.
NOTE: Be sure the locating pin ts into the locating groove at
the top of the shuttle.
1. Raise the presser foot lifter.
2. Holding needle thread loosely with your left hand, turn
hand wheel toward you (counter-clockwise) with your right
hand, rst lowering the needle and continuing until the
needle comes to its highest position.
3. Lightly pull up the top thread, and pick up bobbin thread,
which will appear through the needle plate slot.
4. Pull both top and bobbin threads together toward the back
of the machine under the presser foot, leaving about 6” (15
cm) clear.
NOTE: A quick way to pick up the bobbin thread is, with stra-
ight stitch selected, touch and release the reverse button.Your
machine will perform one down-up cycle and stop with the
needle up. Always stopping with the needle “fully up” is one
of the features of your computerized sewing machine.
1
2 3
