Singer S0230 User Manual

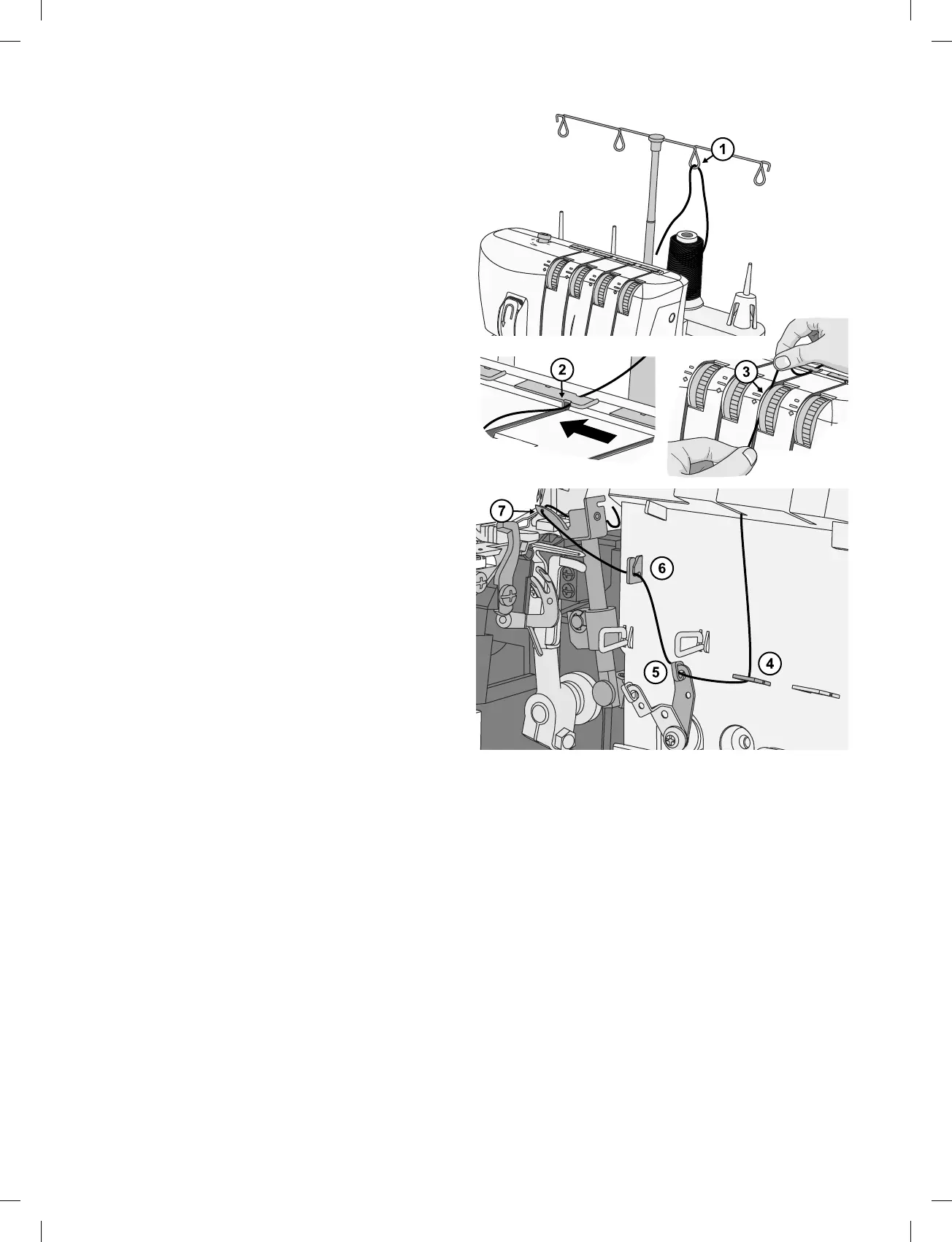

Threading the Upper Looper (Red)
When threading the upper looper, follow the thread path
marked with a red dot.
• Open the front cover. Raise the needle to highest position
by turning the hand wheel toward you. Raise the presser
foot. Pass the thread from back to front through the thread
guide on the thread stand (1). Use the tweezers to make the
threading easier.
• Pull the thread from right to left under the upper thread
guide (2).
• While holding the thread with both hands, pass it between
the tension discs and pull it down to make certain it is
properly placed between the tension discs (3).
• Thread the looper area of the machine following the red
color coded thread guides (4-6). Use the tweezers to make
the threading easier.
• Use the tweezers to bring the thread behind the lower
looper and thread into the hole in the upper looper from
front to back (7).
• Pull about 10cm (4″) of thread through the looper and place
it to the back of the stitch plate.
8 – Getting Ready to Sew
English

Singer S0230 Specifications

General

Built-In Stitches	23
Needle Threader	Automatic
Sewing Speed	750 stitches per minute
Free Arm	Yes
LED Lighting	Yes
Type	Mechanical
Maximum Stitch Length	4mm
Maximum Stitch Width	5mm
Bobbin	Class 15 transparent
Warranty	25-year limited warranty
Buttonhole Styles	1
Presser Feet	All-Purpose Foot, Zipper Foot, Buttonhole Foot, Button Sewing Foot
Dimensions	15.5 x 6.25 x 12 inches
