Smartrise HYDRO:EVOLVED Startup Manual

Soft Starter Startup Manual Sprecher + Schuh Hydraulic Installation
Page 4 © 2021 Smartrise Engineering, Inc. All Rights Reserved January 30, 2021
The table below lists the 6/12-Lead Delta Wiring.
Table 1: 6/12-Lead Delta Wiring
Terminals
T1
T2
T3
T4
T5
T6
Jump
Single
Voltage
(208-575 VAC)
1
2
3
4
5
6
N/A
Dual
Voltage
Low (220-240 VAC)
1,7
2,8
3,9
10,4
11,5
12,6
N/A
High (460-480 VAC)
1
2
3
10
11
12
4 and 7
5 and 8
6 and 9
Perform the following for a 3-Lead Delta Wiring.
1. Connect the 3/9-Lead motor lead to terminals T1/T2/T3 on the fault contactor.
2. Open cover on top of soft starter and turn DIP 15 ON.

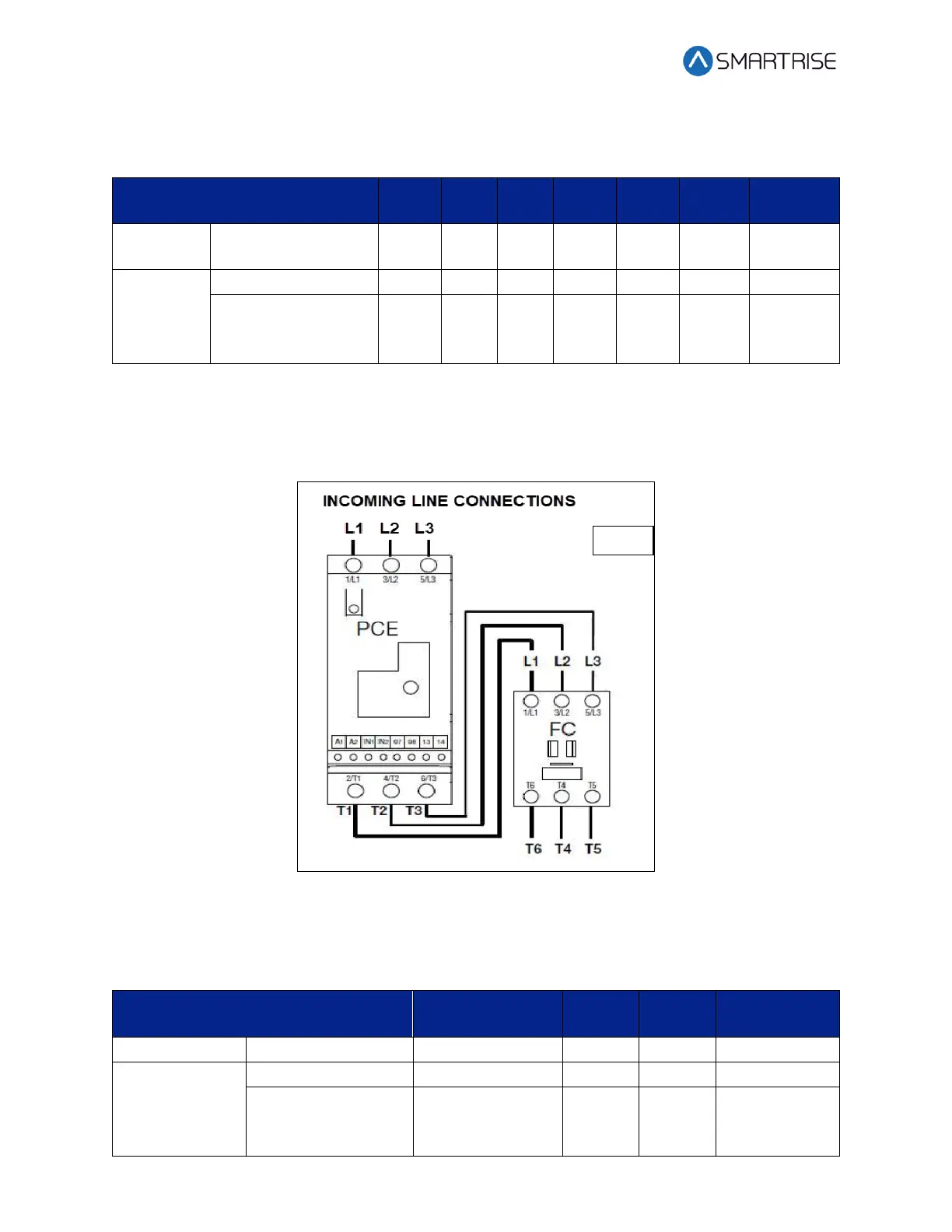

Figure 5: 3-Lead Line Wiring Configuration
The table below lists the 3/9-Lead Line Wiring.
Table 2: 3/9-Lead Line Wiring
Terminals
T6
T4
T5
Jump
3-Lead Motor
(208-575 VAC)
1
2
3
N/A
9-Lead Motor
Low (220-240 VAC)
1,6,7
2,4,8
3,5,9
N/A
High (460-480 VAC)
1
2
3
4 and 7
5 and 8
6 and 9
