Chapter 5 Display and setting of various functions
HRS-R Series 5.8 Signal for completion of preparation (TEMP READY)
5-19
5.8 Signal for completion of preparation (TEMP
READY)

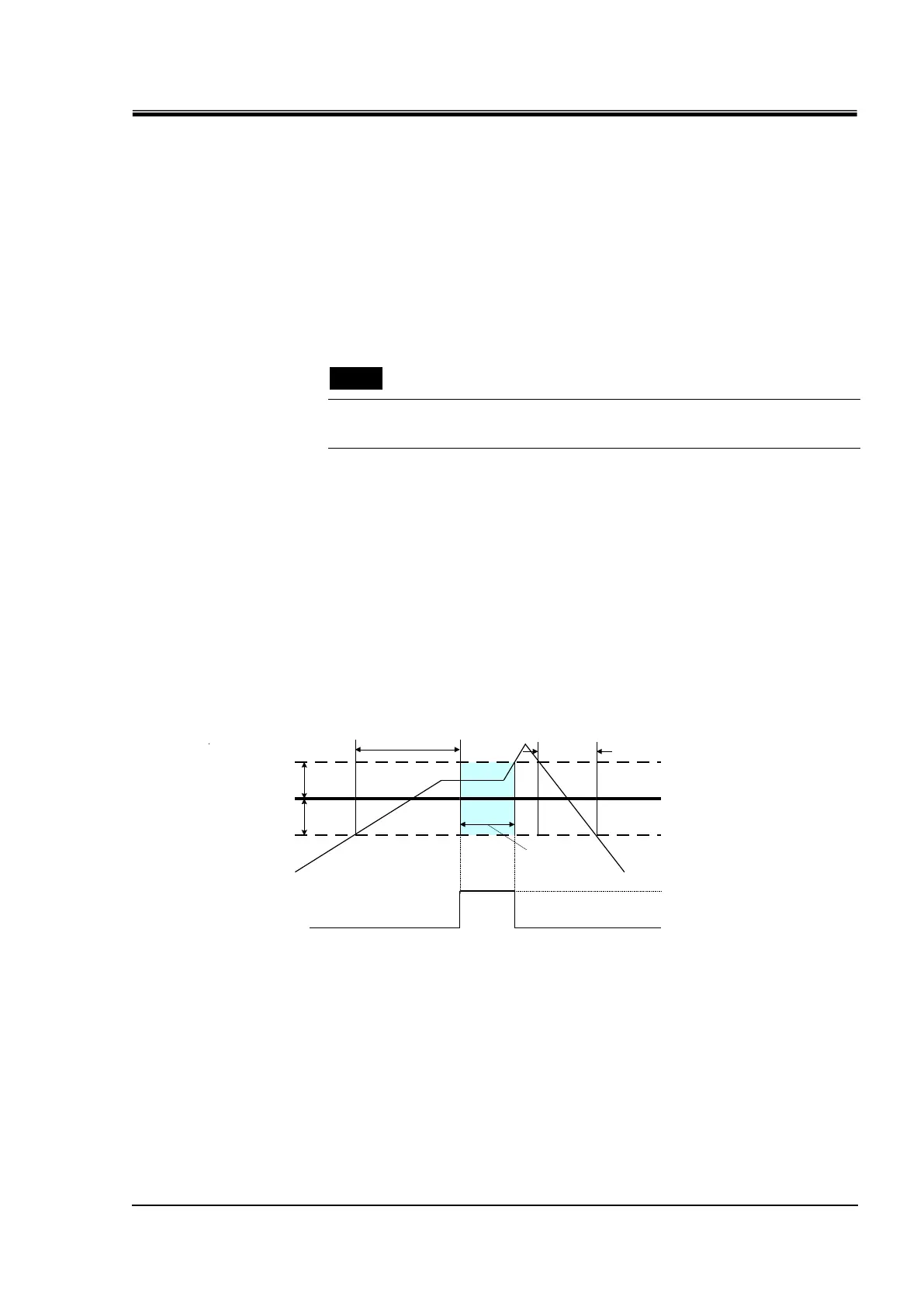

5.8.1 Signal for completion of preparation (TEMP READY)
This function sets the band width for the circulating fluid set temperature
(upper/lower temperature range) in order to notify the customer by
communication that the circulating fluid temperature has reached the band
range (upper/lower temperature range).The default setting of this function is
“OFF”.
【Tips】
This function is available when contact input/output and serial communication
is used. Refer to the Communications Operation Manual for more details.
An example is shown below.
Circulating fluid set temperature
：20
o
C
READY band width (upper/lower
temperature range)
：±2
o
C
READY time
：60 sec.
Preparation is completed 60 seconds after the circulating fluid temperature
reaches 18
o
C to 22
o
C.
Circulating set fluid 20℃
READY TEMP 22℃
READY TEMP 18℃
READY band width
（upper/lower temperature range） 2℃
READY band width
（upper/lower temperature range） 2℃
Circulating set fluid
READY time
６０sec
Completion
of preparation
READY time
lower than ６０sec
Contact output：State generation output
Serial：ON output
Contact output：State not generation output
Serial ：OFF output
Completion of preparation
（TEMP READY）
