Chapter 3 Transport and Setting Up
HRSH Series 3.5 Circulating Fluid Supply
3-35
3.5.3 Option K “Water fill port”
Open the cap of the water fill port and supply the circulating fluid to the fluid
level between “HIGH” and “LOW” levels of the fluid level gauge.

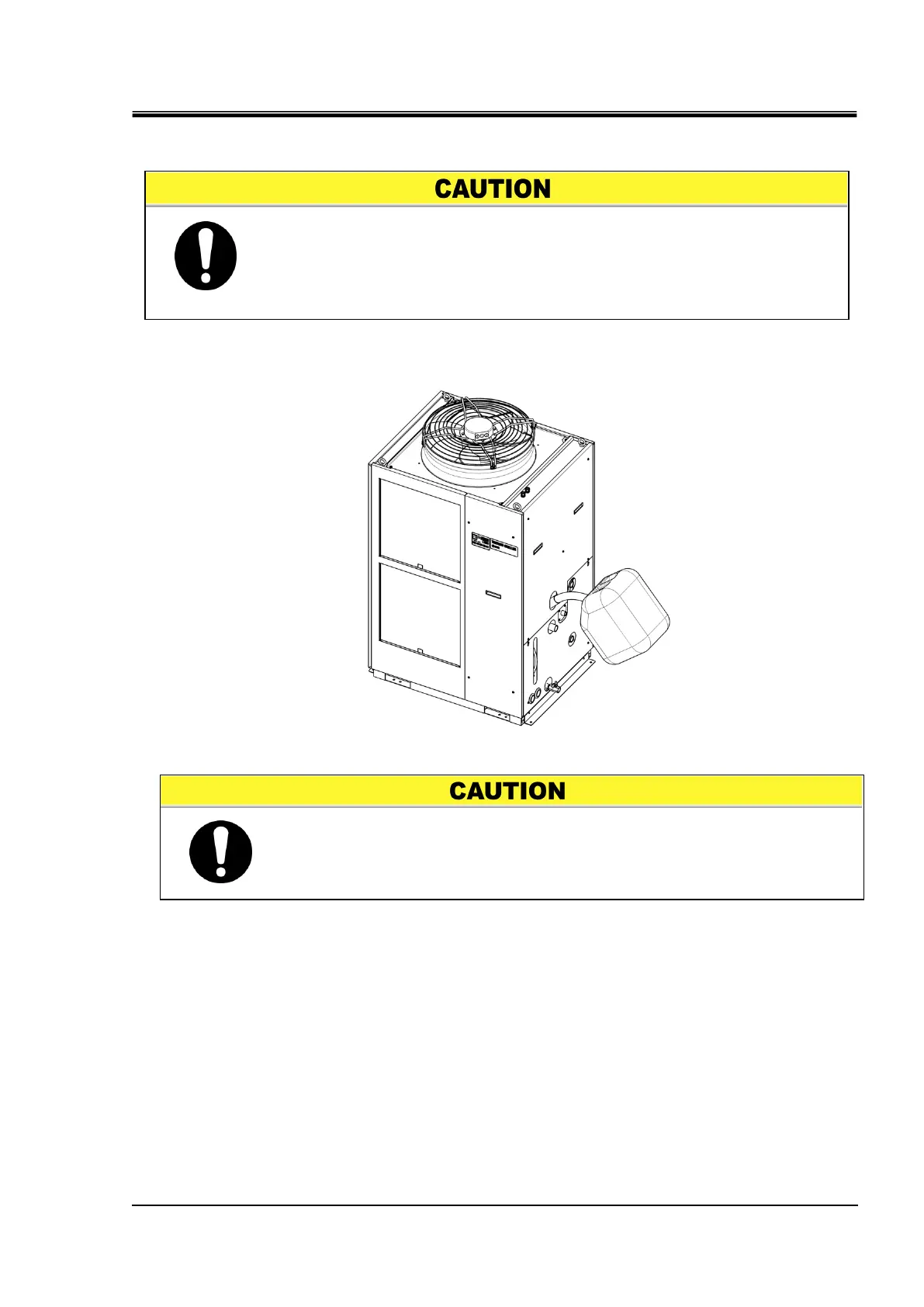

Fig. 3-24 Supplying the fluid to the water fill port (An example)
 Confirm that the fluid level is between “HIGH” and “LOW” levels of
the fluid level gauge. If it exceeds the specified level, the circulating
fluid will overflow.
 Be sure to connect the piping from the overflow port to the drainage
pit
 Comfirm that the valve of the drain port is closed to prevent the
supplied circulating fluid from draining out.
