SMC8014WN and SMC8014WN2 Wireless Cable Modem Gateway Administrator Manual
Hardware Overview
SMC8014WN Front and Rear panels
The front panel of the SMC8014WN Wireless Cable Modem Gateway contains a set of light-
emitting diode (LED) indicators that show the status of the Gateway and simplify
troubleshooting. Figure 1 shows the front panel LEDs and Table 1 describes the them.

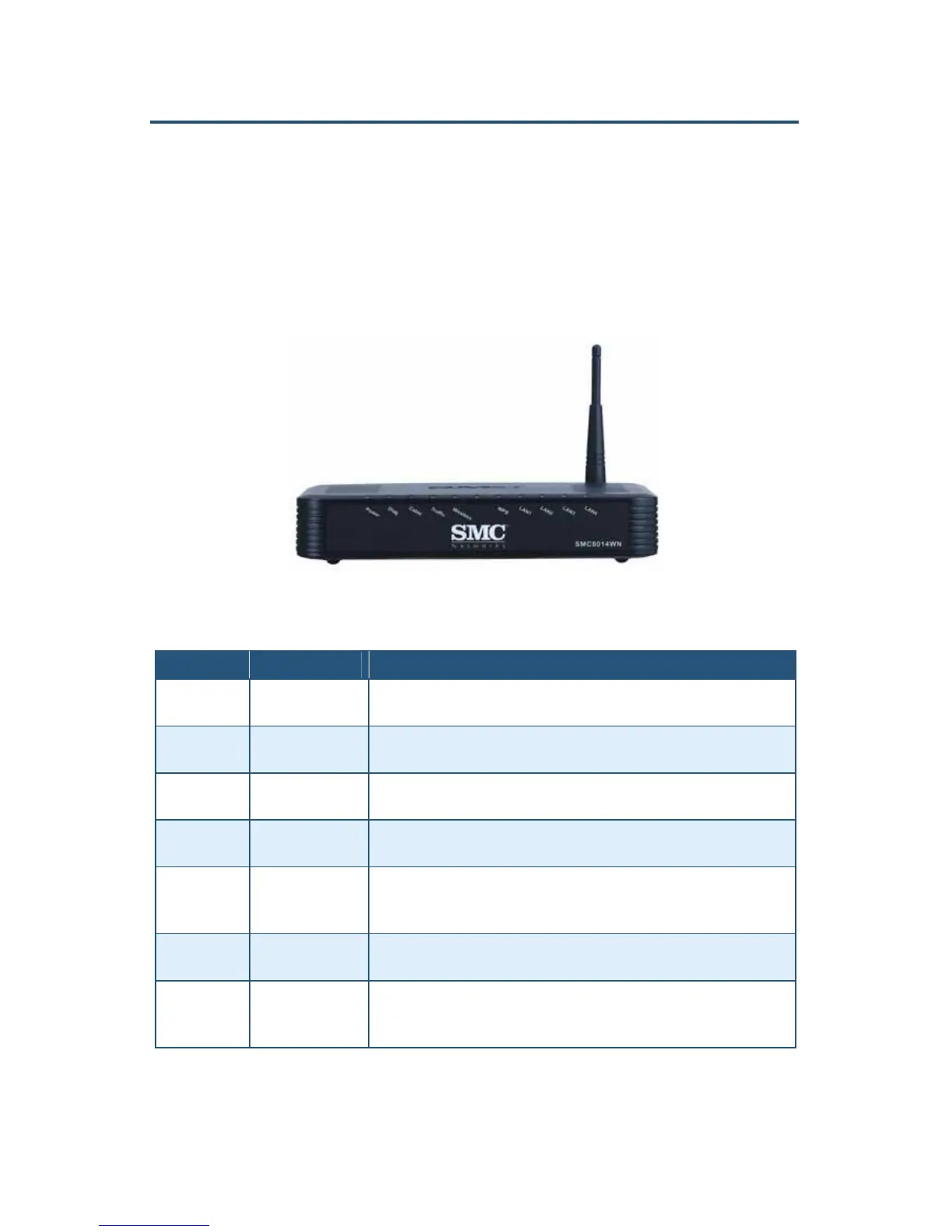

Figure 1. Front Panel of the SMC8014WN Wireless Cable Modem Gateway
Table 1. SMC8014WN Front Panel LEDs
LED Color Description
Power Green ON = power is supplied to the Gateway.
OFF = power is not supplied to the Gateway.
Diag Green ON =- system failure. Reboot Gateway.
OFF = normal operation.
Cable Green ON = connected to cable network successfully.
Flashing = attempting to connect to network.
Traffic Green ON = cable modem has finished CMTS registration.
Flashing = attempting to register with CMTS.
Wireless Green ON = wireless enabled.
Flashing = data is transmitting.
OFF = wireless disabled.
WPS Green ON = enabled.
Flashing = data is transmitting.
LAN (1-4) Green ON = connected at 10 Mbps or 100 Mbps.
Flashing = data is transmitting.
OFF = no Ethernet link is detected.
