3.5 Signal
The Controller uses two Ampseal connectors:

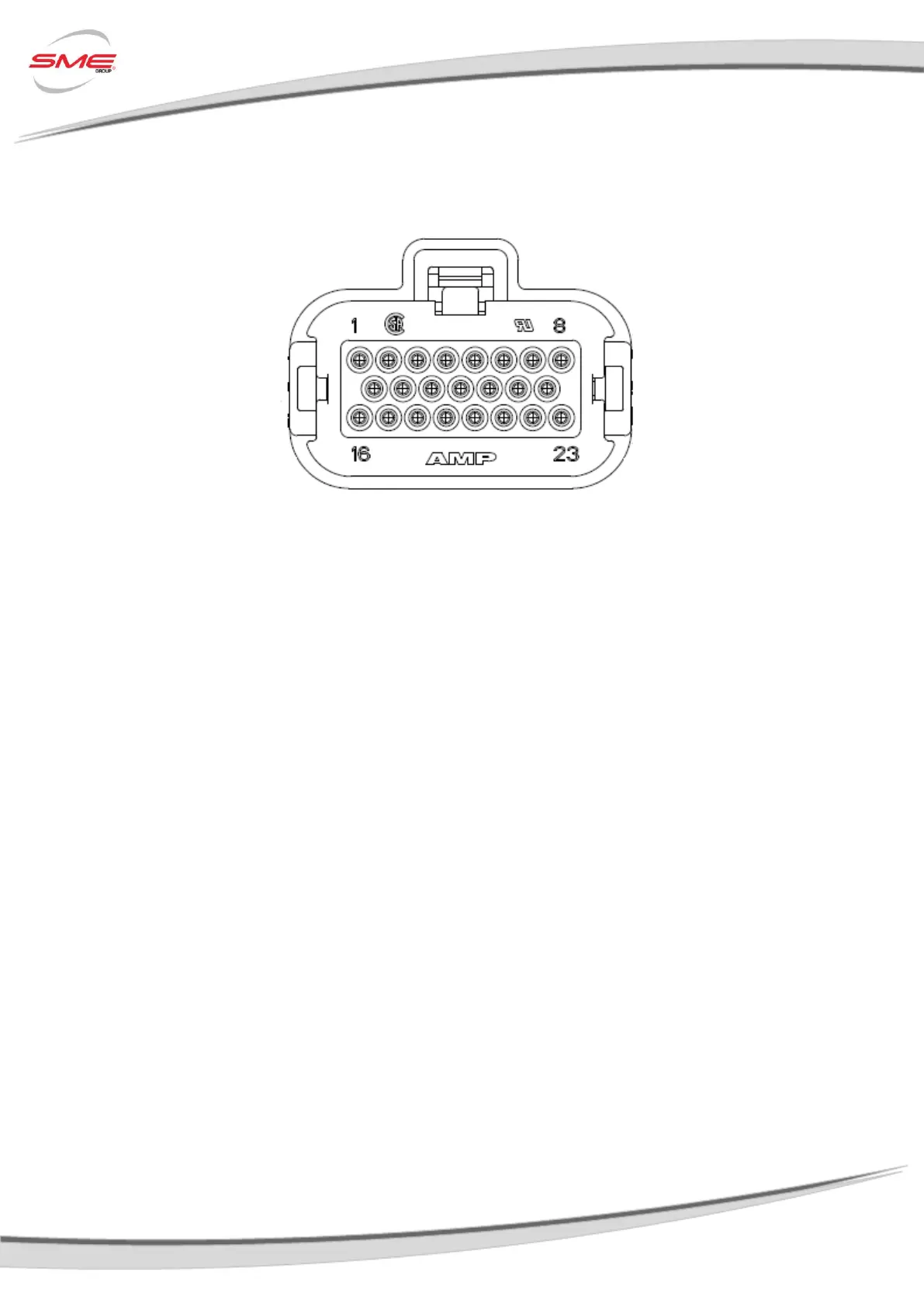

Figure 9 - Ampseal Connector
Refer to the following specifications for these connectors:
Number of Positions: 23 Position
Mounting Style: Wire
Termination Style: Crimp
Contact Type: Plug
Current Rating: 17 A
Housing Material: Thermoplastic
Material: Plastic
Number of Rows: 3 Row
Packaging: Bulk
Type: Female
Wire Gauge Range: 20 AWG - 16 AWG
For detailed product information, please refer to the AMPSEAL Connectors: Product Specification
108-1329.
In order to ensure a fine wiring, please refer to the AMPSEAL Automotive Plug Connector and
Header Assembly: Application Specification 114-16016.
