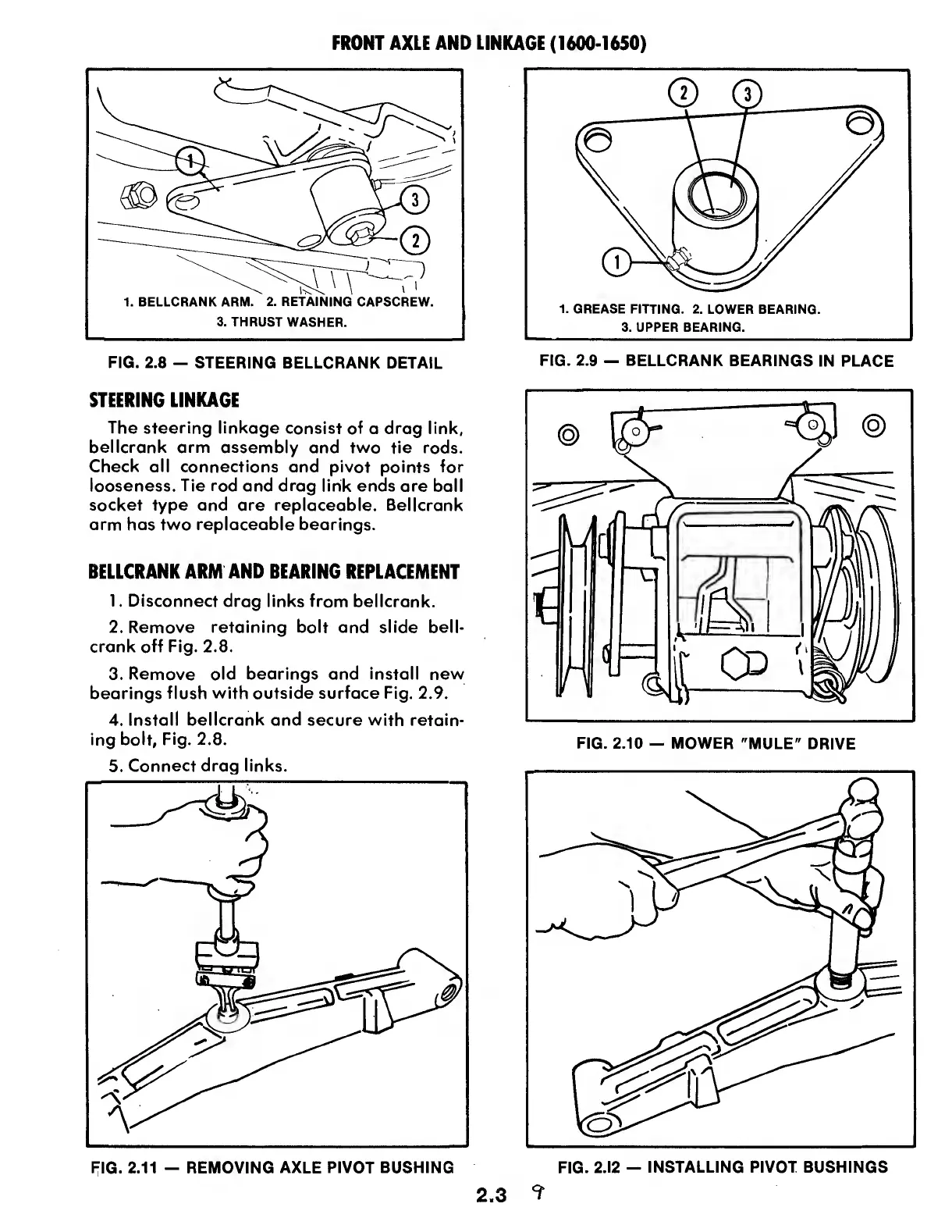

FRONT AXLE AND LINKAGE (1600-1650)
3. THRUST WASHER. _|
FIG. 2.8 — STEERING BELLCRANK DETAIL
STEERING LINKAGE
The steering linkage consist of a drag link,
bellcrank arm assembly and two tie rods.
Check all connections and pivot points for
looseness. Tie rod and drag link ends are ball
socket type and are replaceable. Bellcrank
arm has two replaceable bearings.
BELLCRANK ARM AND BEARING REPLACEMENT
1. Disconnect drag links from bellcrank.
2. Remove retaining bolt and slide bell¬
crank off Fig. 2.8.
3. Remove old bearings and install new
bearings flush with outside surface Fig. 2.9.
4. Install bellcrank and secure with retain¬
ing bolt, Fig. 2.8.
5. Connect drag links.
1. GREASE FITTING. 2. LOWER BEARING.
3. UPPER BEARING.
FIG. 2.9 - BELLCRANK BEARINGS IN PLACE
FIG. 2.12 - INSTALLING PIVOT BUSHINGS
2.3 ?
