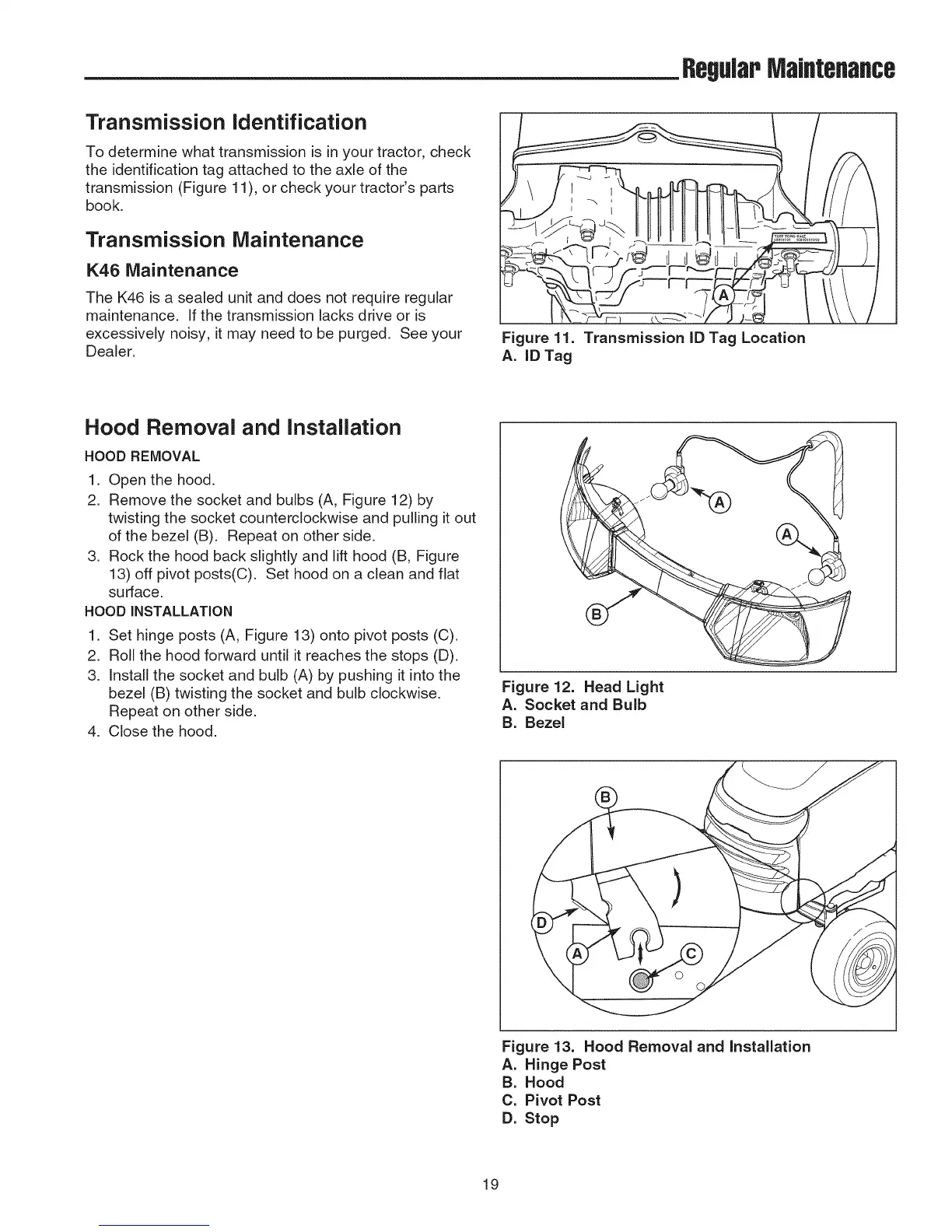

RegularMaintenance
Transmission identification
To determine what transmission is in your tractor, check
the identification tag attached to the axle of the
transmission (Figure 11), or check your tractor's parts
book.
Transmission Maintenance
K46 Maintenance
The K46 is a sealed unit and does not require regular
maintenance. If the transmission lacks drive or is
excessively noisy, it may need to be purged. See your
Dealer.
/
Figure 11. Transmission ID Tag Location
A. ID Tag
Hood Removal and installation
HOOD REMOVAL
1. Open the hood.
2. Remove the socket and bulbs (A, Figure 12) by
twisting the socket counterclockwise and pulling it out
of the bezel (B). Repeat on other side.
3. Rock the hood back slightly and lift hood (B, Figure
13) off pivot posts(C). Set hood on a clean and flat
surface.
HOOD INSTALLATION
1. Set hinge posts (A, Figure 13) onto pivot posts (C).
2. Roll the hood forward until it reaches the stops (D).
3. Install the socket and bulb (A) by pushing it into the
bezel (B) twisting the socket and bulb clockwise.
Repeat on other side.
4. Close the hood.
Figure 12. Head Light
A. Socket and Bulb
B. Bezel
Figure 13. Hood Removal and JnstaJJation
A. Hinge Post
B. Hood
C. Pivot Post
D. Stop
19
