Location and Function of Parts
MKS-8011 Menu Panel
SCU connector (D-sub 50-pin, special interface)
Connect to the MENU PANEL connector of the MKS-
8010/8010A System Control Unit.
Main Panel
a SCU (system control unit) connector (D-sub 50-pin,
special interface)
Connect to the MAIN PANEL connector of the MKS-
8010/8010A System Control Unit.
b HOST connector (USB Type B)
Connect to the DEVICE connector of the MKS-8010/
8010A System Control Unit.
c DEVICE connectors (USB Type A)
Connect to external devices with USB connectors.
For connectable devices, contact your Sony service
representative.

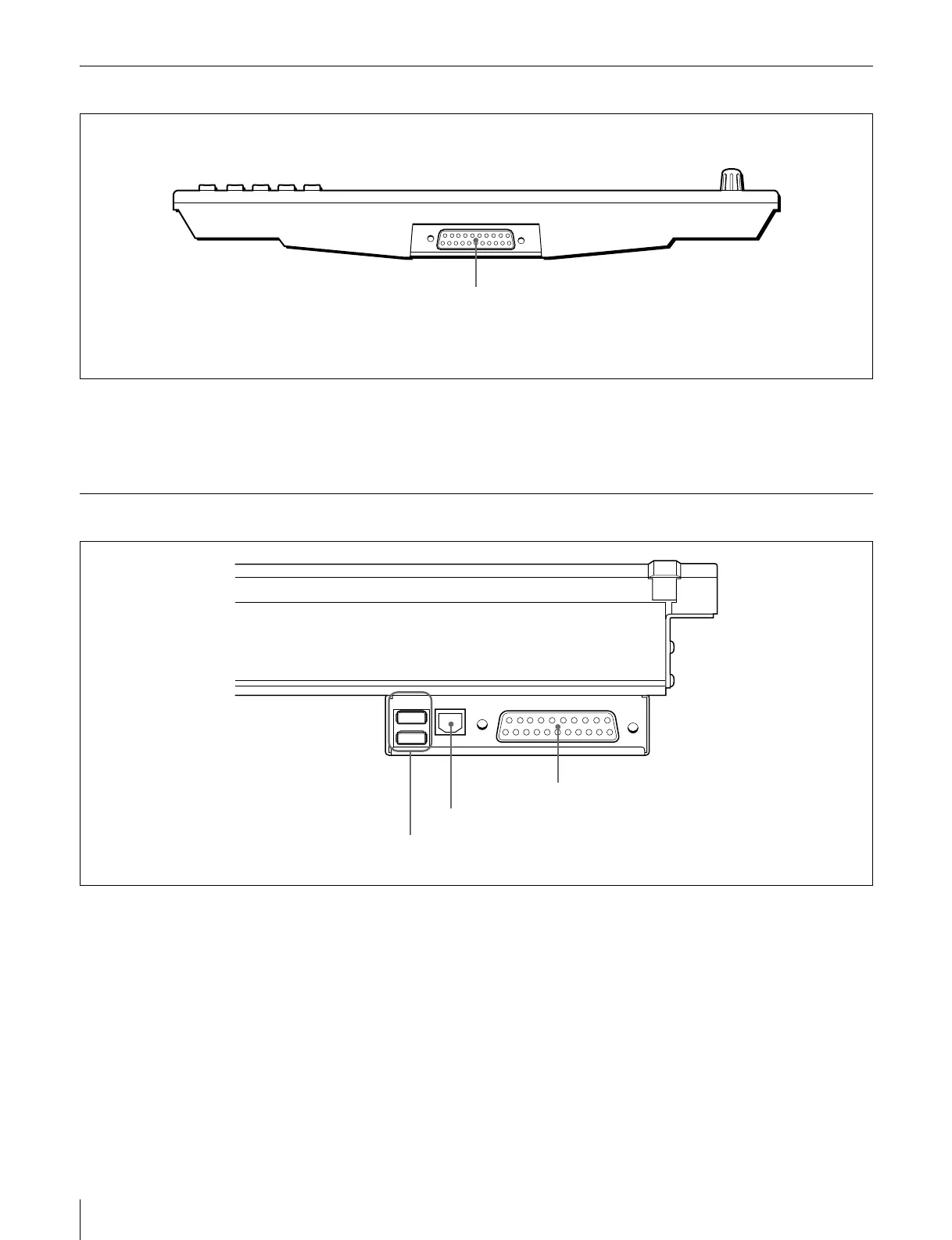

SCU connector
HOSTDEVICE
SCU
1SCU connector
2HOST connector
3DEVICE connectors
