22
Adjusting Fader Torque / Power Supply Unit Status Indicators

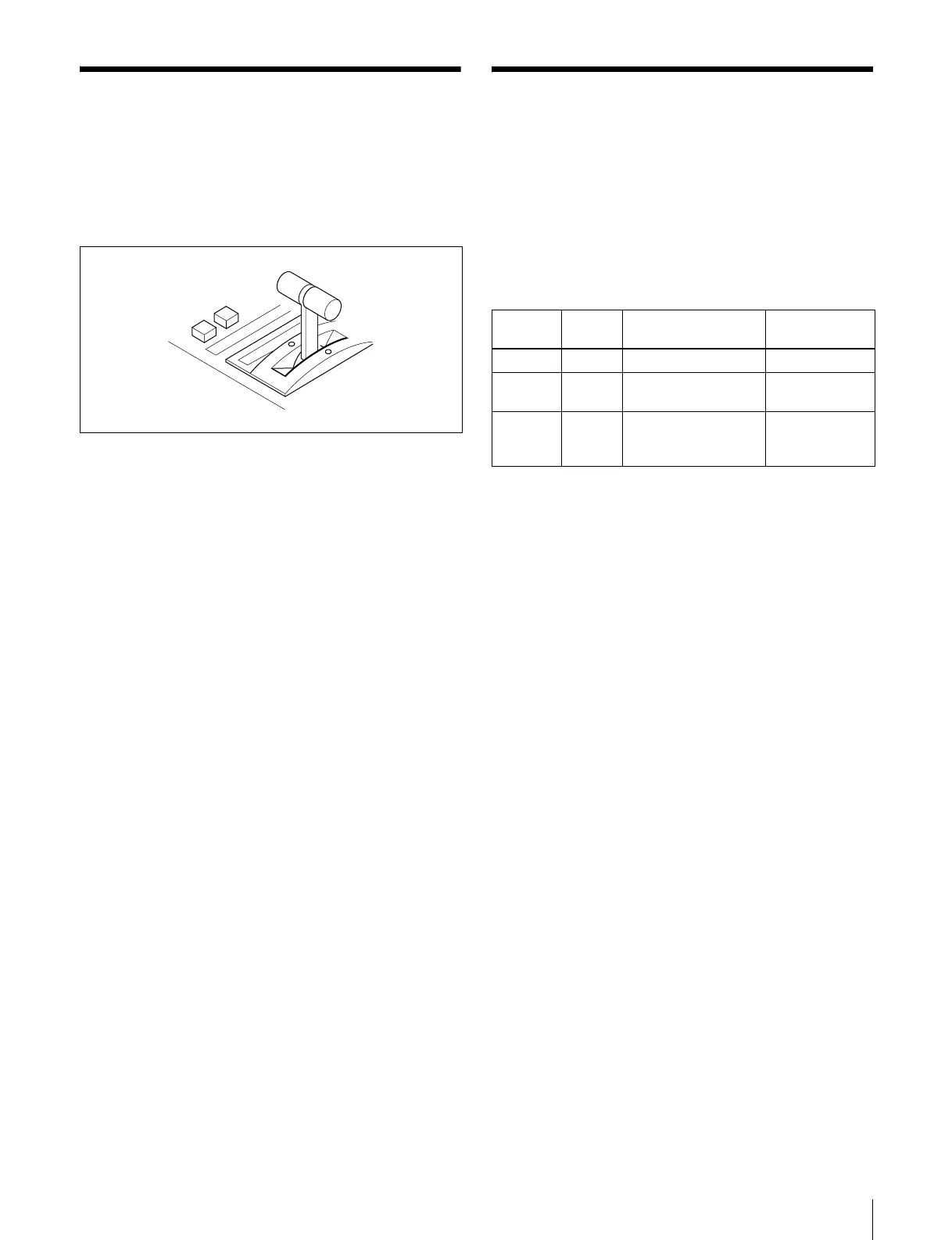

Adjusting Fader Torque
You can adjust faders without removing them from the
center control panel or operation modules.
Proceed as follows to adjust faders.
1
Pull the fader lever to an upright position between the
two holes on the fader cover.
2
Insert a hexagonal screwdriver or a hexagonal wrench
(2.5 mm sides) into one or both of the holes and rotate
to adjust the torque. (For a single fader, adjust the
right side hole only. For a split fader, adjust both the
left and right holes.)
Rotate clockwise:
Fader lever operation becomes firmer.
Rotate counterclockwise:
Fader lever operation becomes freer.
Single fader modules
MKS-8020 Standard Transition Module
MKS-8030 Key Frame Module
MKS-8032 DSK Fader Module
MKS-8027 Compact Transition Right Module
MKS-8028 Compact Transition Left Module
Split fader modules
MKS-8021 Simple Transition Right Module
MKS-8022 Simple Transition Left Module
Power Supply Unit Status
Indicators
The power supply unit status indicators show the status of
the power supply unit during operation and when the unit
is powered on. Whenever a power error is detected, it is
reflected immediately by the indicator.
Meaning of status indicator displays
Indicator
color
Status Description Steps to take
Green Lit Operating normally −
Red LIt Power supply unit fan
fault
Exchange the
fan unit
− Not lit Power supply unit
fault
Exchange the
power supply
unit
