15

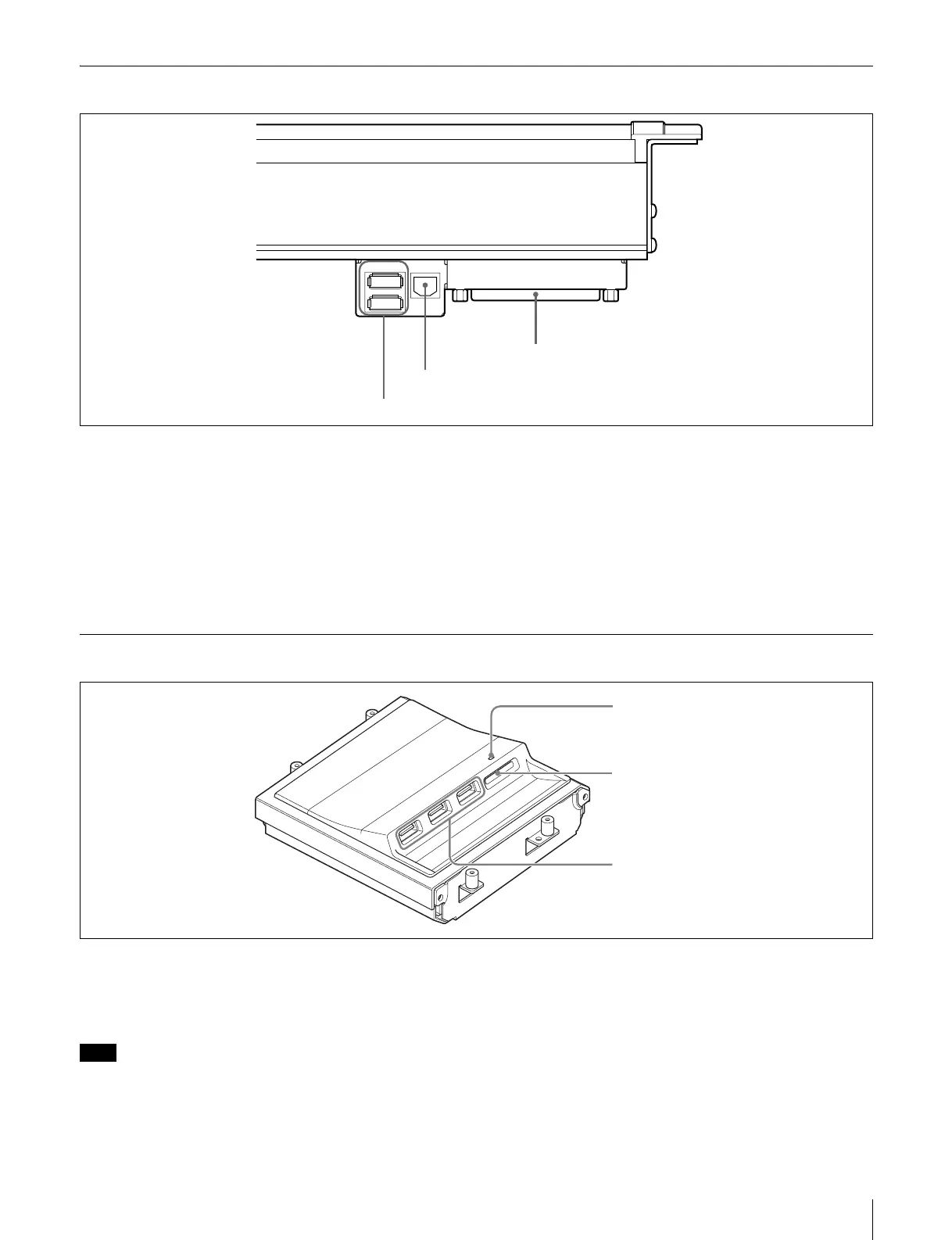

Location and Function of Parts
AUX Panel
a SCU (system control unit) connector (D-sub 50-pin,
special interface)
Connect to one of the EXT PANEL 1 to 3 connectors of the
MKS-8010/8010A System Control Unit.
b HOST connector (USB Type B)
Connect to the DEVICE connector of the MKS-8010/
8010A System Control Unit.
c DEVICE connectors (USB Type A)
Connect to external devices with USB connectors.
For connectable devices, contact your Sony service
representative.
MKS-8025MS Memory Stick/USB Module
a Status indicator
Data is being read from or written to a “Memory Stick”
when the status indicator is lit or flashing.
Note
Do not power the unit off or remove a “Memory Stick”
when the status indicator is lit or flashing.
b Memory Stick slot
A slot to insert “Memory Sticks”.
See “About Memory Sticks” (page 23) for more
information about “Memory Sticks”.
HOSTDEVICE
SCU
1SCU connector
2HOST connector
3DEVICE connectors
1Status indicator
2Memory Stick slot
3DEVICE connectors
