DCR-HC39E/HC41/HC42/HC42E/HC43/HC43E
HELP
HELP

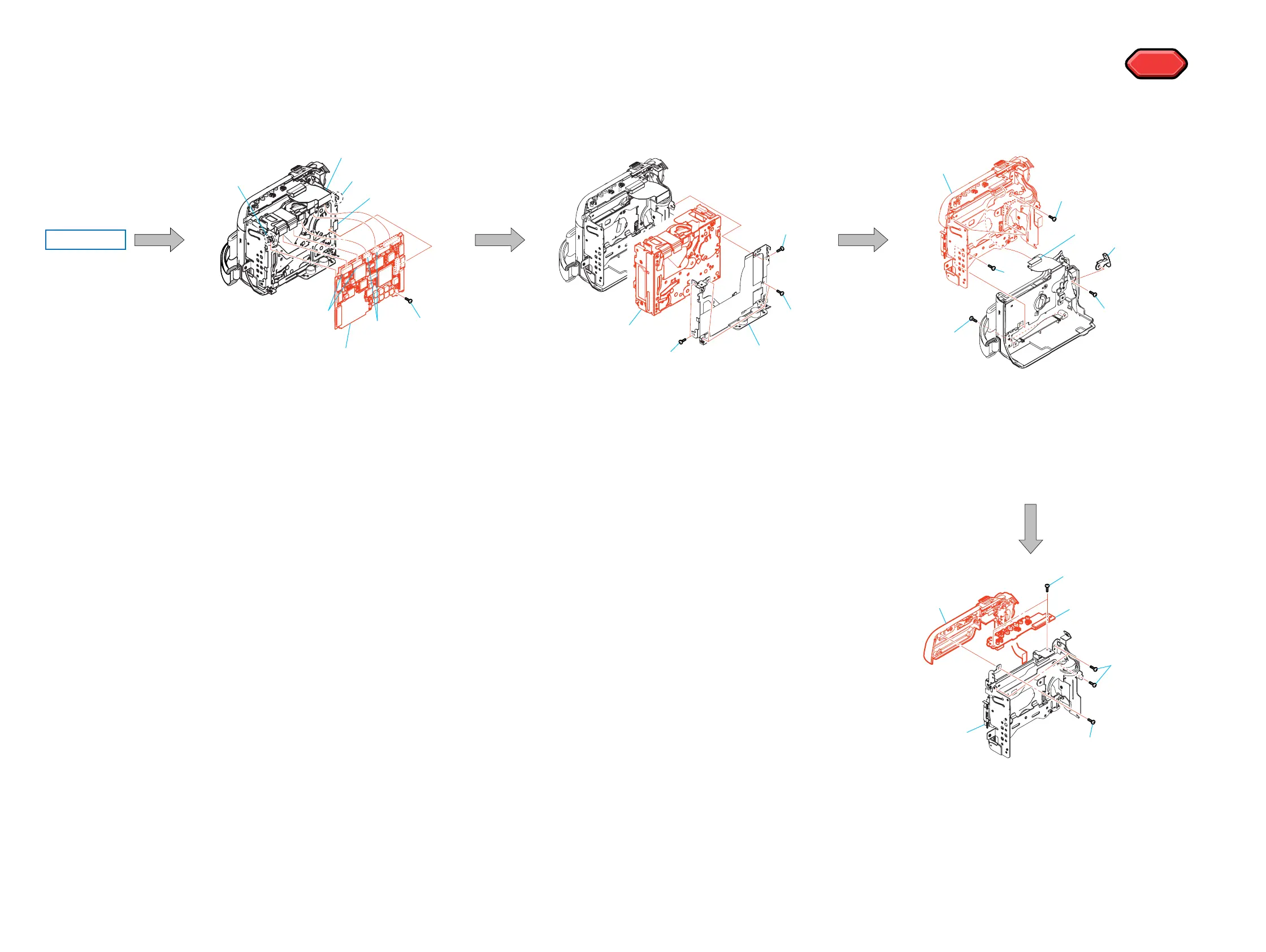

2-3 2-4
1 P2 tapping screw
x3
2 P2 lock ace screw (M1.7)
x1
3 Control key block (SS10300)
4 P2 lock ace screw (M1.7)
x2
5 CS frame block
6 JK-278 board
1 Flexible board: CN1001
2 Connector
x2
: CN6002, 6003
3 P2 lock ace screw (M1.7)
x1
4 Connector
x2
: CN4301, 6001
5 FP-182 flexible board: CN1008
6 Hook
x2
7 VC-378 board
1 P2 lock ace screw (M1.7)
x3
2 Screw (M1.4x1.5)
x4
3 MD frame block
4 Mechanism deck
1 Flexible board: CN704
2 P2 lock ace screw (M1.7)
x1
3 Eject knob
4 P2 lock ace screw (M1.7)
x1
5 Tapping screw
x3
6 P2 lock ace screw (M1.7)
x2
7 CS block
1
5
6
6
7
2
3
4
1
1
2
3
4
2
6
7
1
4
5
3
1
2
4
6
5
3
from Page 2-2
To Next Page
