5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-HC39E/HC41/HC42/HC42E/HC43/HC43E

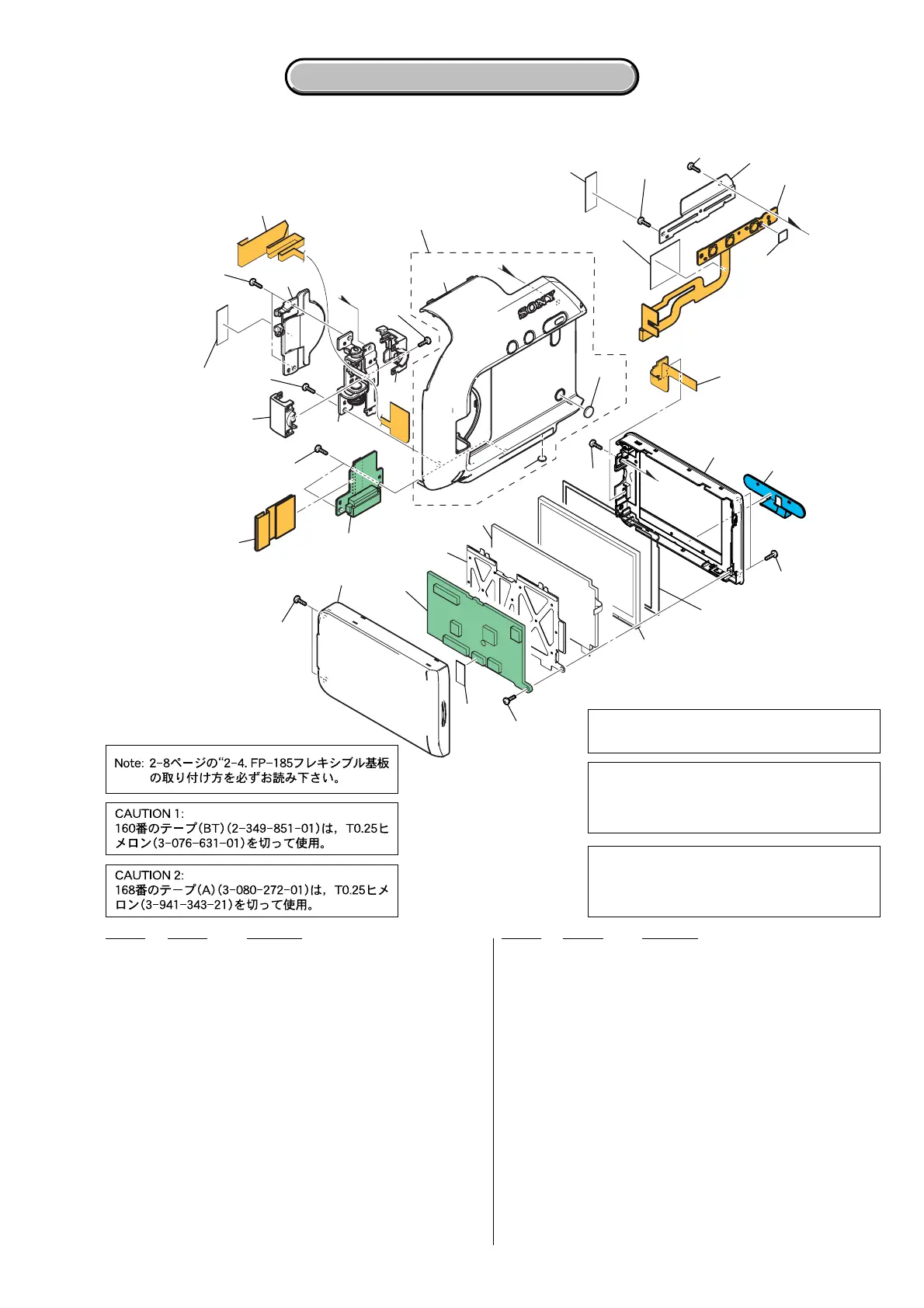

5-1-4. CABINET (R) BLOCK
Ref. No. Part No. Description Ref. No. Part No. Description
151 1-864-764-11 FP-190 FLEXIBLE BOARD
152 A-1081-704-A CR-050 BOARD, COMPLETE
153 3-080-204-21 SCREW, TAPPING, P2
154 2-188-434-01 COVER (C), HINGE
155 3-078-889-21 SCREW (M1.7)
156 X-2023-771-1 HINGE (103) ASSY
157 2-188-476-01 BLIND, HINGE
158 3-078-890-11 SCREW, TAPPING
159 2-188-433-01 COVER (M), HINGE
160 CAUTION 1 TAPE (BT)
161 A-1082-203-A FP-187 FLEXIBLE BOARD
162 X-2024-695-1 CABINET R ASSY (EXCEPT HC41)
162 X-2024-696-1 CABINET R ASSY (HC41)
163 A-1082-042-A FP-186 FLEXIBLE BOARD
164 1-478-984-11 KEY BLOCK, CONTROL (SB10600)
165 2-188-437-01 CUSHION (106), PANEL
166 X-2024-704-1 CABINET (M) (106) ASSY, P (EXCEPT HC41)
166 X-2024-705-1 CABINET (M) (106) ASSY, P (HC41)
167 A-1081-853-A PD-238 BOARD, COMPLETE
168 CAUTION 2 TAPE (A)
169 2-349-514-01 CABINET (C (106)), P (HC42)
169 2-349-514-11 CABINET (C (106)), P (HC42E)
169 2-349-514-21 CABINET (C (106)), P (HC43)
169 2-349-514-31 CABINET (C (106)), P (HC43E)
169 2-349-514-41 CABINET (C (106)), P (HC39E)
169 2-349-514-51 CABINET (C (106)), P (HC41)
170 3-085-397-01 SCREW
171 1-864-761-11 FP-185 FLEXIBLE BOARD
172 2-593-937-01 FOOT (RR), RUBBER
173 3-089-565-01 CUSHION (R), PANEL
D901 1-478-990-11 BLOCK, LIGHT GUIDE PLATE (2.7)
LCD901 A-1083-763-A TP BLOCK ASSY 27STGU
ns: not supplied
CAUTION 1 :
For the part of 160 : TAPE (BT) (2-349-851-01), cut
WOVEN (T0.25), FABRIC NON (3-076-631-01) into
the desired length and use it.
CAUTION 2 :
For the part of 168 : TAPE (A) (3-080-272-01), cut
WOVEN (T0.25), FABRIC NON (3-941-343-21) into
the desired length and use it.
P
D
-238
LCD901
D901
ns
ns
ns
ns
ns
ns
151
152
158
158
155
154
153
158
153
156
157
153
171
(Note)
159
160
(19mm X 19mm)
158
161
170
162
173
163
153
164
172
166
167
165
168
(9mm X 28mm)
169
Note: Be sure to read “2-4. The Method of Attach-
ment FP-185 Flexible Board” on page 2-8.
To Next Page
