5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DCR-HC39E/HC41/HC42/HC42E/HC43/HC43E

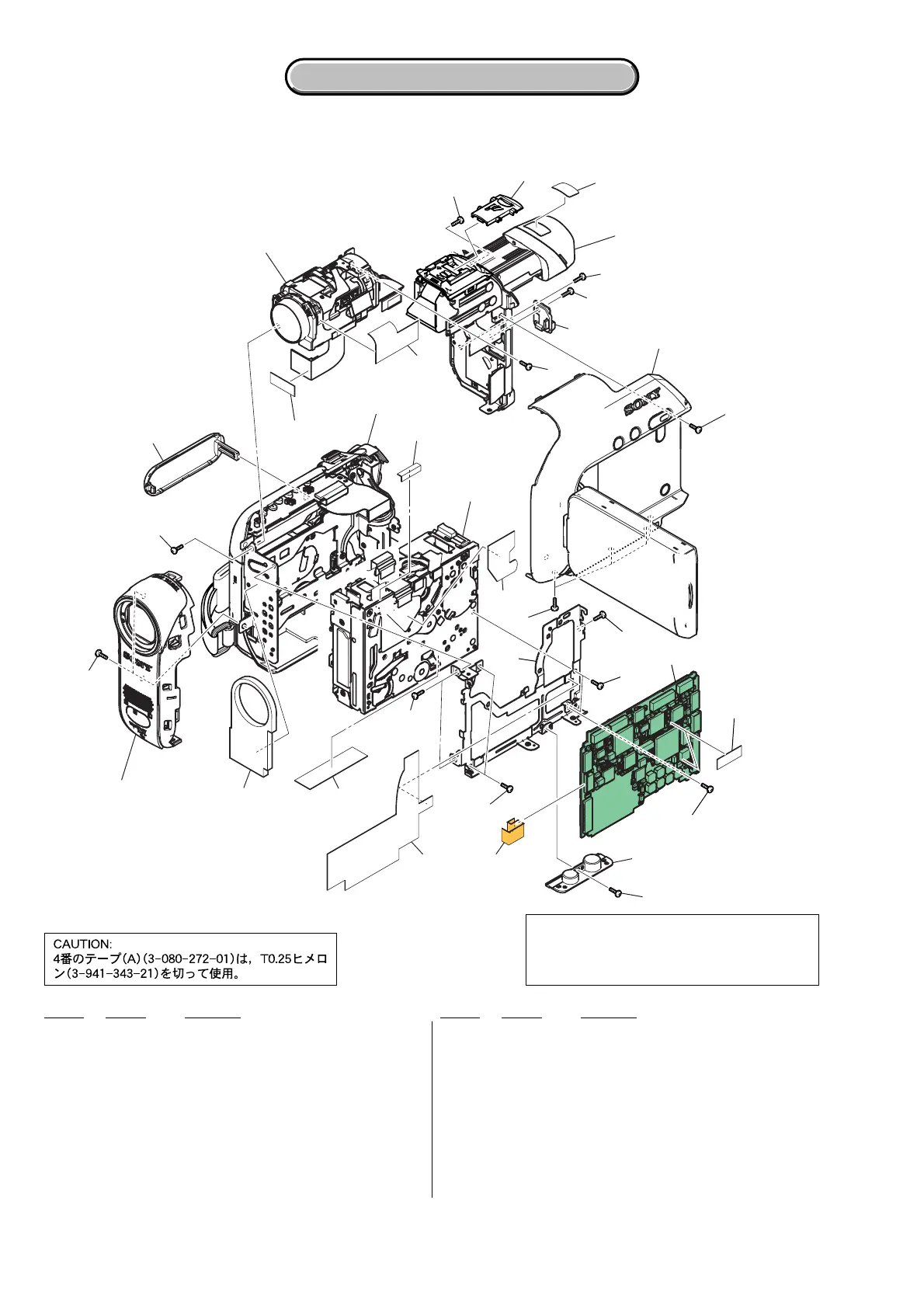

5-1-1. OVERALL ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
1 3-078-889-31 SCREW (M1.7)
2 3-080-198-11 SCREW (M1.7), LOCK ACE, P2
3 2-188-477-01 COVER, JACK
4 CAUTION TAPE (A)
5 2-188-484-01 COVER (106), SHOE
6 2-188-478-01 LID, CPC
7 A-1101-191-A VC-378 BOARD, COMPLETE (SERVICE)
(HC39E)
7 A-1101-199-A VC-378 BOARD, COMPLETE (SERVICE)
(HC41/HC42/HC43)
7 A-1101-200-A VC-378 BOARD, COMPLETE (SERVICE)
(HC42E/HC43E)
8 X-2023-772-1 FRAME ASSY, MD
9 3-080-204-21 SCREW, TAPPING, P2
10 3-089-520-01 SCREW
11 3-080-198-31 SCREW (M1.7), LOCK ACE, P2
12 3-062-214-01 SCREW (M1.4X1.5)
13 3-081-221-01 LABEL (Z), LS
14 1-829-774-11 CABLE, FLEXIBLE FLAT (FFC-038)
15 3-089-544-01 LABEL, VF
5-1. EXPLODED VIEWS
ns: not supplied
CAUTION :
For the part of 4 : TAPE (A) (3-080-272-01), cut
WOVEN (T0.25), FABRIC NON (3-941-343-21) into
the desired length and use it.
VC-378
ns
ns
ns
ns
ns
ns
cabinet (R) block assembly
(See Page 5-5)
Mechanism deck
(See Page 5-8)
F panel block assembly
(See Page 5-3)
CS block assembly
(See Page 5-6)
Lens block assembly
(See Page 5-4)
BAT EVF block assembly
(See Page 5-7)
1
1
2
2
3
4
(9mm X 28mm)
5
15
6
9
2
2
1
11
7
8
14
13
10
12
2
2
2
12
