252
1 Focus ring (p. 75)
2 Lens
3 Lens hood
4 HOLOGRAM AF emitter (p. 148)
5 MIC jack (PLUG IN POWER) (red)
Connect an external microphone
(optional). This jack also accepts a
“plug-in-power” microphone.
Be sure to use the ECM-S80 for the
external microphone.
6 MIC jack cover
7 Camera recording lamp (p. 25)
8 Display window (p. 16)
9 INDEX button (p. 86)
q; FOCUS switch (p. 75)
qa PUSH AUTO button (p. 75)
qs FADER button * (p. 56)
qd Microphone
qf Infrared rays emitter (p. 104)
qg Remote sensor
* The FADER button has a tactile dot for easy operation.
Removing the lens hood
To remove the lens hood to attach the optional wide teleconversion lens filter, etc.,
unscrew the lens hood counterclockwise. To attach the lens hood again, align the
protrusions on the lens hood with the groove on the lens and screw the lens hood
clockwise.
When using additional filters
Shading may occur on the recorded image due to the lens hood.
— Quick Reference —

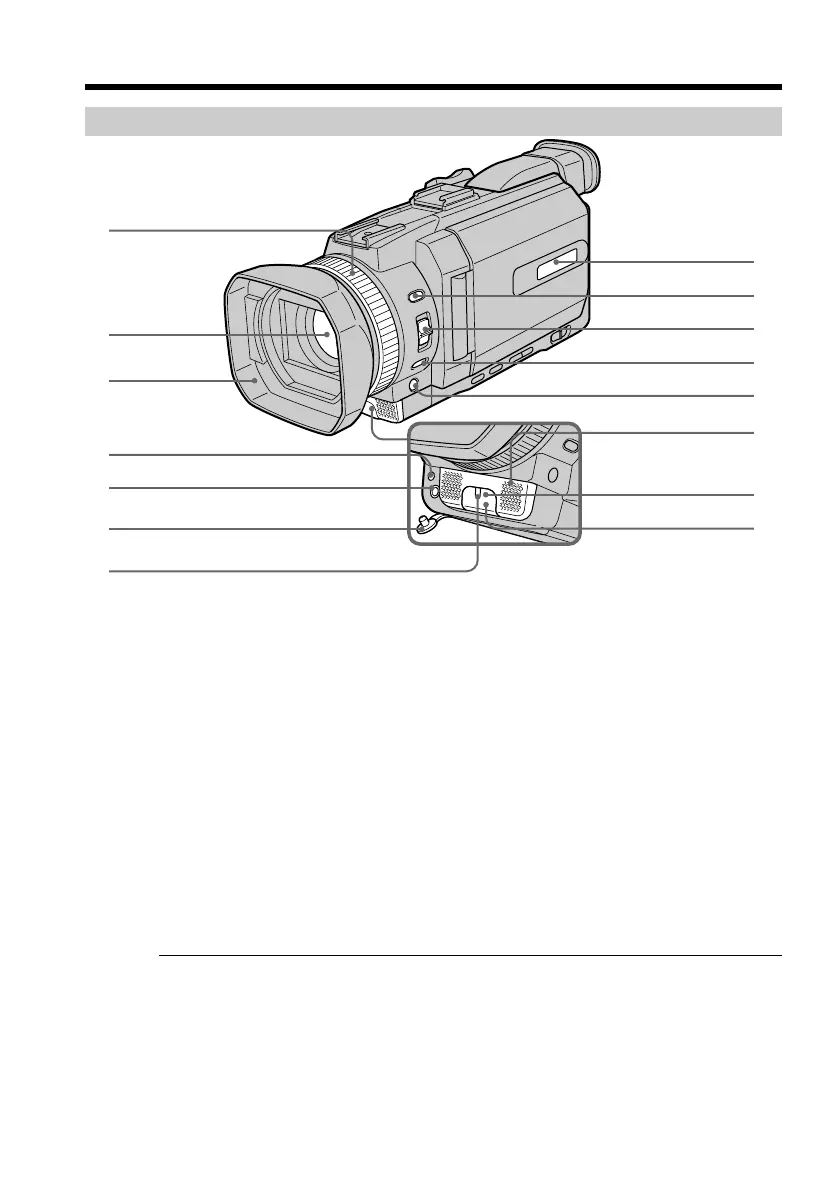

Identifying parts and controls
Camcorder
1
2
3
4
5
6
7
qg
qf
qd
qa
qs
9
0
8
