15
Getting Started
Step 3: TV Hookups

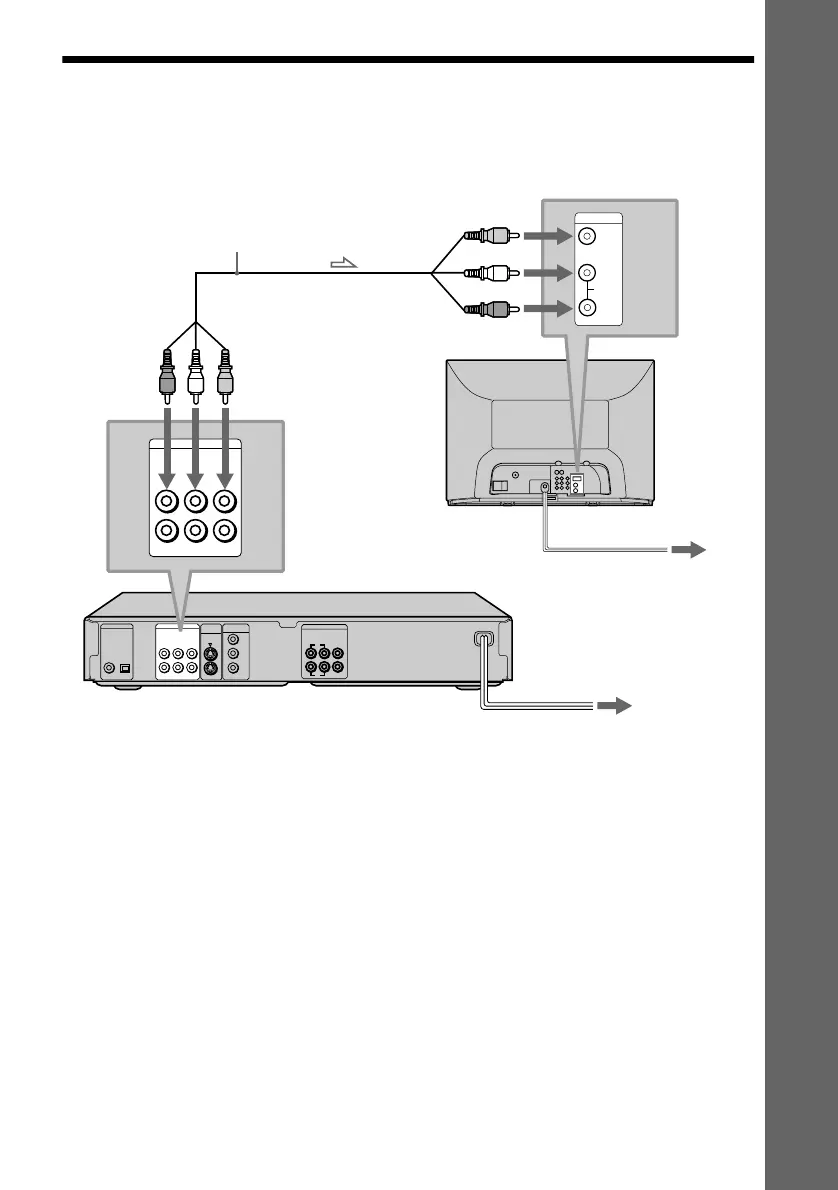

Connect the supplied audio/video cord and power cord in the order (1~3) shown below. Be
sure to connect the power cord last.
When connecting to a wide screen TV
Depending on the disc, the image may not fit your TV screen.
If you want to change the aspect ratio, please refer to page 67.
PCM/DTS/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL
OPTICAL
R-AUDIO 1-L VIDEO 1
Y
P
B
P
R
R-AUDIO 2-L VIDEO 2
DIGITAL OUT
LINE OUT
5.1CH OUTPUT
WOOFER
L
R
FRONT REAR CENTER
1
2
R-AUDIO 1-L VIDEO 1
R-AUDIO 2-L VIDEO 2
LINE OUT
VIDEO
AUDIO
INPUT
L
R
(yellow)
(white)
(red)
3 Power source
CD/DVD Player
TV
2 Power source
l: Signal flow
to video input
to LINE OUT
L/R (AUDIO) 1
1 Audio/video
cord (supplied)
to audio input
to LINE OUT (VIDEO) 1
To Next Page
