Sony DVP-NS400D User Manual

Hookups
17
Hookups
Hooking Up the Player
Follow Steps 1 to 4 to hook up and adjust the settings of the player.
Before you start, turn off the power, check that you have all of the supplied accessories, and insert
the batteries into the remote (page 14).
Notes
• Plug cords securely to prevent unwanted noise.
• Refer to the instructions supplied with the components to be connected.

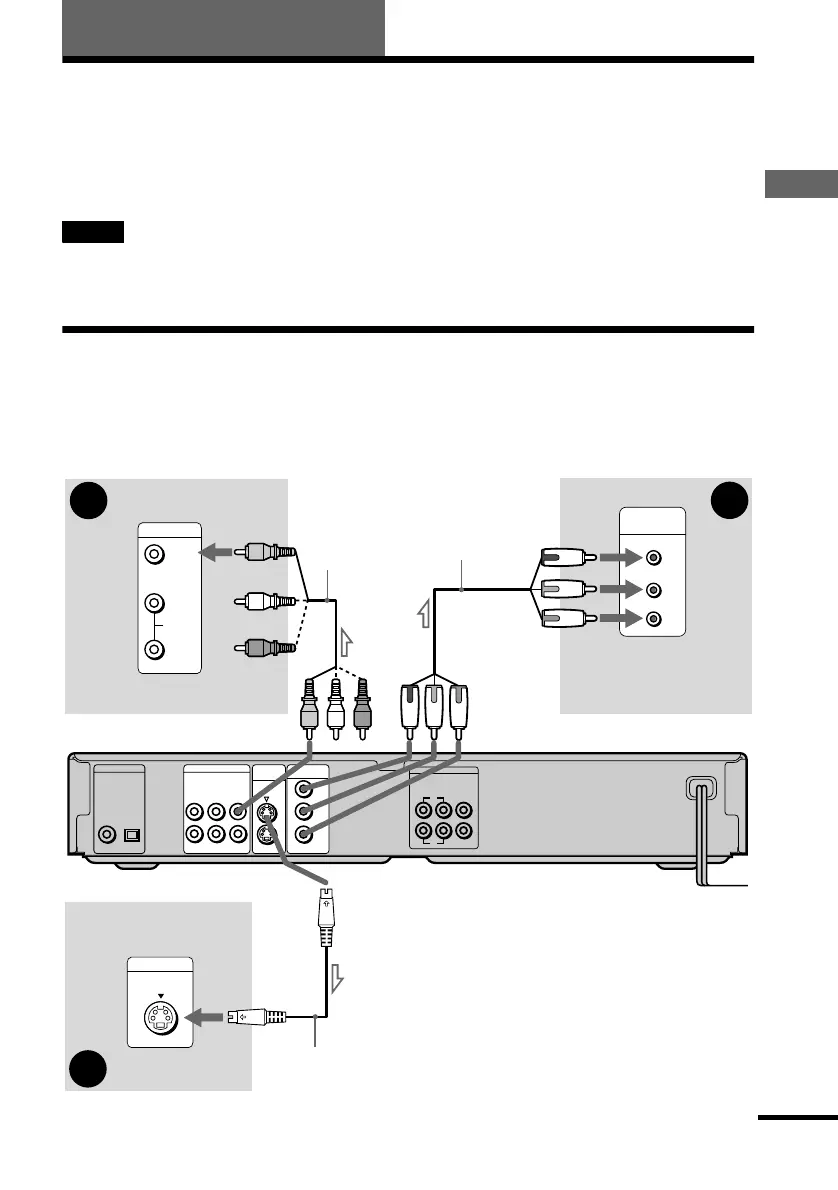

Step 1: Connecting the Video Cords
Connect this player to your TV monitor, projector or, AV amplifier (receiver) using a video cord.
Select one of the patterns A through C, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver).
INPUT
S VIDEO
B
PCM/DTS/
DOLBY DIGITAL
S VIDEO
OUT
COMPONENT
VIDEO OUT
COAXIAL OPTICAL
R-AUDIO 1-L VIDEO 1
Y
P
B
P R
R-AUDIO 2-L VIDEO 2
DIGITAL OUT LINE OUT
P R
P B
Y
COMPONENT
VIDEO IN
C
AUDIO
INPUT
L
R
A
5.1CH OUTPUT
WOOFER
L
R
FRONT REAR CENTER
1
2
VIDEO
CD/DVD player
TV, projector or AV
amplifier (receiver)
l : Signal flow
Audio/video
cord (supplied)
(yellow)
(yellow)
Component video
cord (not supplied)
S VIDEO cord
(not supplied)
TV, projector or AV
amplifier (receiver)
TV, projector or AV
amplifier (receiver)
continued
